Central-impression flexo press for PP woven fabric and extensible film—printing speed 50–250 m/min with ±0.15 mm longitudinal and transverse registration. 4+4 colors (front 4, back 4), laser-engraved ceramic anilox rollers and 100mm vibration-free cast-iron frame.
Printing Speed
Max Printing Width

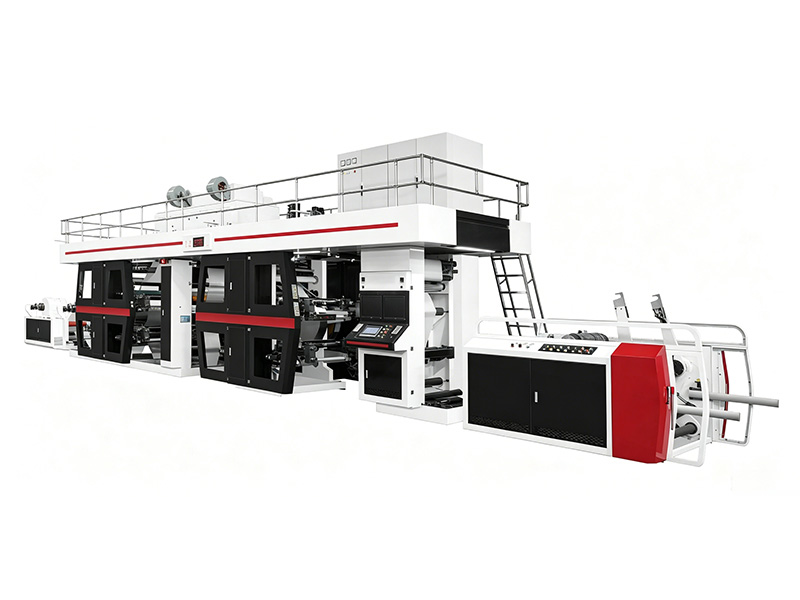

This satellite (central impression, CI) flexo printing machine is engineered for high-speed, high-precision printing of PP woven fabric and extensible film. All printing decks are arranged around a single Φ800 mm central drum, so the web is fully supported during printing—this greatly improves color registration, especially on stretchable materials.
The 4+4 color configuration prints 4 colors on the front and 4 colors on the back in one pass, ideal for premium double-sided printed bags. Key features include servo-motor gear drives, laser-engraved ceramic anilox rollers, Danish-technology chamber doctor blades with dual-cycle ink pumps, and a video inspection system for on-screen quality control.
Engineered for stability and precision: a 100mm vibration-free cast-iron frame, hydraulic locking of print cylinders for rigid running at top speed, motorized longitudinal and transverse registration with PLC control, and PID temperature-controlled electric drying with ±2°C accuracy.
Suitable Material: PP woven fabric, extensible film; water-based or solvent ink.
| Models | |
| Parameter | Value |
| Model | HSCH-CHCI-800/4+4 colors |
| Printing Decks | 4+4 (4-color front, 4-color back) |
| Max Roll Width | 850 mm |
| Max Printing Width | 760 mm |
| Printing Repeat | 500 – 1,100 mm |
| Max Mechanical Speed | 300 m/min |
| Max Printing Speed | 50 – 250 m/min |
| Registration Precision | Vertical: ±0.15 mm / Horizontal: ±0.15 mm |
| Performance & Quality | |
| Parameter | Value |
| Central Drum | Φ800 mm, constant-temp water cooling |
| Ink | Water-based or oil-based |
| Printing Plate | Resin or rubber |
| Plate Thickness | 1.14 mm |
| Doctor Blade | Chamber, with ink pump |
| Anilox Roller | Laser-engraved ceramic, 8 pcs |
| Drying | Electric heating, PID ±2°C |
| Main Control | PLC |
| Key Components | |
| Component | Specification |
| Main Motor | SFC (China) |
| Bearing | NSK |
| Inverter | INOVANCE |
| Contactor | Schneider |
| Relay | CHNT |
| EPC System | Bianfu ultrasonic EPC |
| Tension Controller | TRUE ENGIN |
| Touch Screen | MCGS |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Central drum fully supports the web for stable registration.
4+4 colors print both sides in one pass.
100mm cast-iron frame, vibration-free at 250 m/min.
Hydraulic locking keeps registration stable at any speed.
Video inspection screens show quality in real time.
Ceramic anilox + chamber blades + PID drying speed up.
Typical Bags
Double-Sided Color-Printed Cement/Fertilizer Bags
Key Benefits
4+4 single-pass double-sided printing, rich in color
Typical Bags

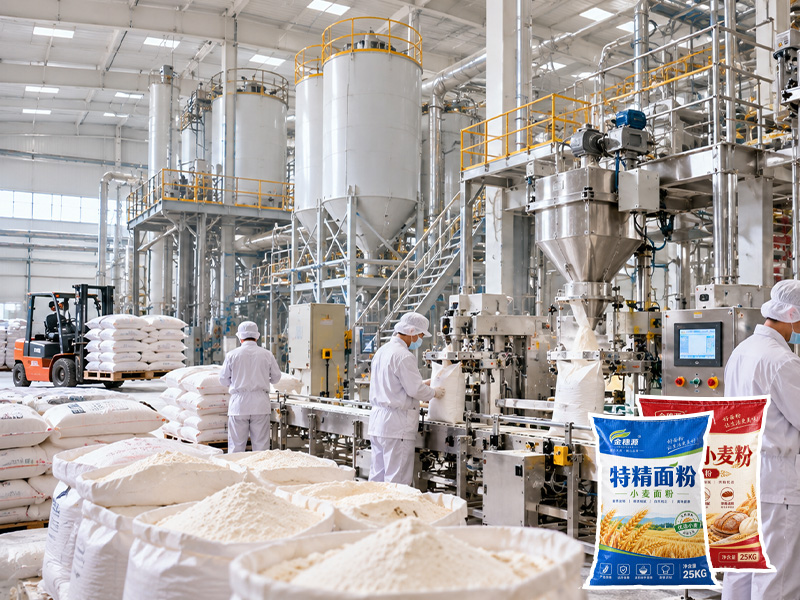

Flour and Grain Bags
Key Benefits
Precise registration, crisp text
Typical Bags

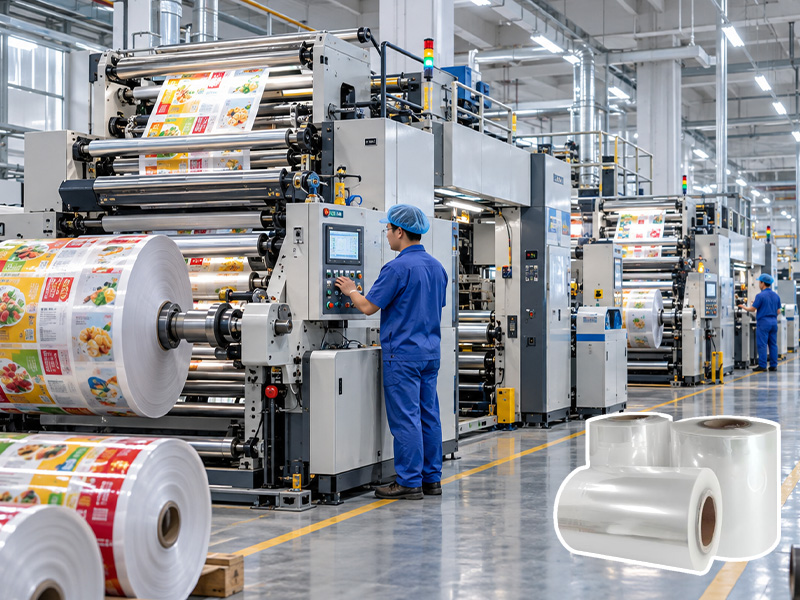

Stretchable Printed Film
Key Benefits
Central roller prevents stretching, ensuring stable registration
Typical Bags

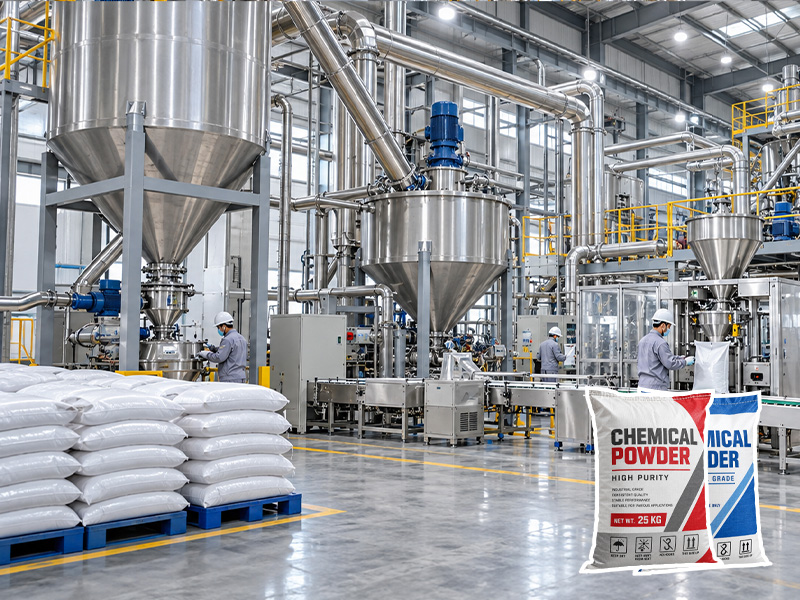

Chemical Powder Bags
Key Benefits
High-speed, high-volume production, with durable ink
Typical Bags

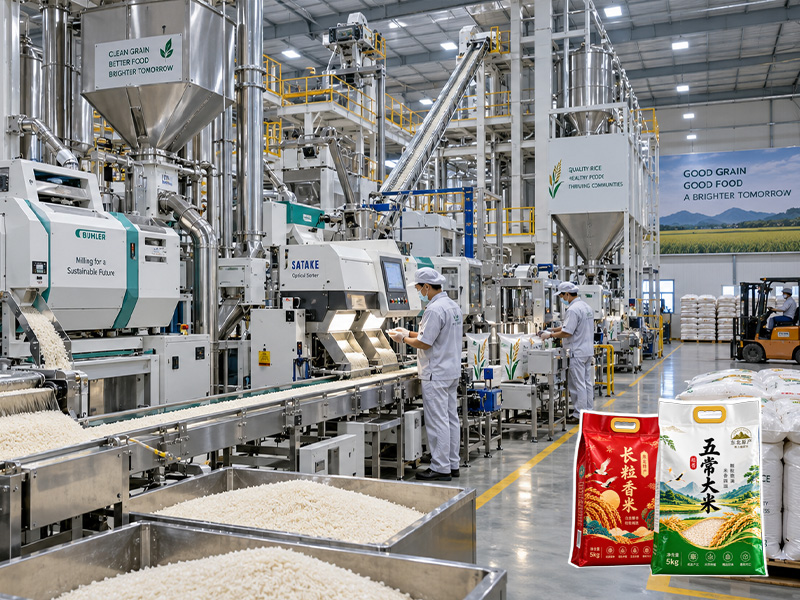

Retail-Grade Color-Printed Bags
Key Benefits
High-definition graphics, outstanding visual appeal

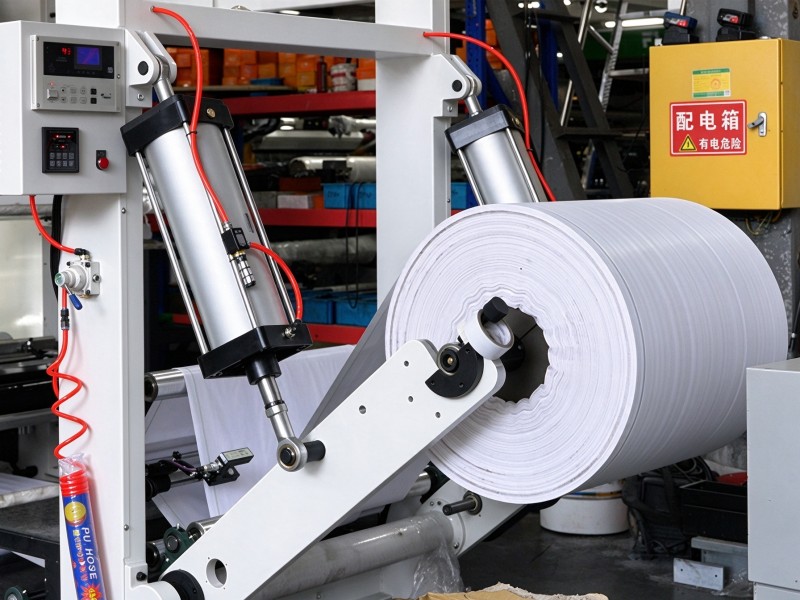

Max Φ1,500mm rolls with central drive and magnetic powder brake; light floating-roller auto tension control with closed-loop compensation; auto stop on material break and EPC ultrasonic web guide (±65mm adjustment).

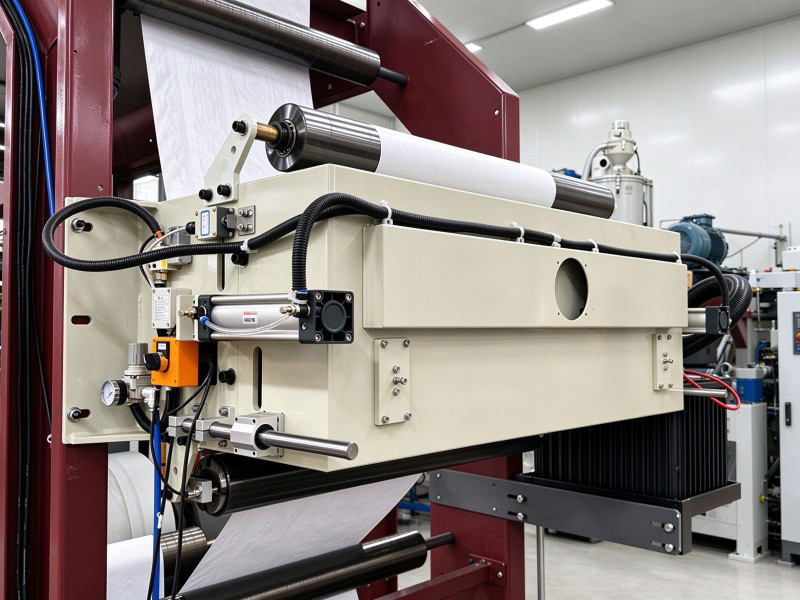

Pre-printing corona treatment increases surface energy for stronger ink adhesion on film and fabric.

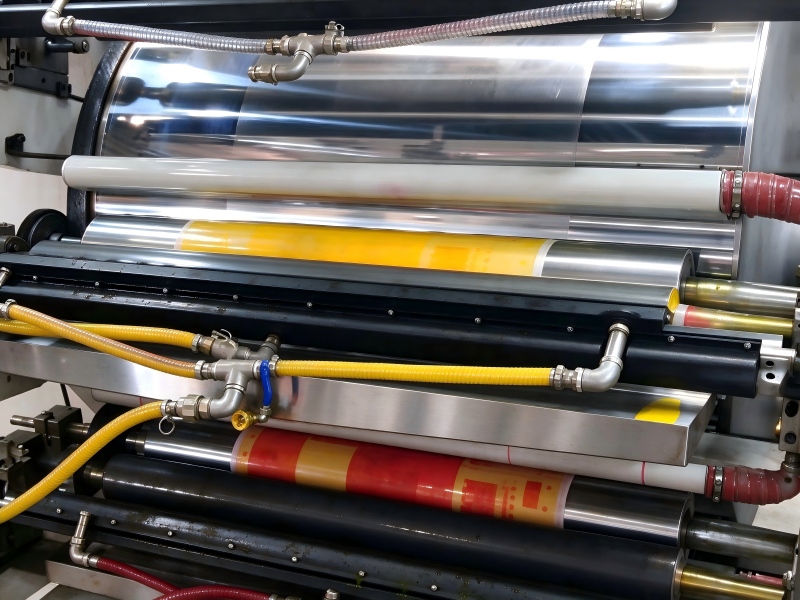

Φ800mm central drum with constant-temperature water cooling supports the web during printing — best registration especially for extensible materials.

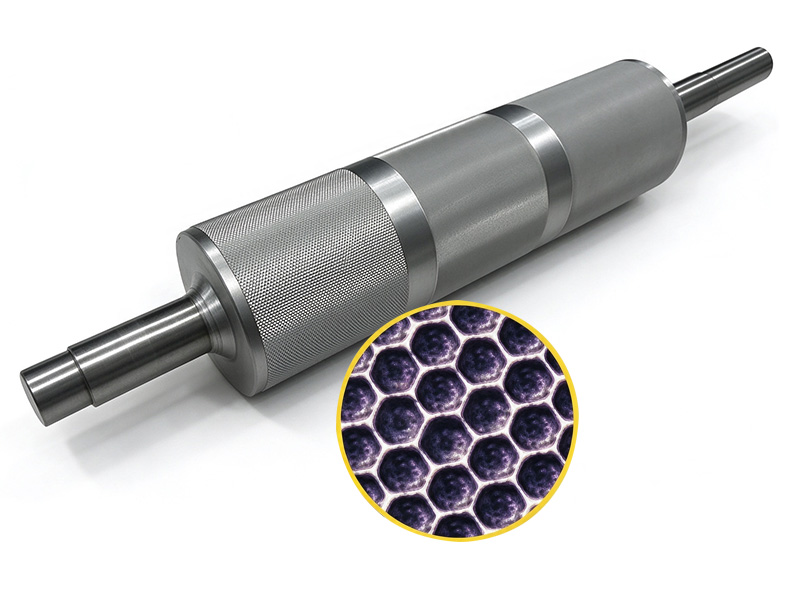

8 pcs laser-engraved ceramic anilox rollers, dynamic balancing 10g, control ink thickness and transfer ink evenly.

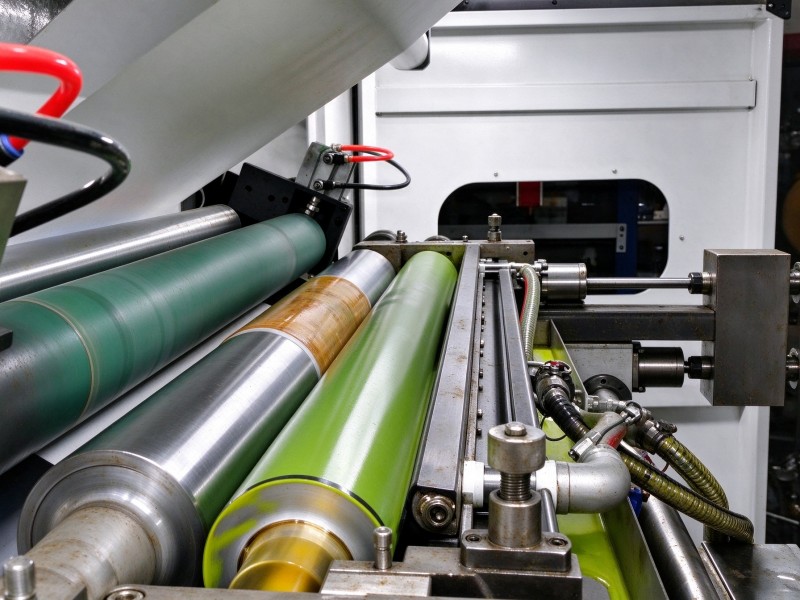

Danish-technology aluminum-alloy chamber doctor blades with dual-cycle ink pumps (8 sets) — no ink spill, even ink, saves ink, prevents splashing at high speed.

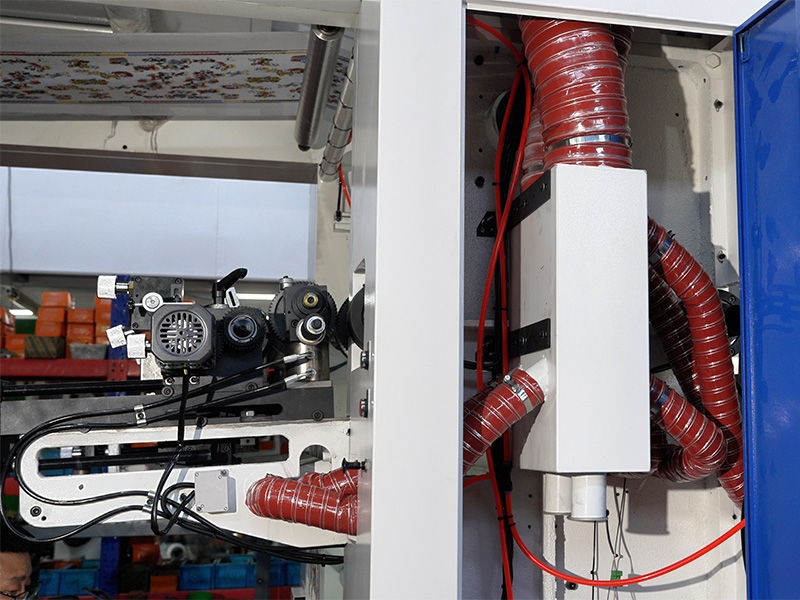

PID temperature-controlled electric heating via circulating airflow, ±2°C accuracy; double-sided blowing with hot-air drying and cold-air setting for fast drying.

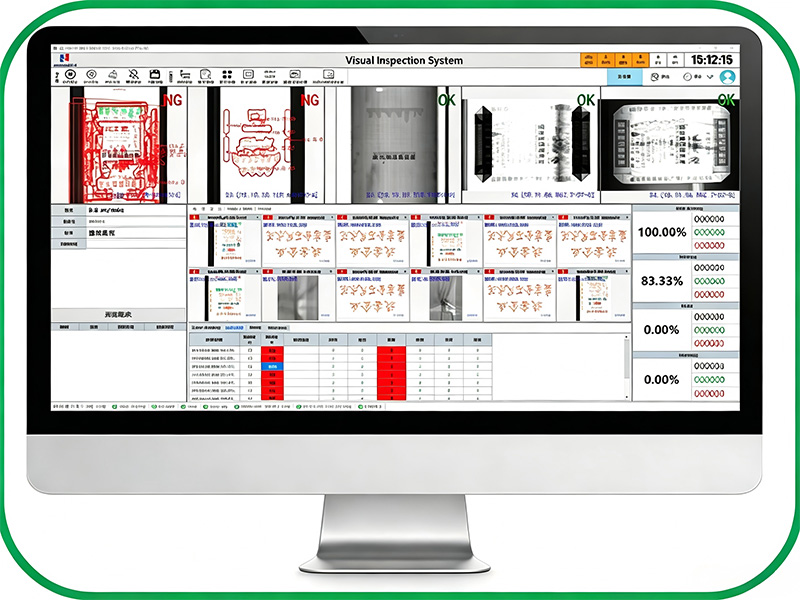

1280×1024 resolution, 3–30× magnification, full-screen display; automatic image capture by PG encoder position signal; fixed-point or automatic scanning inspection.

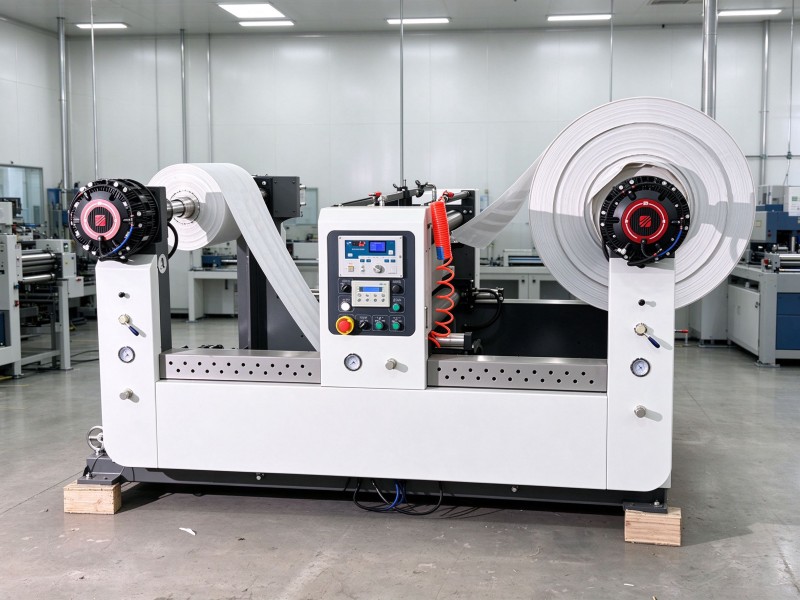

Double-station surface friction winding with servo cutter; super-light floating-roller tension control with taper tension; 8'' air shafts.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Front 4 colors and back 4 colors in a single pass.
Central drum support keeps color stable on extensible film.
100mm cast-iron frame runs steady at 250 m/min.
Hydraulic locking holds registration at any speed.
On-screen inspection catches defects instantly.
Ceramic anilox + chamber blades give even, vivid ink.
±2°C precise control, fast and efficient.
NSK, Schneider, INOVANCE, CHNT — trusted quality.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Roll Width | 850 mm | 850 mm |
| Printing Width | 760 mm | 760 mm |
| Printing Speed | 50 m/min | 250 m/min |
| Printing Repeat | 500 mm | 1,100 mm |
| Plate Thickness | 1.14 mm | 1.14 mm |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
All printing decks are arranged around one central impression drum, which fully supports the web during printing for stable, high-precision registration — ideal for extensible materials.
It prints 4 colors on the front and 4 colors on the back in one pass.
50 to 250 m/min depending on material, repeat, ink and quality requirements.
Longitudinal and transverse both within ±0.15mm, stable at varying speeds.
PP woven fabric and extensible film, with water-based or solvent ink.
Central drum support plus hydraulic locking of cylinders keep registration stable.
A video inspection system displays print quality on screen in real time.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
