Belt-driven stack-type flexo press for PP woven fabric and film rolls—80 m/min printing speed with ±0.2 mm registration. Available in 4-color and 8-color configurations, with ceramic anilox rollers, chamber doctor blades, and a 75 mm steel-plate frame.
Printing Speed
Max Bag Size

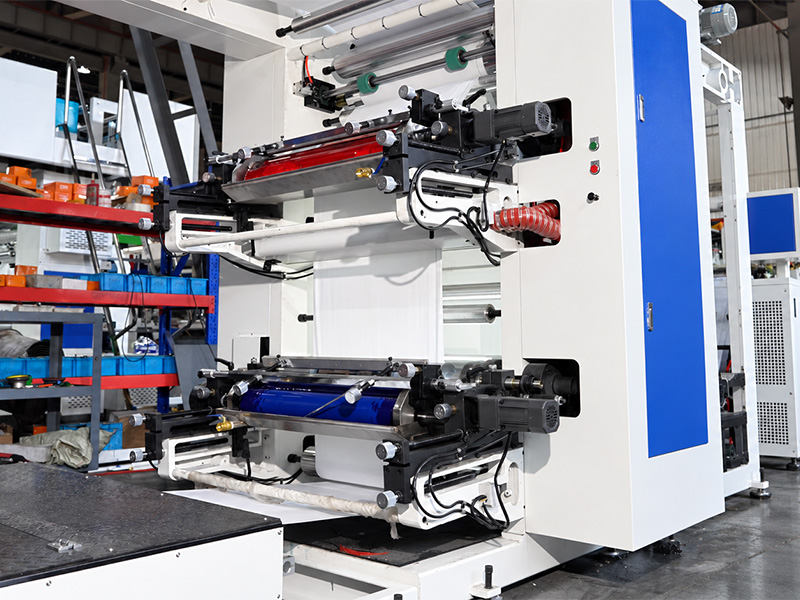

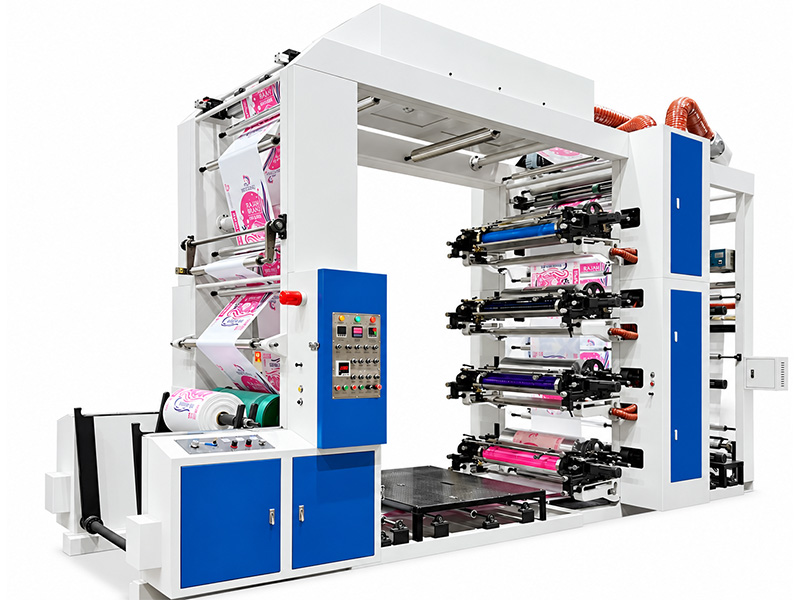

This stack-type flexo printing machine prints PP woven fabric and film rolls with belt-driven, compact printing units stacked vertically—each color unit independent yet sharing one web path. It is widely used for cement, fertilizer, flour, and chemical sacks where clear, multi-color branding matters.
Two models cover your output: the HS-CH4-800J (4 colors: 4+0, 3+1, 2+2) and the HS-CH8-800J (8 colors: 6+2, 5+3, 4+4). Both run at 80 m/min printing speed, print 300–1,350 mm in length with stepless adjustment, and hold registration within ±0.2 mm.
Precision comes from the belt drive, which reduces color-register error; high-quality ceramic anilox rollers control ink thickness and transfer ink evenly; simple plates cut plate cost and changeover time; and lower printing pressure reduces waste while extending roller life. The 75mm steel-plate frame stays vibration-free at high speed.
Suitable Material: PP woven fabric, various thin film reels; water-based or solvent ink.
| Models | |||
| Parameter | HS-CH4-800J | HS-CH8-800J | |
| Printing Colors | 4 (4+0, 3+1, 2+2) | 8 (6+2, 5+3, 4+4) | |
| Max Machine Speed | 120 m/min | 120 m/min | |
| Max Printing Speed | 80 m/min | 80 m/min | |
| Max Web Width | 850 mm | 60–120 850 mmkg/h | |
| Max Printing Width | 760 mm | 760 mm | |
| Printing Length | 300 – 1,350 mm | 300 – 1,350 mm | |
| Registration Tolerance | ≤ ±0.2 mm | ≤ ±0.2 mm | |
| Total Power | 45 kW | 45 kW | |
| Weight | ≈ 6.0 T | ≈ 6.0 T | |
| Machine Size | 8.0 × 2.1 × 3.5 m | 8.0 × 2.1 × 3.5 m | |
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Printing Type | Belt-drive stack type | Anilox Roller | Ceramic, 4/8 pcs |
| Plate Thickness | 1.7 / 2.28 mm（specifiable） | Doctor Blade | Chamber doctor blade |
| Max Unwind/Rewind Dia. | Φ1,200 mm | Plate Lifting | Hydraulic |
| Ink | Water-based or solvent | Bearing | HRB |
| Heating | Electric heating | One-Way Bearing | ASNU (Germany) |
| Drying Power | 30 kW (dual-sided airflow, air-cooled circulation) | Inverter | Delta (Taiwan) |
| Tension Control | ±0.3 kg | Circuit Breaker | CHNT |
| Contactor | ETN (USA) | ||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Belt drive cuts register error—accuracy within ±0.2mm.
Lower pressure reduces waste and lengthens roller life.
Simple plates save plate cost, time and labor.
75mm steel-plate frame stays stable at 80 m/min.
Auto tension controller keeps tension within ±0.3kg.
EPC web guide plus surface rewind keeps rolls aligned.
Typical Bags
Cement sacks
Recommended Model
HS-CH4-800J
Key Benefits
High-volume production, low cost, precise color registration
Typical Bags
Fertilizer bags
Recommended Model
HS-CH4-800J
Key Benefits
Multi-color labels, clear and wear-resistant
Typical Bags
Flour, grain bags
Recommended Model
HS-CH4-800J
Key Benefits
Rich 8-color palette, attractive appearance
Typical Bags
Chemical powder bags
Recommended Model
HS-CH4-800J
Key Benefits
Excellent adhesion, crisp lettering
Typical Bags
Printed film reels
Recommended Model
HS-CH4-800J
Key Benefits
Compatible with film, high precision

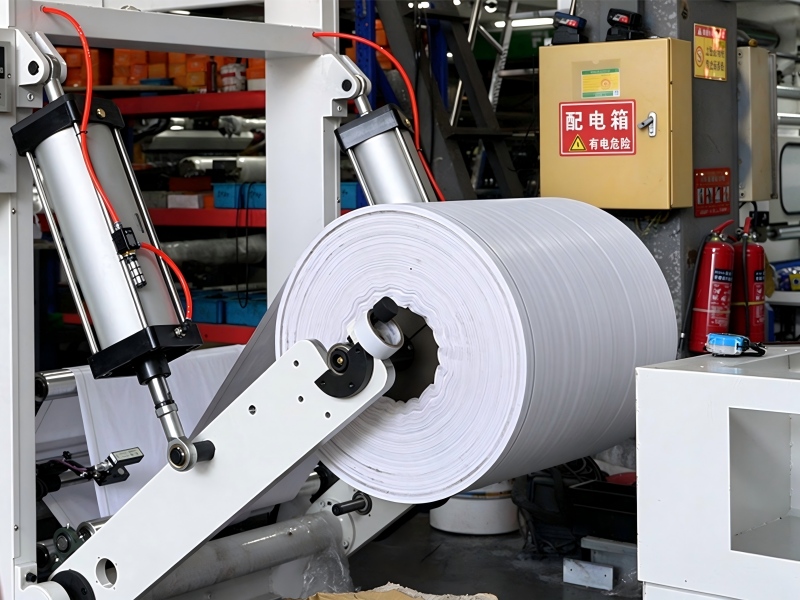

Max Φ1,200 mm rolls with 5kg magnetic powder brake and automatic tension controller; air shaft 3'' holder for quick loading.
Stack-type units driven by belt reduce color-register error; hydraulic plate lifting and mechanical pressure adjustment for precise setting.

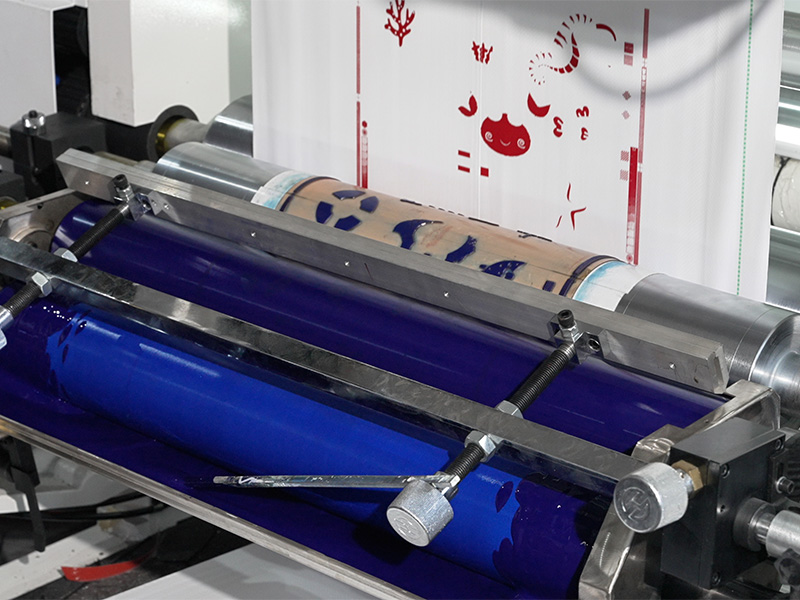

High-quality ceramic anilox rollers (200–800 LPI) control ink thickness and transfer evenly; chamber doctor blades prevent ink spill at speed.

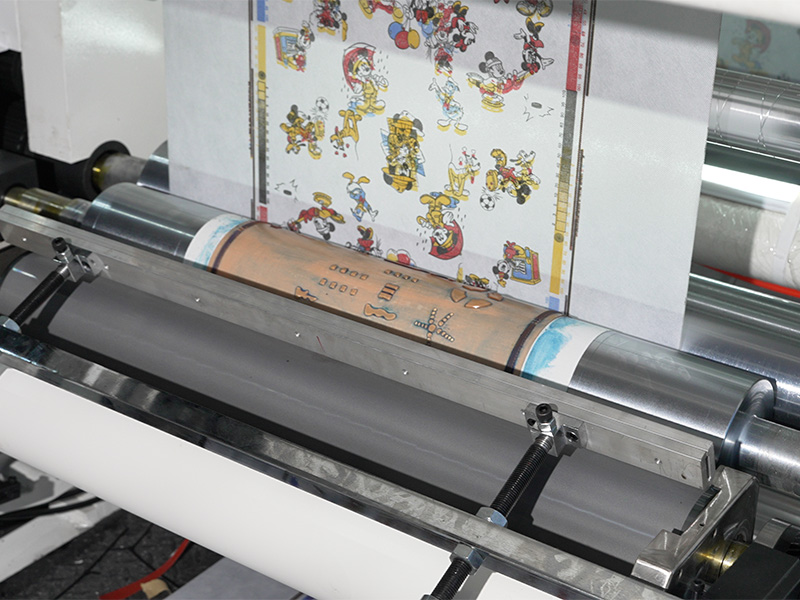

Resin or rubber plates, 1.7/2.28 mm; printing repeat 300–1,350 mm; pre-registered, so start-up needs no re-registering.

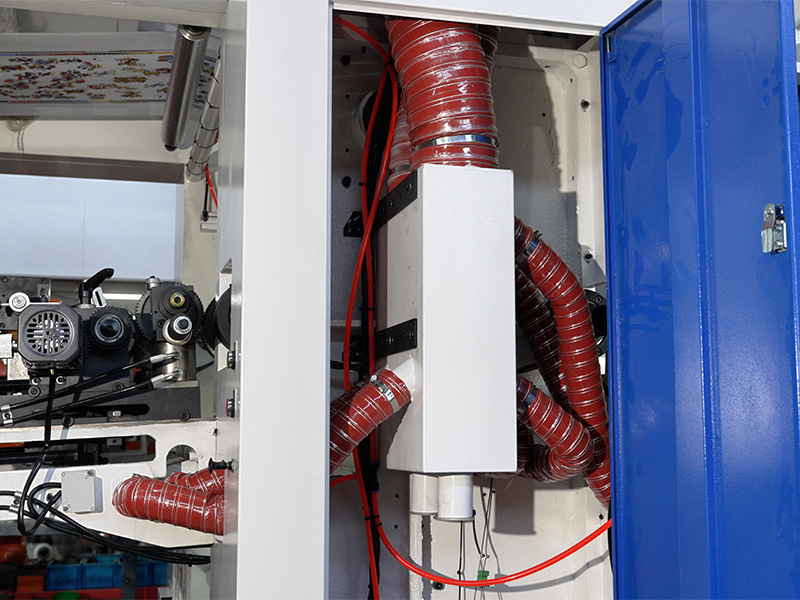

Per-color electric heat drying with double-surface blowing and wind-cooling circulation—fast drying, strong fastness.

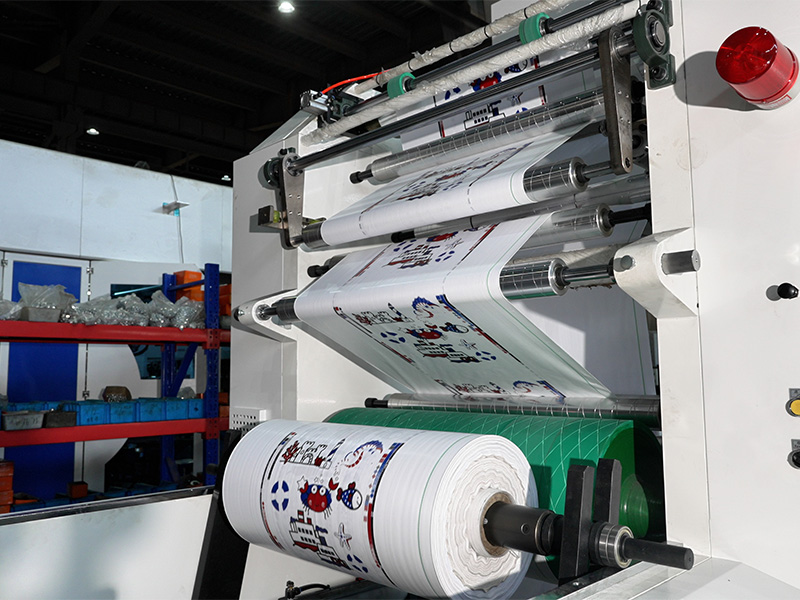

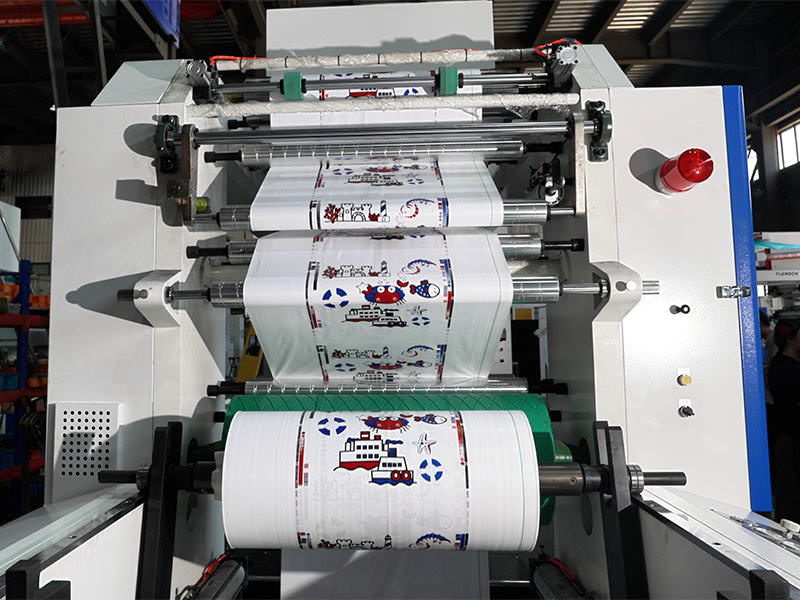

Max Φ1,200 mm surface rewinding with ±0.3 kg tension control and 3'' air shaft; rolls wind tightly and evenly.

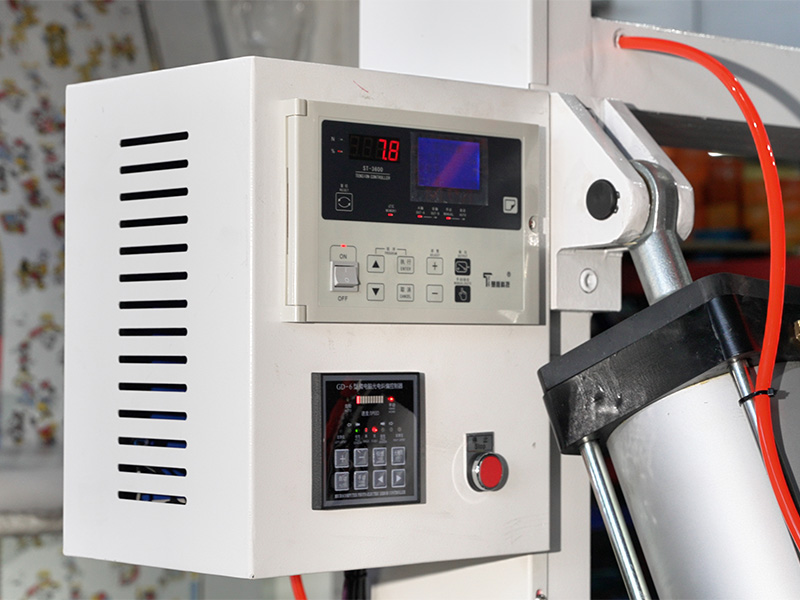

Delta inverter, CHNT breakers, ETN contactors and imported electrical parts ensure stable, safe circuit control.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Belt drive reduces color-register error.
75mm steel-plate frame, no vibration at speed.
Simple plates save time and plate cost.
Lower printing pressure protects rolls and reduces waste.
PP woven fabric and various film reels.
200–800 LPI rollers control ink evenly.
Delta, CHNT, ETN—stable and safe control.
Tension ±0.3kg and real-time web guiding.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Printing Colors | 4 | 8 |
| Printing Speed | 80 m/min | 80 m/min |
| Web Width | 850 mm | 850 mm |
| Printing Width | 760 mm | 760 mm |
| Printing Length | 300 mm | 1,350 mm |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
PP woven fabric and various thin film reels, with water-based or solvent ink.
4-color (4+0, 3+1, 2+2) or 8-color (6+2, 5+3, 4+4) models.
Within ±0.2 mm thanks to belt drive and pre-registering.
80 m/min printing speed; machine speed up to 120 m/min.
300 to 1,350 mm with stepless adjustment.
Resin or rubber plates, 1.7/2.28 mm thick, simple and low cost.
Per-color electric drying with double-surface blowing and wind-cooling circulation.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
