Two proven series for your line: the high-speed model for PP valve-bag lines and the standard model for ordinary woven-bag lines. Runs virgin or 100% recycled PP, output 50–700 kg/h, with energy-saving electromagnetic heating.
Energy Saving
Output

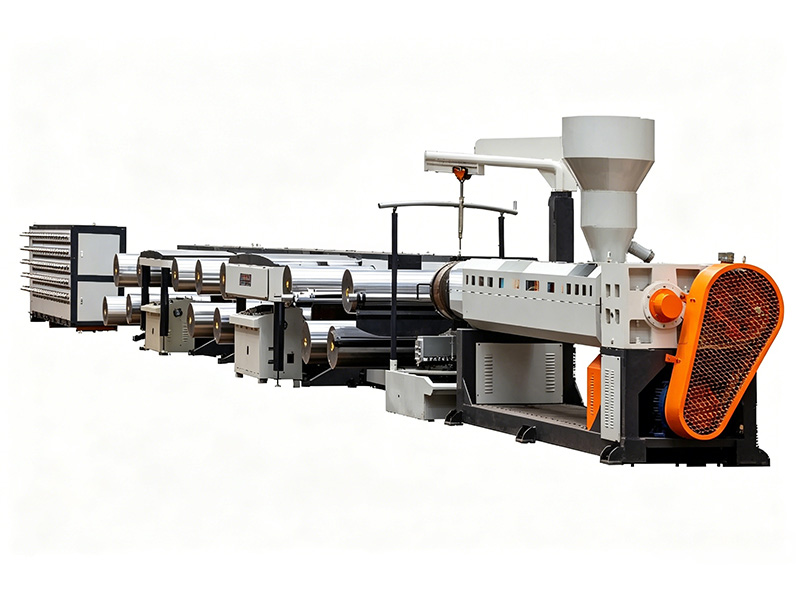

This PP flat wire extrusion machine converts PP chips into flat woven tape: material is heated and extruded through a wide die, water-cooled into film, split by ceramic knives, stretched by the low/high-speed traction rollers to a 4–8× drawing ratio, heat-set, then rewound onto bobbins for circular looms.
We supply two series, so you choose exactly what your line needs. The High-Speed Model is engineered for PP valve-bag production lines, with energy-saving electromagnetic heating, PLC touchscreen control, and precision temperature control, delivering thinner, stronger, and more uniform tape at higher output. The Standard Model is built for ordinary woven-bag production lines—compact, durable, and easy to maintain for high-volume cement and fertilizer sacks.
Both series run virgin PP, masterbatch, or 100% recycled material, with tape thickness 0.03–0.06 mm. A complete set—mixer, flat-wind winder, bobbins, and cooling tower—can be delivered together.
Suitable Material: Virgin PP, PP with masterbatch, or 100% recycled PP; tape thickness 0.03–0.06 mm.
| Basic Information | |||
| Parameter | High-Speed (SJ-FS160/B2800) | Standard (SJ-FS120/B1000) | Full Range |
| Screw Diameter | 160 mm | 120 mm | 120 – 210 mm |
| Die Width | 2,800 mm | 1,000 mm | 800 – 5,800 mm |
| Main Motor | 75 kW | 37 kW | 37 – 185 kW |
| Output | 160–320 kg/h | 60–120 kg/h | 50 – 700 kg/h |
| Drawing Ratio | 4 – 8 | 4 – 8 | 4 – 8 |
| Tape Speed | 50–150 m/min | 50–150 m/min | 50–150 m/min |
| Best For | Valve-bag line | Woven-bag line | — |
| Performance & Quality / Screw & Components | |||
| Parameter | Value | Component | Specification |
| Tape Thickness | 0.03 – 0.06 mm | Screw | Nitrided, up to Ø210×6000 mm |
| Drawing Ratio | 4 – 8 | Die | P20 mirror chrome-plated, thickened triplet |
| Raw Material | Virgin or 100% recycled PP | Main Motor | High-efficiency motor + VFD |
| Heating Type | Energy-saving electromagnetic | Traction | Double traction (low + high speed) |
| Control | PLC touchscreen auto control | Splitting Knife | Ceramic cutter |
| Cooling | Stainless water tank + 7.5 kW vacuum | Winder | Torque-motor tension, energy-saving inverter |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
High-speed for valve-bag lines, standard for woven-bag lines—we match your project.
Precise electromagnetic temperature control—100% recycled PP runs smoothly.
Electromagnetic heating saves ~5%; the winder saves ~10%.
4–8× double traction stretches the tape, raising tensile strength.
Nitrided screw + P20 chrome die for long service life.
Mixer, winder, bobbins and cooling tower — one order, one team.
Industrial Fabrics
Cement valve sacks
Recommended Model
High-Speed
Industrial Fabrics

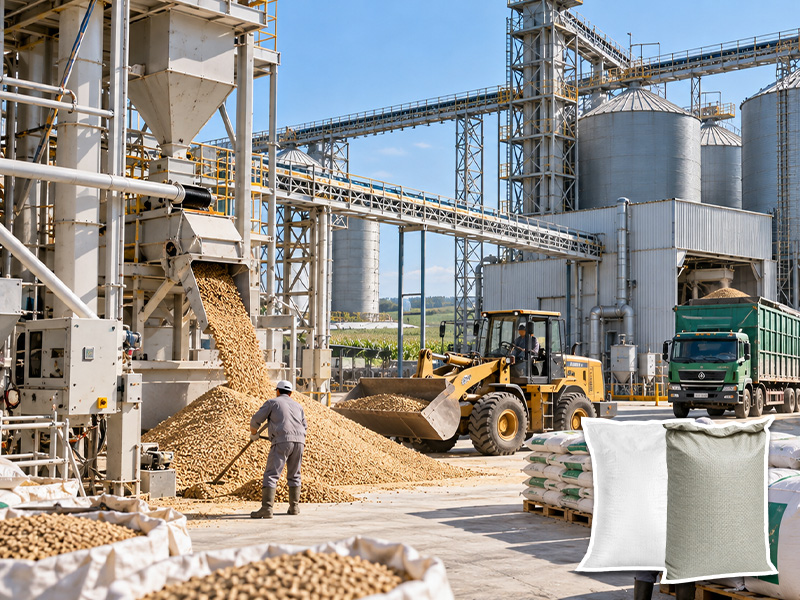

Cement, fertilizer sacks
Recommended Model
Standard
Industrial Fabrics
1–2 ton bulk bags
Recommended Model
Wide-die High-Speed
Industrial Fabrics
Container dunnage bags
Recommended Model
Standard
Industrial Fabrics
Geotextile, shade net
Recommended Model
Wide-die

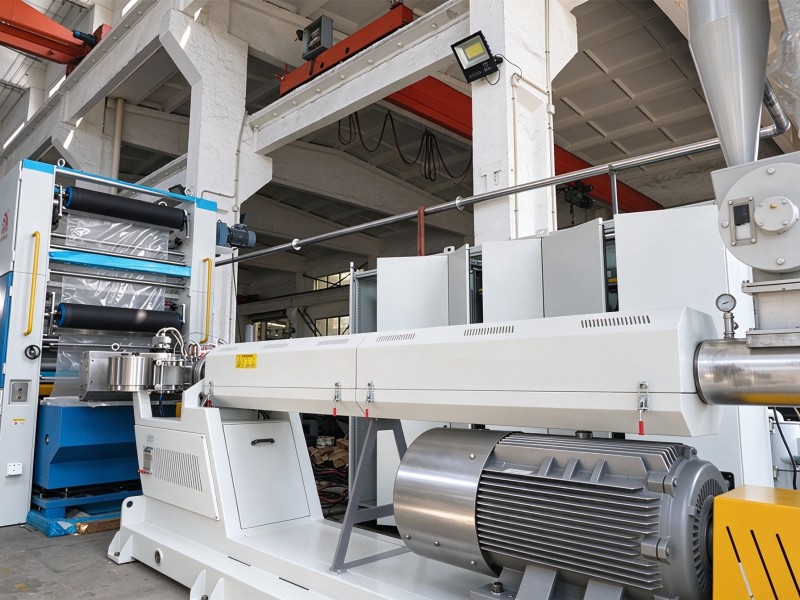

Screw diameter 120–210 mm, length up to 6,000 mm, nitride-treated for wear resistance and even plasticizing.

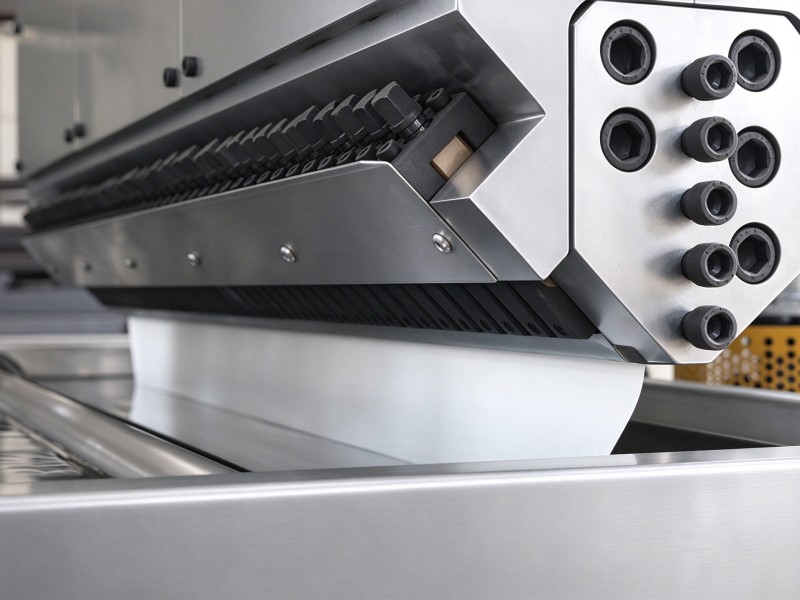

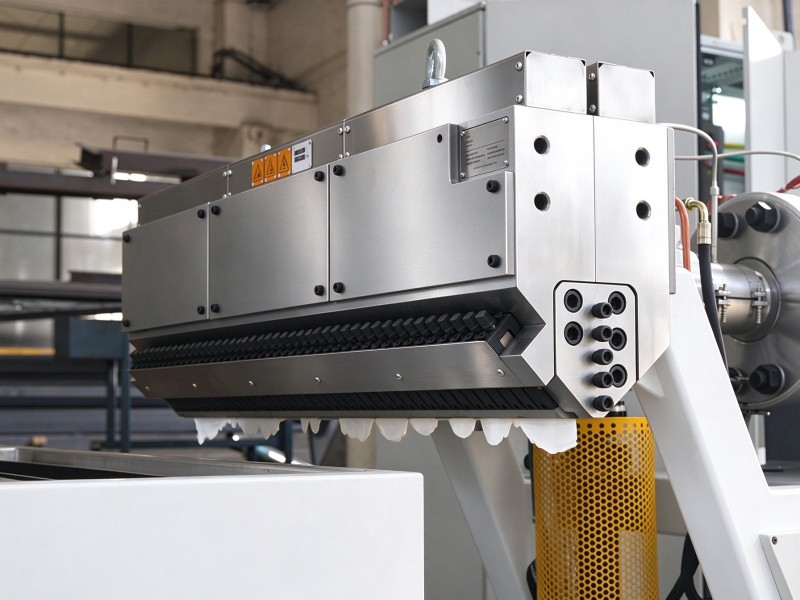

Mirror chrome-plated die width 800–5800 mm; thickened inner triplet fitted with a pressure gauge for stable film output.

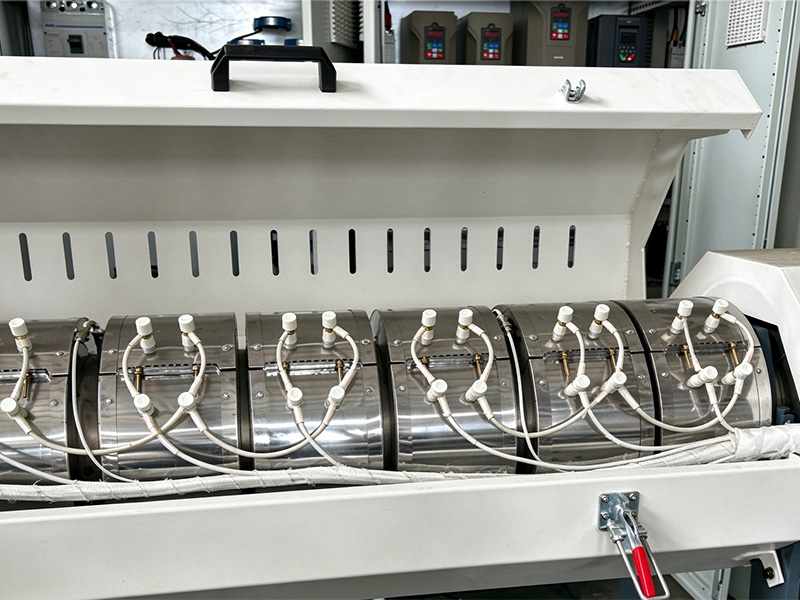

Electromagnetic heaters on the extruder and ovens deliver even temperature and cut about 5% of electricity.

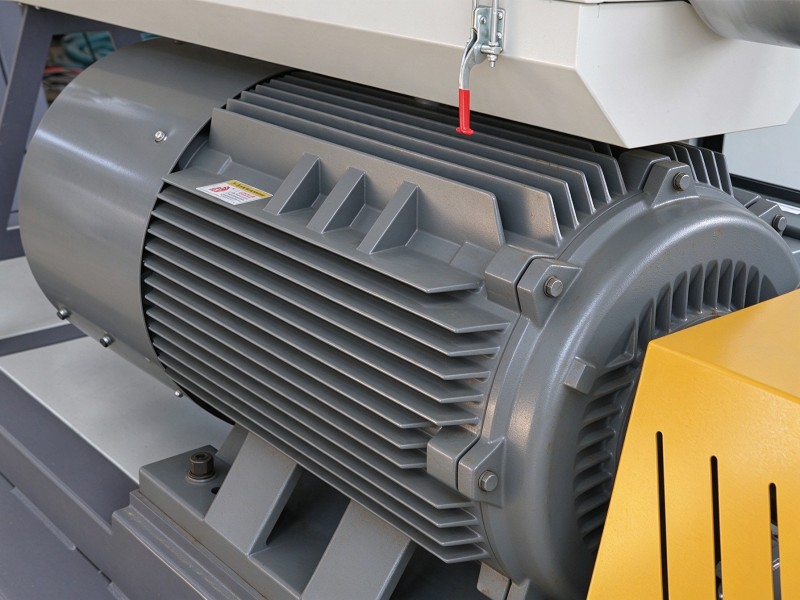

High-efficiency main motor (37–185 kW) matched with variable-frequency drive for stable, energy-saving speed.

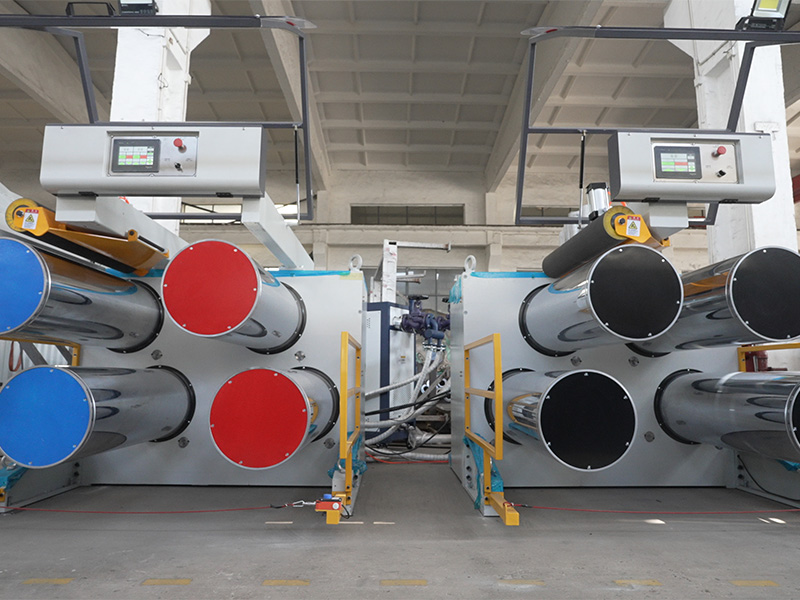

Low-speed and high-speed traction rollers give a 4–8× drawing ratio, raising tape tensile strength.

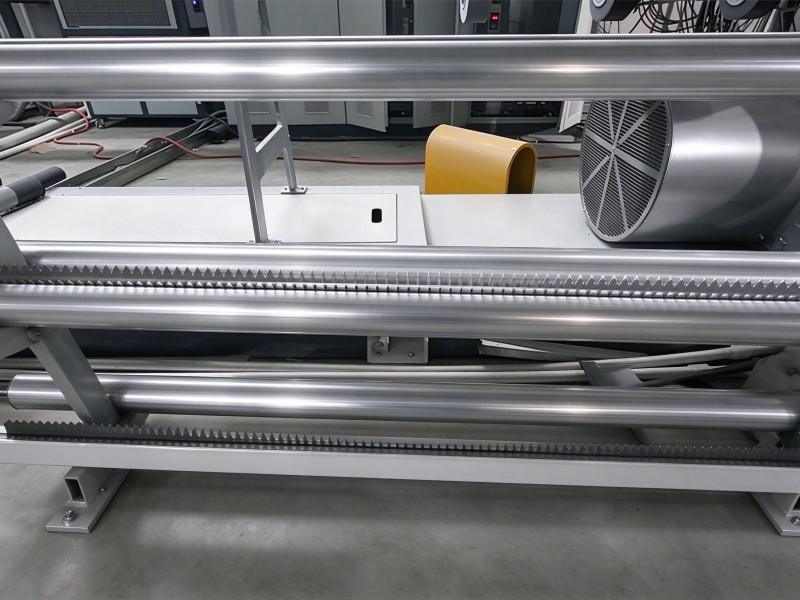

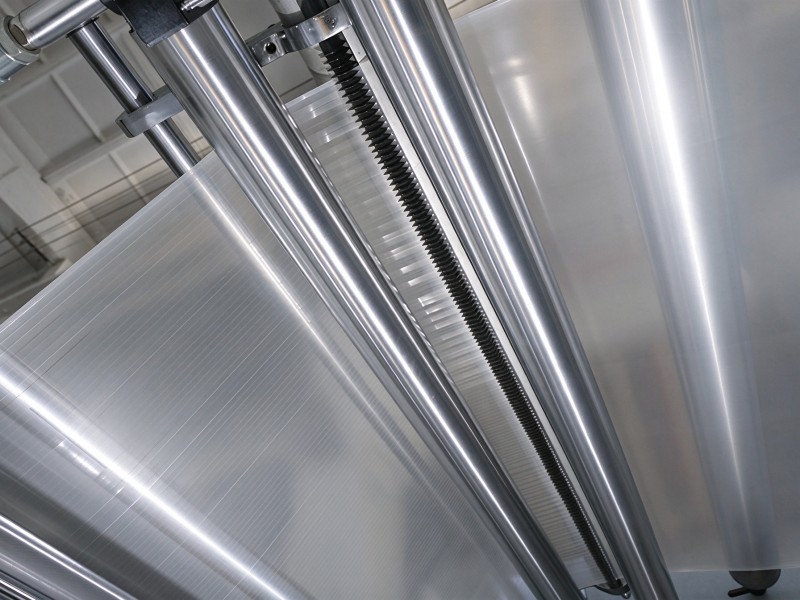

Splits the cooled film into uniform flat tape; tape width adjustable as required.

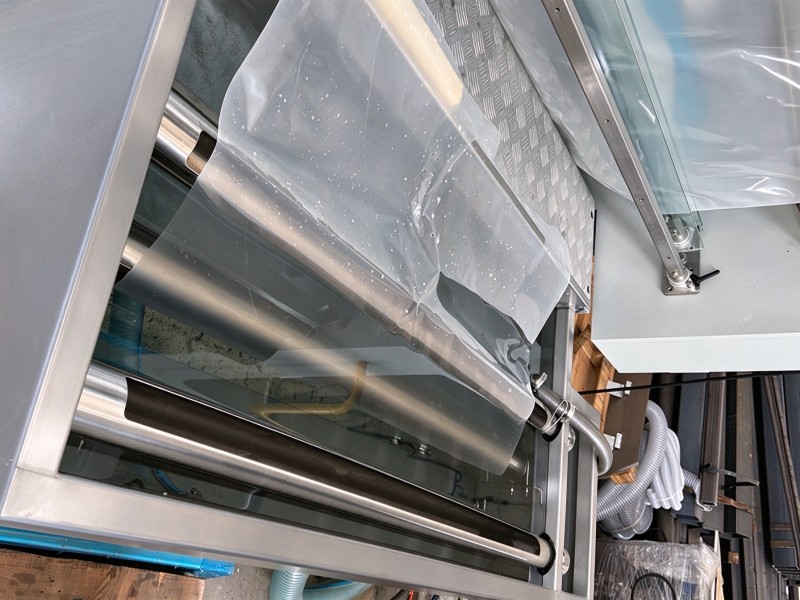

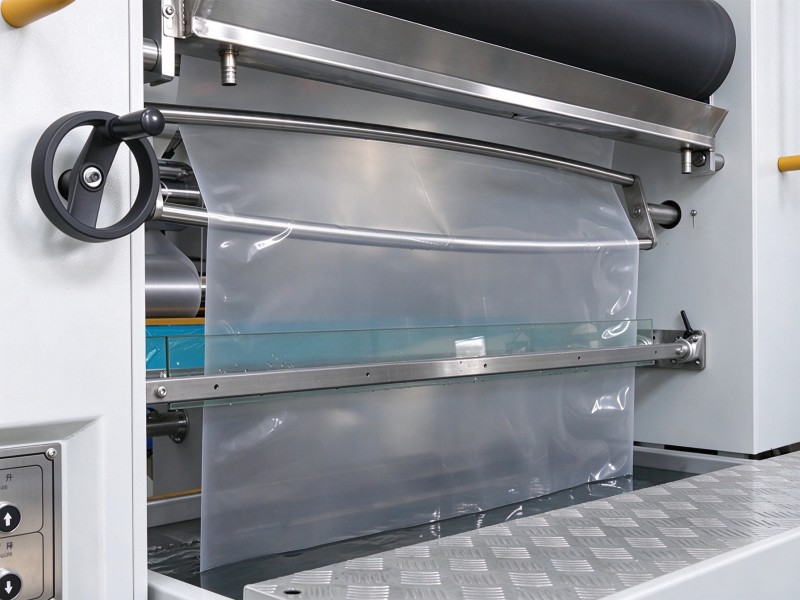

Stainless cooling tank with 7.5 kW vacuum pump keeps film cooling even and removes moisture.

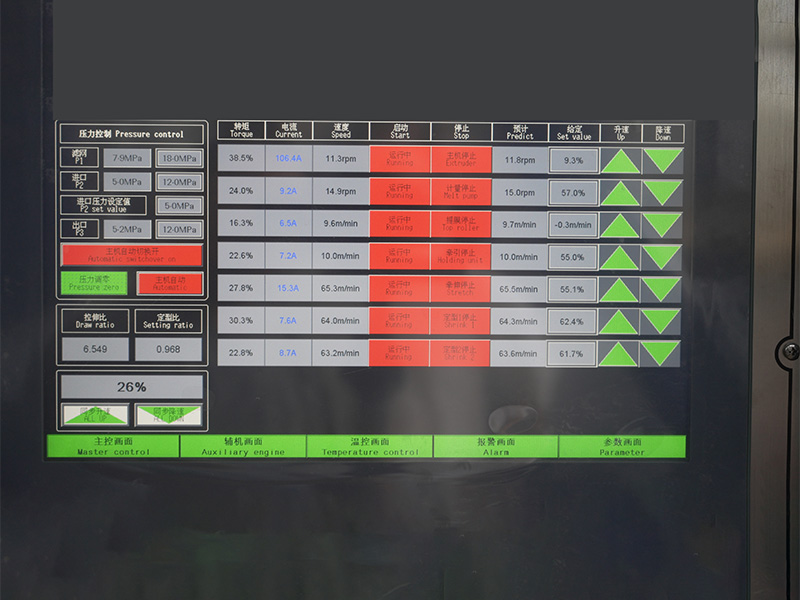

Automatic temperature and tension control on the touchscreen; easy settings, lower operator skill requirement.

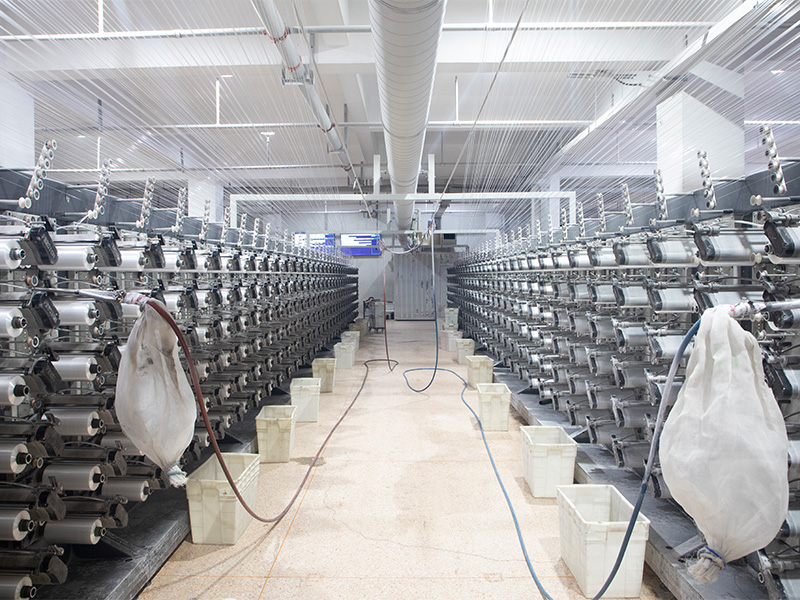

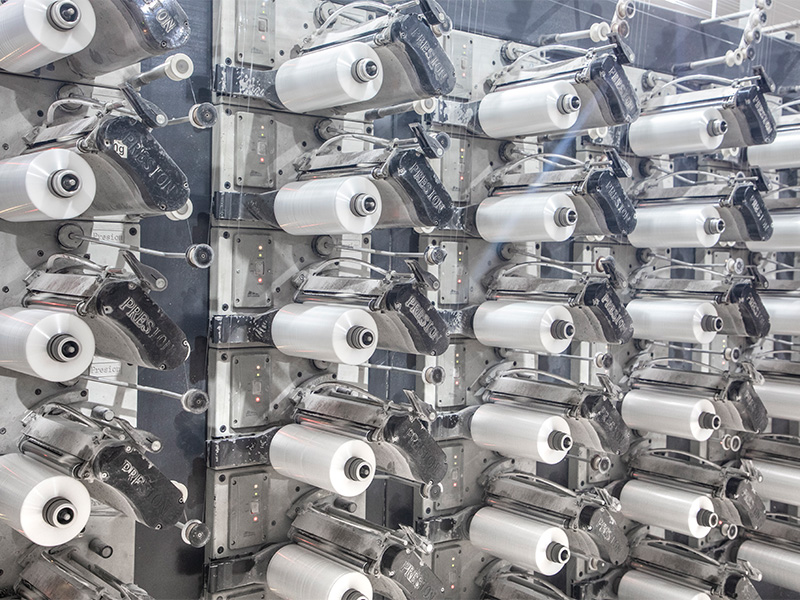

Bearing-steel slide bar, torque-motor tension, energy-saving inverter. Mixer and cooling tower available as a complete set.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
High-speed for valve-bag lines, standard for woven-bag lines.
Runs 100% recycled PP without broken tape.
Electromagnetic heating saves ~5%; winder saves ~10%.
4–8× double traction; ceramic splitting keeps width even.
Die width from 800 to 5,800 mm, output 50–700 kg/h.
Nitrided screw, P20 chrome die, reinforced bearings.
Touchscreen temperature and tension, easy to operate.
Mixer, winder, bobbins, cooling tower and looms from one team.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Screw Diameter | 120 mm | 210 mm |
| Die Width | 800 mm | 5,800 mm |
| Output | 50 kg/h | 700 kg/h |
| Tape Thickness | 0.03 mm | 0.06 mm |
| Tape Speed | 50 m/min | 150 m/min |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
It extrudes PP chips into film, cools and splits it into flat tape, stretches and heat-sets it, then rewinds it for circular looms.
Choose high-speed for PP valve-bag lines and higher output; choose standard for ordinary cement/fertilizer woven-bag lines. Tell us your bag type and output, we recommend.
From 50 kg/h on small models to 700 kg/h on the 210 mm-screw large model, depending on die width.
Yes. Precise electromagnetic temperature control handles virgin or 100% recycled PP smoothly.
Flat tape from 0.03 to 0.06 mm, with a 4–8× drawing ratio.
A complete set includes the extruder, flat-wind winder, mixer, bobbins, and cooling tower.
PLC touchscreen controls temperature and tension automatically; training is short.
On-site installation and training, 30-minute remote response, spare parts in Asia.
