Cuts, inserts the inner bag, sews and hems the bag mouth in one continuous line — one operator runs the full process. Patented smokeless hollow hot cutting gives smooth, burr-free, food-grade edges; twin-station hemming (heating or ultrasonic) seals the mouth; cutting accuracy within ±1mm.
Cutting/Sewing Speed
Operators

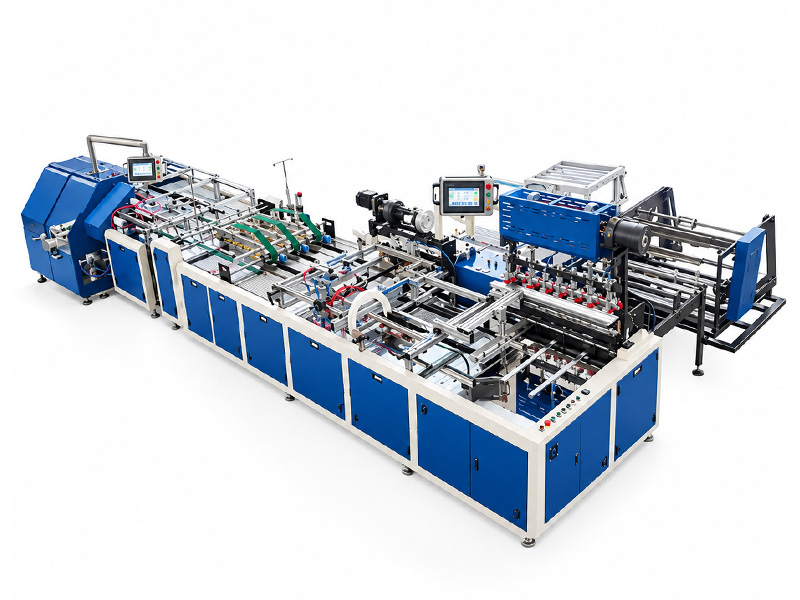

The cutting-sewing-inserting-hemming machine completes bag cutting, PE inner-bag inserting, bottom sewing and mouth hemming in one continuous line. It handles cement, flour, feed, sugar and fertilizer bags as well as express packaging — with just one operator and output more than twice that of separate machines.
Its patented hollow hot cutting technology produces smooth, burr-free edges with no smoke and no thread shedding — ideal for food-grade packaging. The opening rollers and a secondary opening device keep the bag mouth free from adhesion before the inner bag is blown in and stretched 3–7cm to prevent stacking.
The twin-station hemming unit seals the bag mouth by heating (Teflon mold) or ultrasonic welding, with servo positioning for accuracy. Omron PLC with a WEINVIEW touchscreen controls the whole line, color-mark tracking holds consistent length, and optional AI vision inspection detects bag holes to protect yield.
Suitable Material: Ordinary PP woven bags, laminated bags, paper-plastic bags, feed bags, fertilizer bags — with PE inner bag.
| Models | |||
| Parameter | HS-CSIH-800A | HS-CSIH-800B | HS-CSIH-700 |
| Bag Cutting Width | 400–750 mm | 350–750 mm | 400–700 mm |
| Bag Cutting Length | 700–1,200 mm | 600–1,250 mm | 700–1,200 mm |
| Cutting Accuracy | ±1 mm | ±1.5 mm | ±2 mm |
| Cutting Speed | 30–50 pcs/min | — | — |
| Inserting Speed | 25–40 pcs/min | 25–32 pcs/min | 10–22 pcs/min |
| Hemming Speed | 16–22 pcs/min | 16–20 pcs/min | — |
| Hemming Type | Heating + ultrasonic | Heating + ultrasonic | Heating + ultrasonic |
| Edge-Folding Width | — | — | 18–30 mm |
| Total Power | 18 kW | 31.6 kW | 28 kW |
| Weight | 6.8 T | ~5.5 T | ~5 T |
| Dimensions | 10,000×7,000×1,600 mm | Main unit: 5,240 × 2,100 × 1,400 + Ring-mouth machine: 3,750 × 2,070 × 1,500 mm | 7,000×8,500×1,500 mm |
| Optional Printing | — | 2-color roll-to-roll | — |
| AI Vision Inspection | Optional | — | — |
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Inner Bag Longer Than Outer | Φ800 mm, constant-temp water cooling | PLC | Omron (Japan) |
| Inner Film Thickness | Water-based or oil-based | Touchscreen | WEINVIEW |
| PE Film Width | Resin or rubber | Color-Mark Tracking | Panasonic |
| Needle Pitch | 1.14 mm | Servo System | ELESY |
| Fabric Roll Dia. | Chamber, with ink pump | Pneumatic Parts | Taiwan Airtac (full set) |
| Film Cutting Width | Laser-engraved ceramic, 8 pcs | Sewing Head | DN-2S |
| Cutting Technology | Electric heating, PID ±2°C | Conveyor Belt | PU base belt |
| Frame | Laser-cut steel plate | ||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Opening rollers + secondary opener: mouth free, high opening rate.
Patented hollow hot cutting: smooth, burr-free, no smoke.
Auto inserting + 3–7cm stretch: even, no stacking inside.
Twin-station hemming built in — heating or ultrasonic.
Optional AI vision inspection detects holes in real time.
One machine, one operator, output more than doubled.
Typical Bags

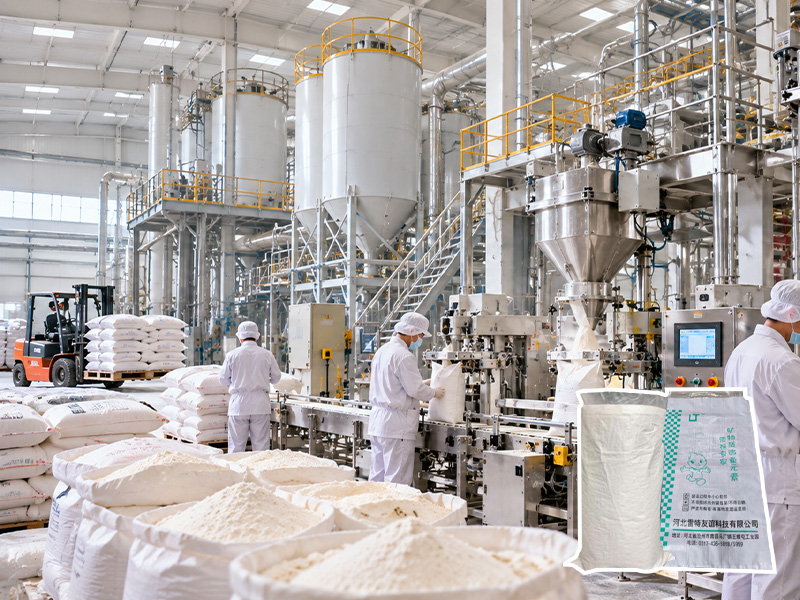

Flour, sugar, rice bags
Key Benefits
Food-grade cut, smoke-free and clean
Typical Bags

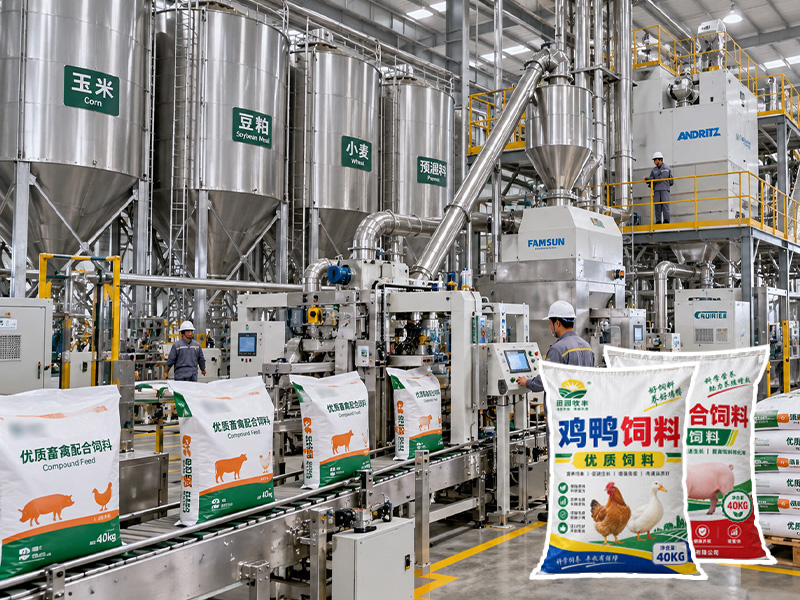

Cement sacks
Key Benefits
High-speed cutting, integrated ring and opening
Typical Bags
Feed bags
Key Benefits
Moisture-proof inner bag, secure fit
Typical Bags

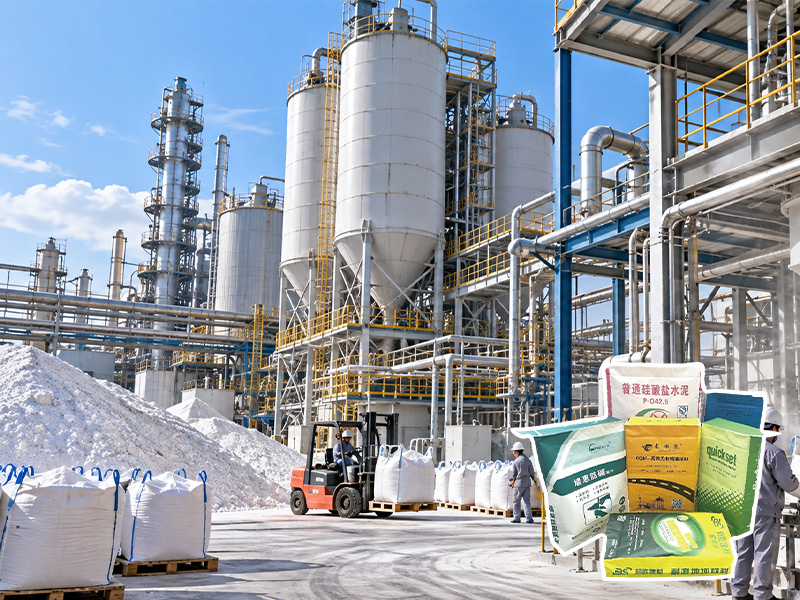

Fertilizer & chemical bags
Key Benefits
Compatible with paper and plastic bags, automatic countin
Typical Bags

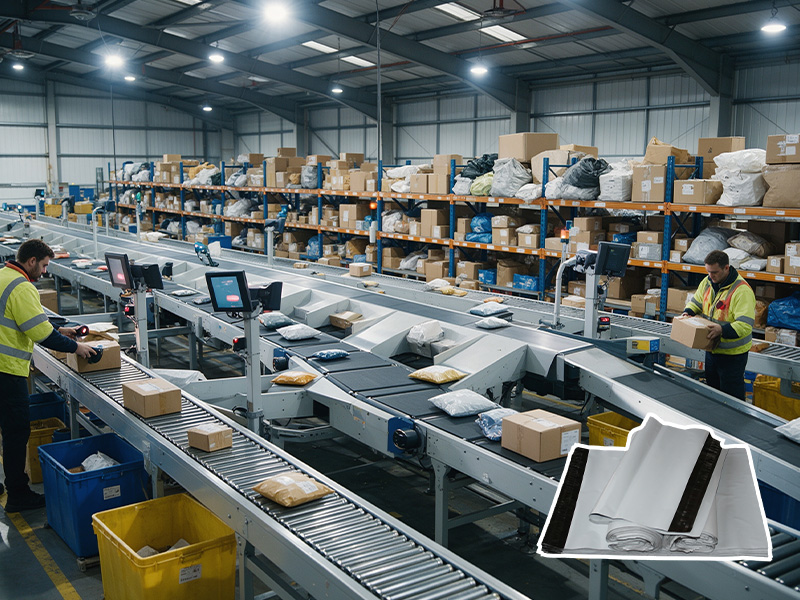

Courier packages
Key Benefits
High opening rate, neatly stacked bags
Typical Bags
Seed & grain bags
Key Benefits
Single-operator line, stable and high-yield

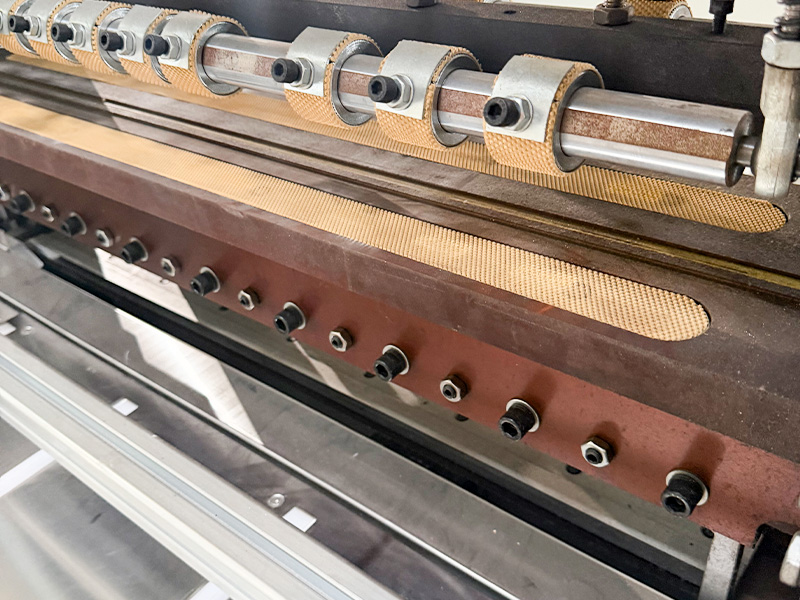

Alloy-steel forged hot knife, high-temp heat-treated: smooth, neat, small smoke; edges open easily without adhesion, no burr, no thread shedding.

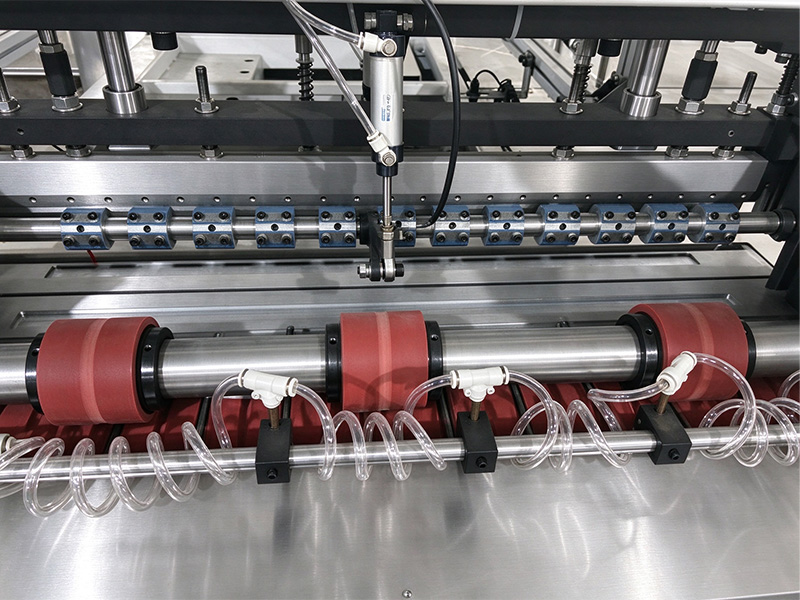

Cold knife is a durable alloy-steel broadknife, easy to maintain; hot/cold switch with one key, simple and convenient.

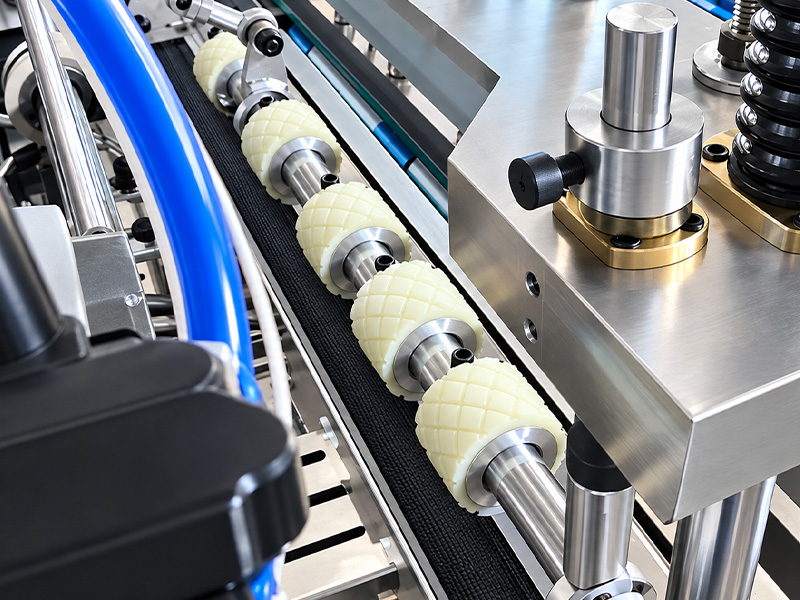

Twin opening rollers roll the mouth open during hot cutting; a secondary opener with negative-pressure suction and 180° rotating manipulator guarantees no adhesion before inserting.

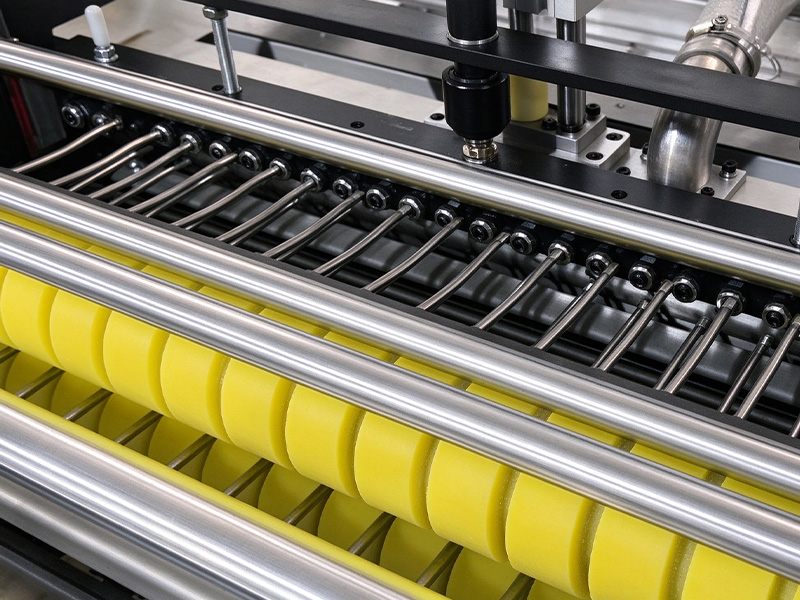

Feeds, seals, cuts and curls the inner bag, blows it into the outer bag, then stretches it 3–7cm — no stacking, no wrinkles.

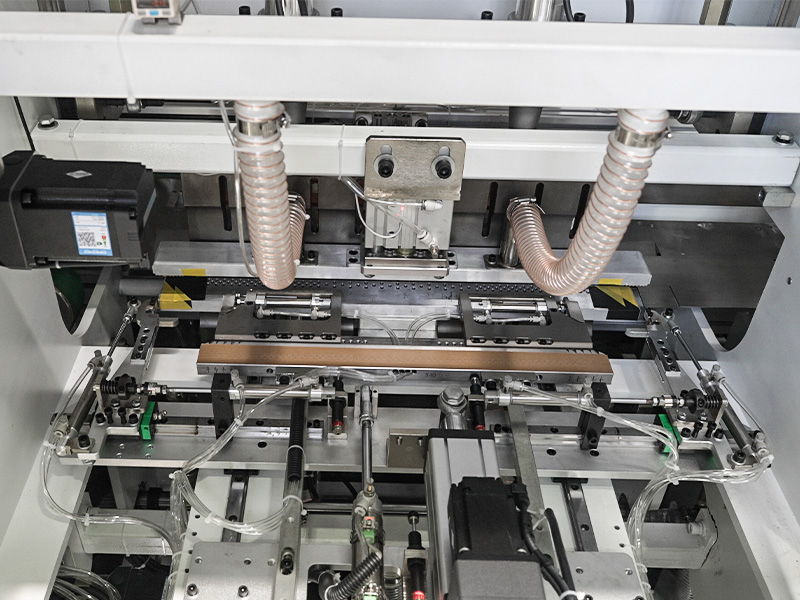

Station 1: heating with Teflon mold (carbon-fiber insulated); Station 2: ultrasonic welding; dual servo motors position precisely, bag never deviates.

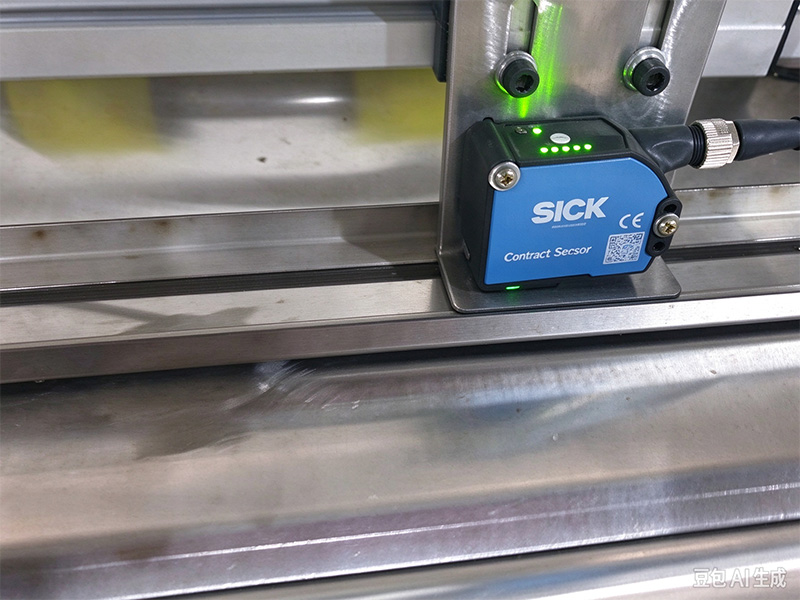

Floating rollers store material and balance tension; photoelectric + servo correction and color-mark tracking keep feeding straight and length consistent.

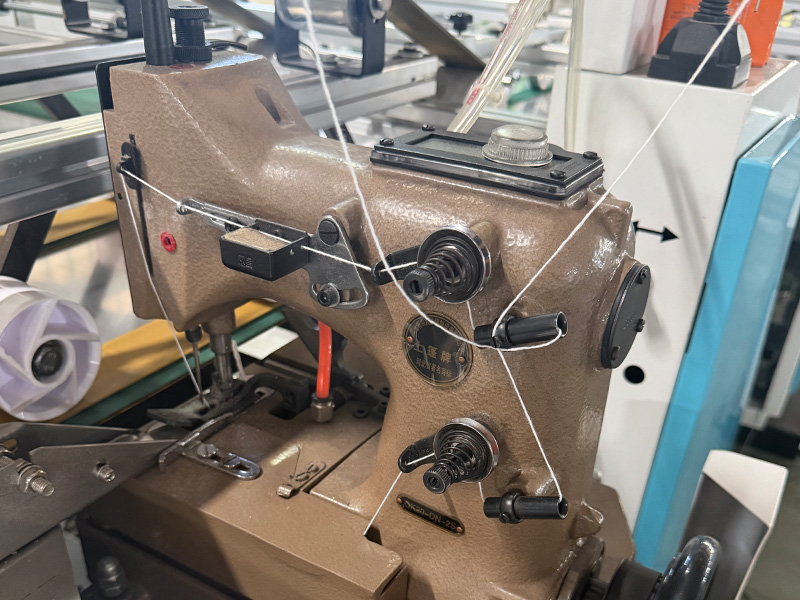

DN-2S sewing head with pneumatic scissors cuts thread after sewing; thread-break alarm stops defects.

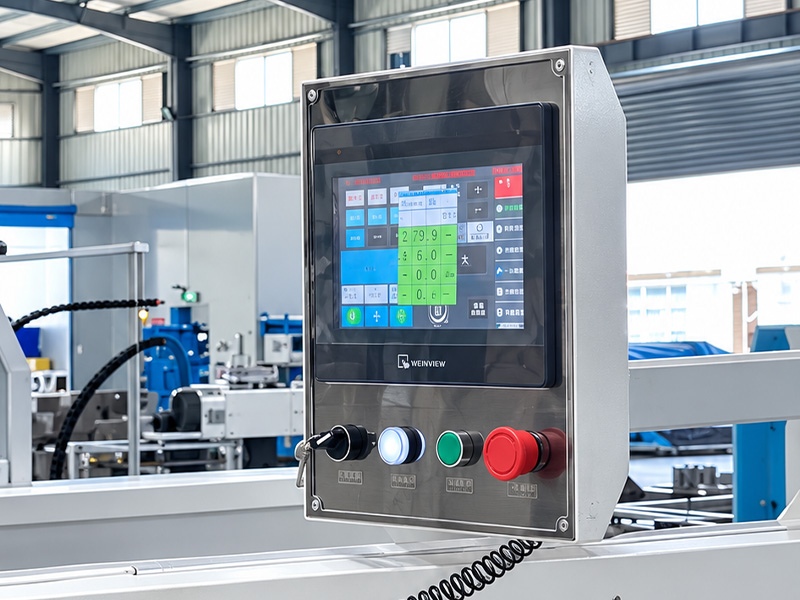

Omron PLC + WEINVIEW touchscreen: intuitive parameter setting, automatic recipe calculation for different bag specs, remote assistance via internet.

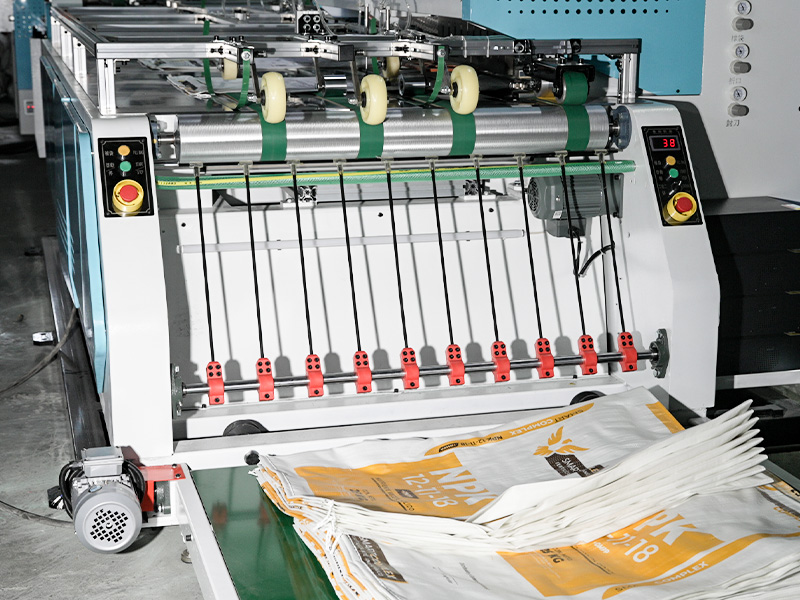

Electric collecting with electrostatic treatment stacks bags neatly, accurate counting; optional AI vision detects holes to protect yield.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Smooth, burr-free, no smoke, food-grade.
Heating or ultrasonic, sealed in the same line.
Opening rollers + secondary opener ensure high opening rate.
Blow-in + 3–7cm stretch, no stacking.
Omron PLC, WEINVIEW, Panasonic, Airtac.
Cement, flour, feed, sugar, fertilizer, express.
Integrated processes, minimal labor.
Real-time hole detection protects yield.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Width | 350 mm | 750 mm |
| Bag Length | 600 mm | 1,250 mm |
| Cutting Accuracy | ±1 mm | ±2 mm |
| Inserting Speed | 10 pcs/min | 40 pcs/min |
| Hemming Speed | 16 pcs/min | 22 pcs/min |
| Power | 18 kW | 31.6 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
It cuts PP woven fabric, inserts a PE inner bag, sews the bottom and hems the bag mouth in one continuous line.
Both: Station 1 heats with a Teflon mold, Station 2 welds ultrasonically; models offer one or both.
Cement, flour, feed, sugar, fertilizer bags and express packaging, with or without PE inner bag.
The patented hollow hot cutting produces smooth, burr-free edges with no smoke and no thread shedding.
The film is fed, sealed, cut and curled, blown into the outer bag, then stretched 3–7cm to prevent stacking.
One operator runs the whole line; the printing-integrated version needs a small printing crew.
Yes — the HS-CSIH-800B integrates a 2-color roll-to-roll printing machine in the same line.
On-site installation and training, remote assistance via internet, 30-minute remote response, spare parts warehouse in Asia.
