Prints PP woven fabric and kraft paper (>60 g/m²) in rolls before bag making—up to 120 m/min with ±0.5 mm registering accuracy. Available in 3, 4 and 7-color (5+2) configurations, with servo-independent drives, automatic color tracking, and dual-traction rewinding.
Printing Speed
Max Bag Size

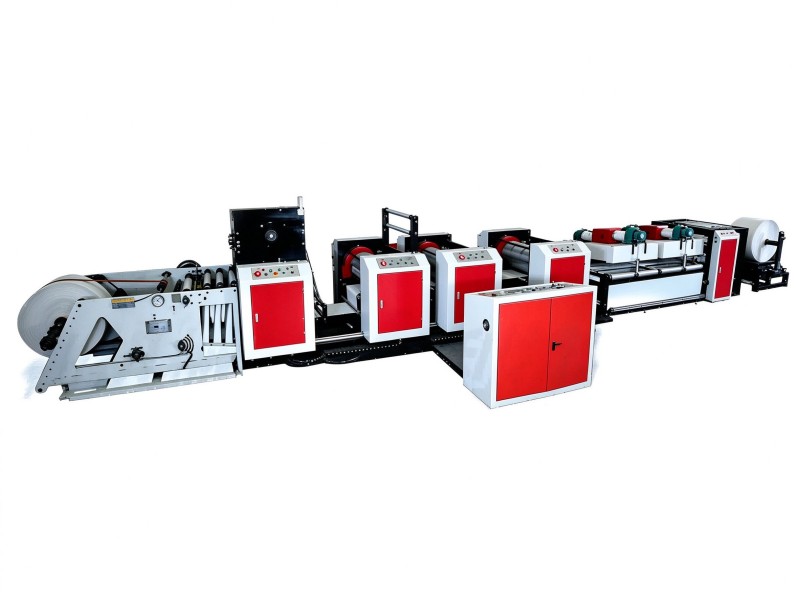

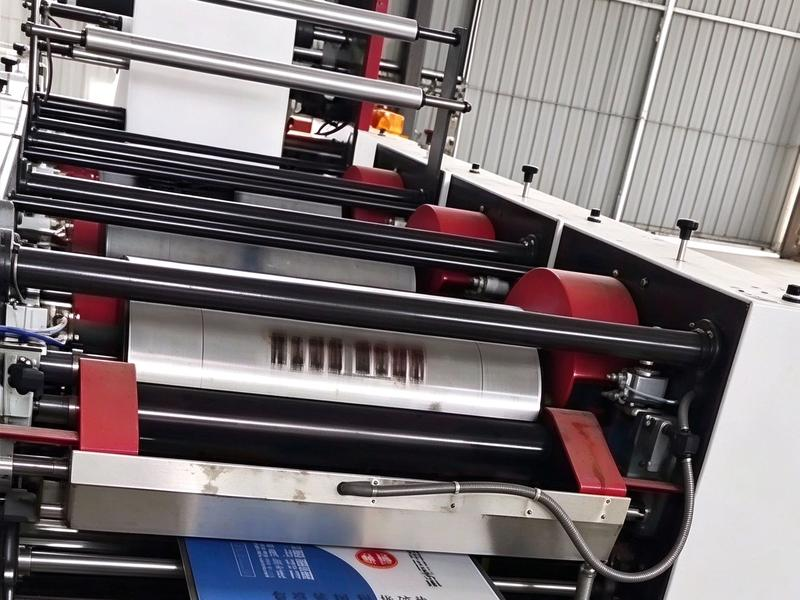

This roll-to-roll printing machine prints continuous PP woven fabric and kraft paper rolls before the bag-making process, enabling high-speed, large-volume printing for cement, fertilizer, flour, and chemical sack producers. Fabric unwinds, passes through servo-driven printing units, dries in per-color ovens, then rewinds into tidy rolls.
Three configurations cover your output needs: the 3-Color series (12kW, 12m machine) for basic one-side printing; the 4-Color series (17kW, 13m, approx. 3,800 kg) with combinations of 4+0, 3+1, and 2+2; and the flagship 7-Color (5+2) series (25kW, 23m), which prints both sides simultaneously through different threading methods—up to 7 colors, such as 5+2, 4+3, and 3+3.
Built for accuracy and ease: mesh/chrome/rubber roller ink transfer with independent ink motor prevents ink dumping, vertical electric registering holds ±0.5 mm, the whole machine is remote-controlled by one operator, and all-machine alarm with pneumatic lower-roll unloading keeps the line safe and simple.
Suitable Material: PP woven fabric and kraft paper (>60 g/m²), max feed width 800mm.
| Basic Information | |||
| Parameter | 3-Color | 4-Color | 7-Color (5+2) |
|---|---|---|---|
| Printing Combination | 3+0, 2+1 | Bag Width (W) | 300 – 600 mm |
| Max Feed Width | 800 mm | 800 mm | 800 mm |
| Max Printing Width | 700 mm | 700 mm | 700 mm |
| Printing Speed | ≤ 120 m/min | ≤ 120 m/min | ≤ 120 m/min |
| Registering Tolerance | ±(1–3) mm | ± 0.5 mm | ± 0.5 mm |
| Total Power | 12 kW | 17 kW | 25 kW |
| Machine Size | 12 × 1.85 m | 13 × 1.85 m | 23 × 2.025 m |
| Weight | — | ≈ 3,800 kg | — |
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Plate Perimeter | 1,271 mm | Touch Screen | 2 kHz |
| Plate Thickness | 4 – 5 mm | Servo Motor & Driver | < 0.05% |
| Roll Diameter | ≤ 1,300 mm | Inverter | 75 g (±2 g) for 25–50 kg bags |
| Drying | Double-fan oven per color | Low-Voltage Electrical | < 0.5% |
| Registering | Vertical electric, horizontal manual | Color-Scale Sensor | ~150 KW |
| Printing Unit Drive | Servo motor, independent per unit (1.5 kW) | Pneumatic Parts | |
| Traction | Front 3kW + rear 3kW, servo driven | Machine Frame | 12 mm steel plate |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Vertical electric registering holds accuracy within ±0.5mm.
Printing speed up to 120 m/min keeps the line ahead.
Mesh/chrome/rubber rollers with ink motor give even ink.
Full remote control—one operator runs the whole machine.
Automatic deviation correction rewinds rolls neatly.
Threading methods print both sides—5+2, 4+3, 3+3.
Typical Bags

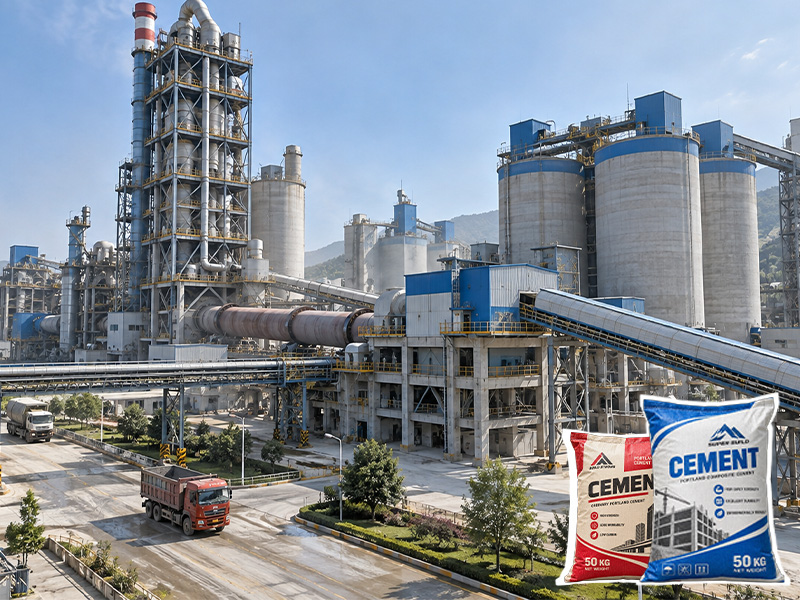

Cement sacks
Recommended Series
3-Color
Key Benefits
High-speed, high-volume, low-cost
Typical Bags

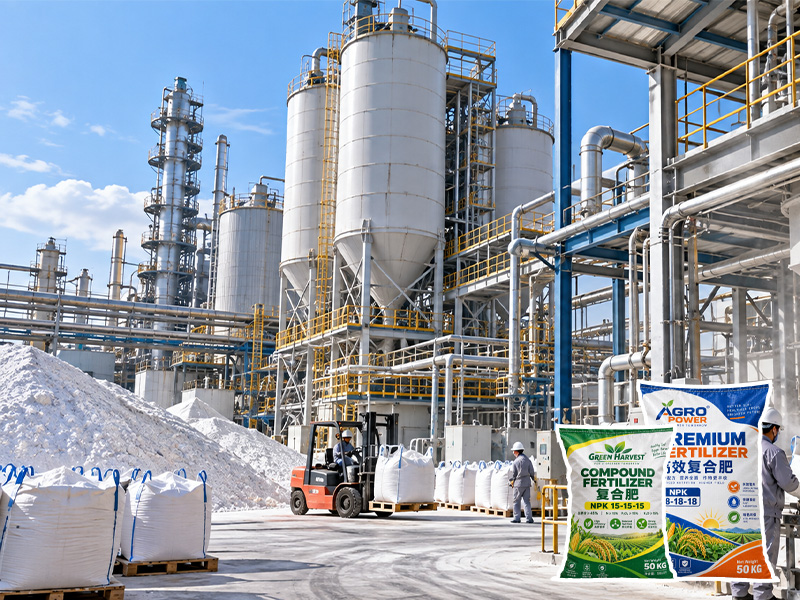

Fertilizer bags
Recommended Series
4-Color
Key Benefits
Multi-color, brand-oriented, visually appealing
Typical Bags

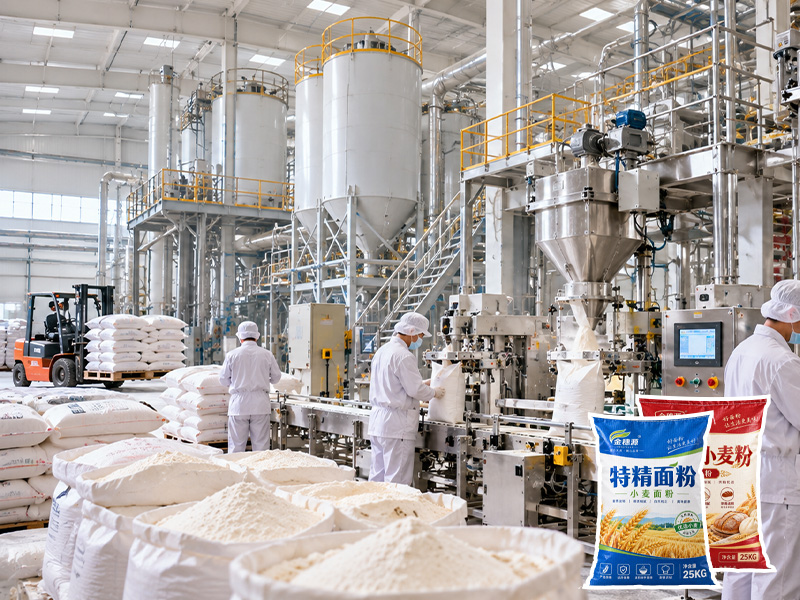

Flour, grain bags
Recommended Series
3/4-Color
Key Benefits
Clear print and accurate color registration
Typical Bags

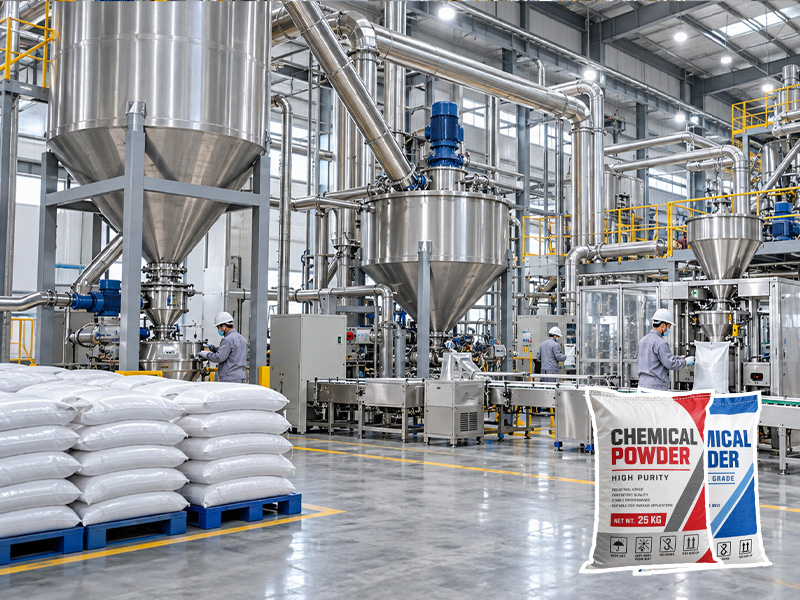

Chemical powder bags
Recommended Series
4-Color
Key Benefits
Durable printing that resists wear and tear
Typical Bags

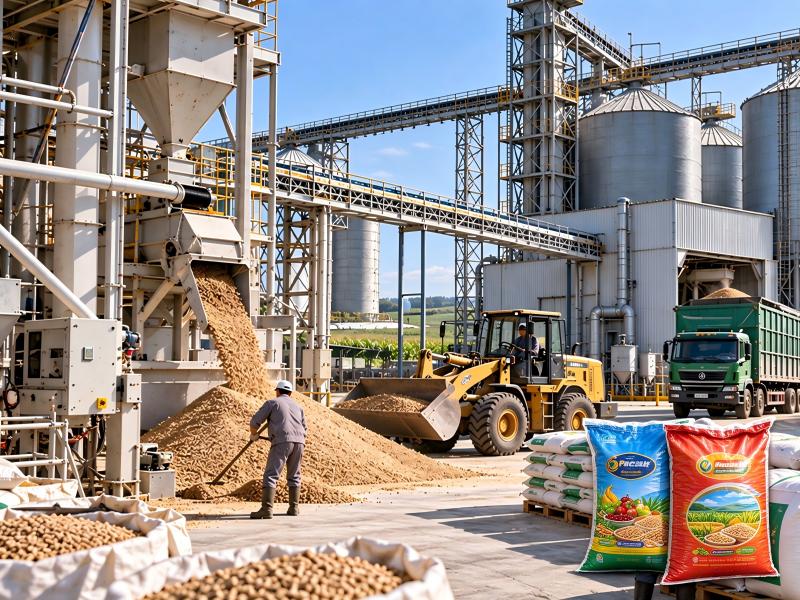

Retail-grade printed sacks
Recommended Series
7-Color (5+2)
Key Benefits
Double-sided printing with rich colors

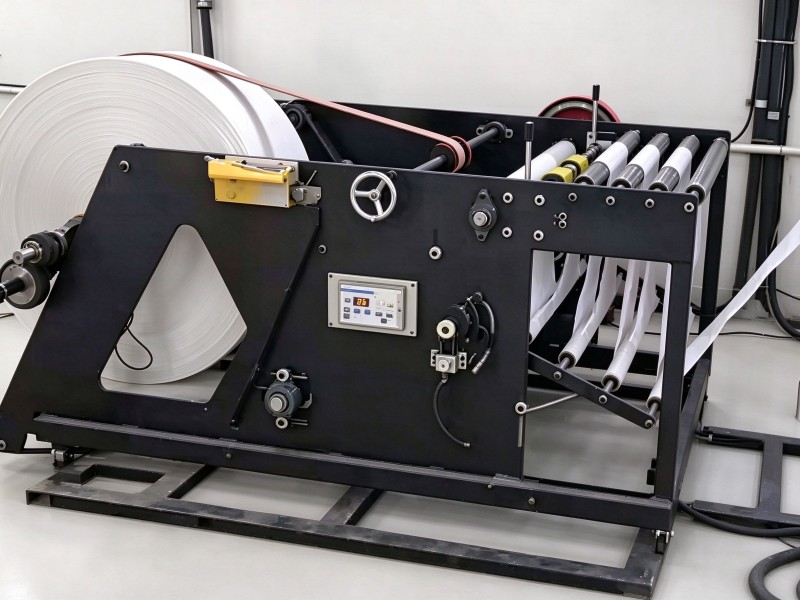

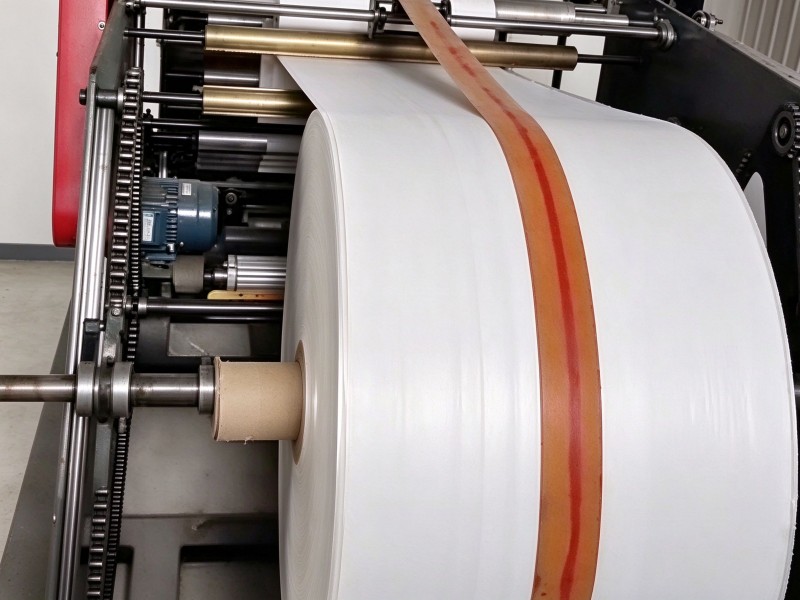

Push the roll to the feeding arm and control the pneumatic valve or electric button for automatic roll loading; deviation correction is applied before printing.

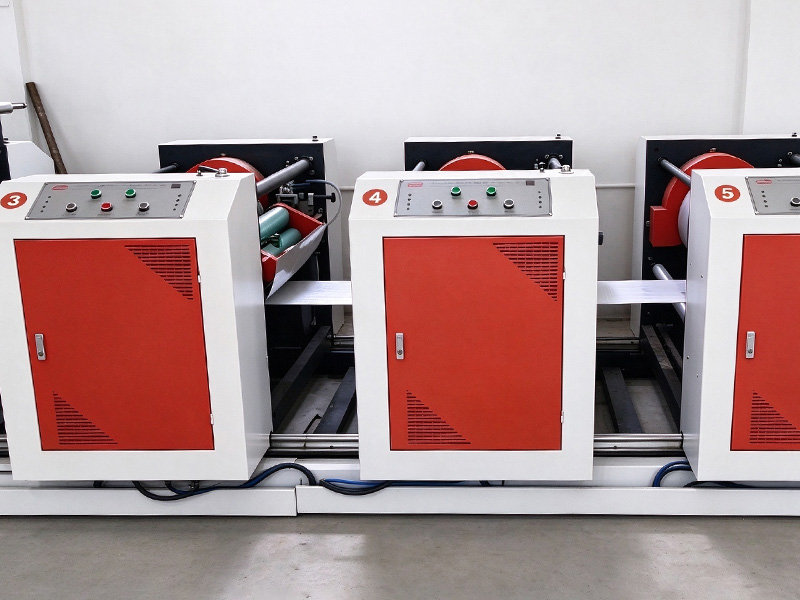

Each color unit has an independent servo motor, printing one side or both sides through different threading methods (7 colors max: 5+2, 4+3).

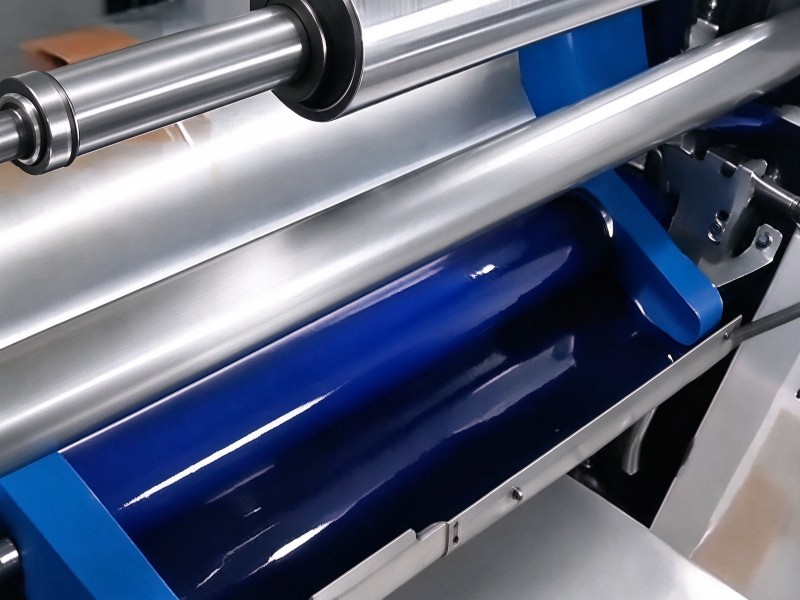

Mesh roller, chrome roller and rubber roller combine for ink transfer; an independent motor keeps ink even with no ink dumping, plus automatic ink tracking.

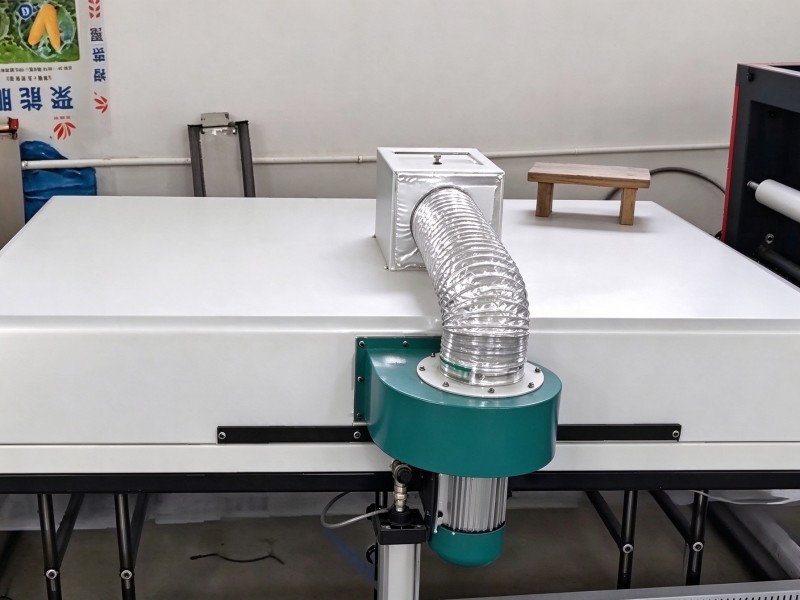

Each printing color is equipped with a double-fan oven box for fast, even drying of printed fabric.

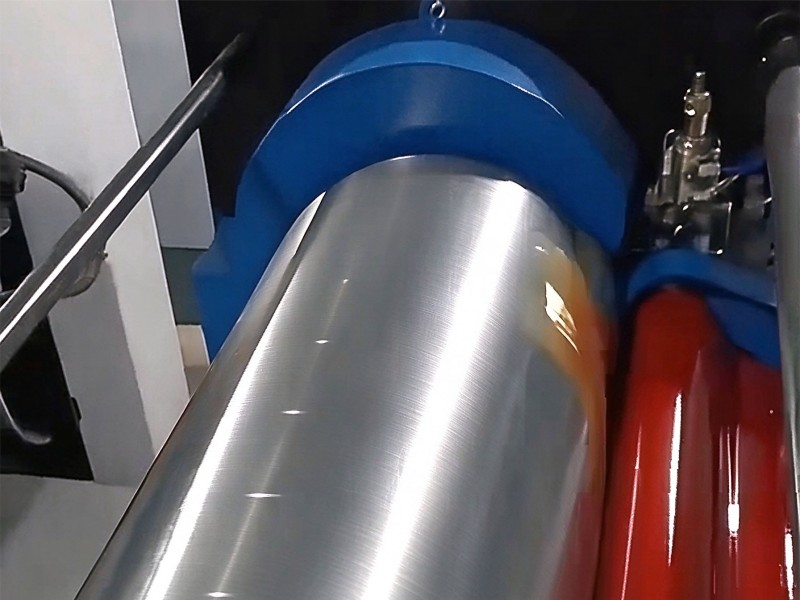

Vertical electric registering with horizontal manual adjustment holds color accuracy within ±0.5mm.

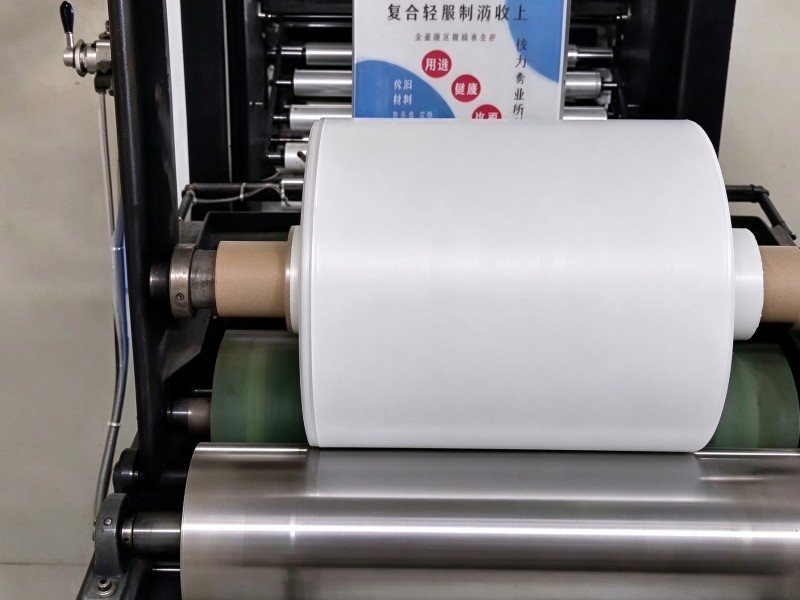

Frequency-converter winding motor runs synchronously with the main machine; automatic deviation correction keeps rolls neat; pneumatic lower-roll unloading with manual cloth cut.

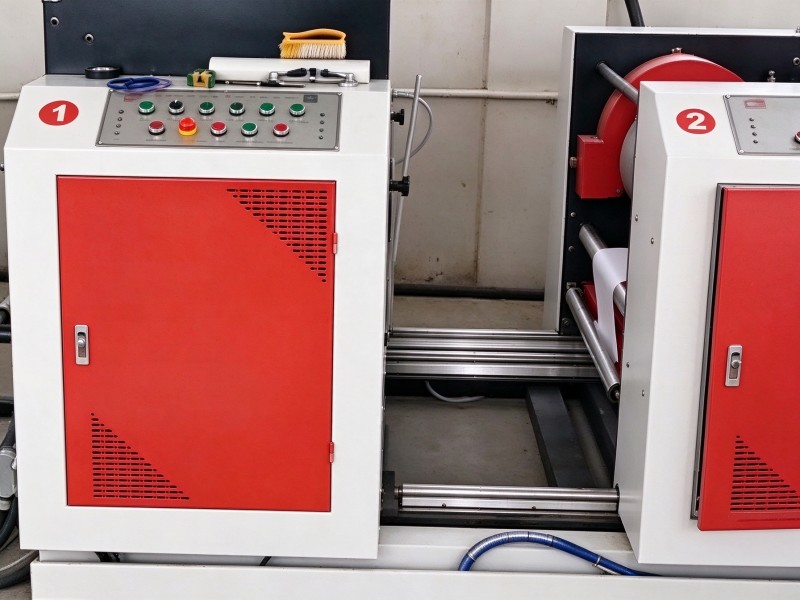

Touchscreen control (WeinView) with full-machine remote operation, automatic alarm, brush vacuum cleaning and disc-cut alarm shutdown.

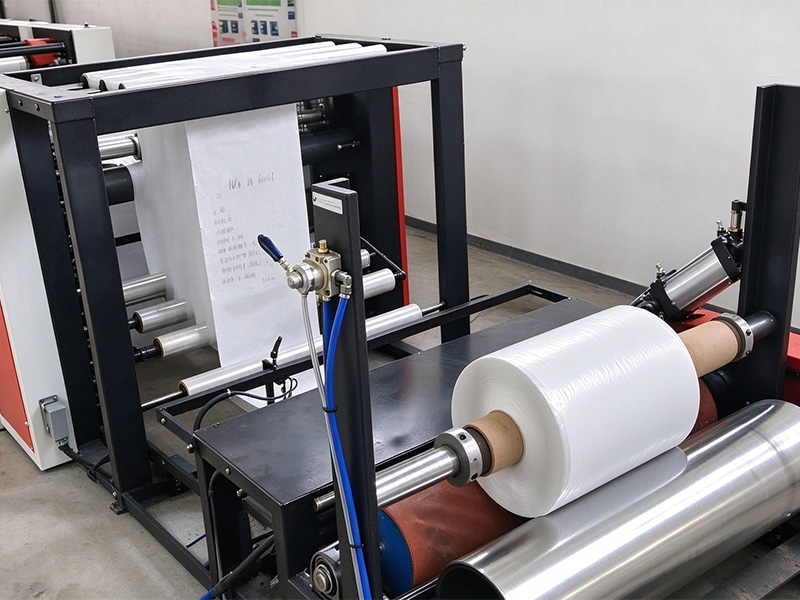

12mm main wall panels and 10mm closure panels with smooth cutting, plus slot-steel square-pipe welding — stable and durable.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
High-speed roll printing for peak-order seasons.
Vertical electric registering for accurate colors.
Threading methods reach 5+2, 4+3, 3+3 combinations.
Each color unit driven separately for stable printing.
Neat rewinding protects downstream bag making.
Full-machine remote control saves labor cost.
Delta servos, Huichuan inverter, Chint, Panasonic.
12mm steel plate structure, stable at high speed.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | 4-Shuttle | 6-Shuttle |
|---|---|---|
| Colors | 3 | 7 (5+2) |
| Feed Width | 800 mm | 800 mm |
| Printing Width | 700 mm | 700 mm |
| Printing Speed | ≤ 120 m/min | ≤ 120 m/min |
| Total Power | 12 kW | 25 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
PP woven fabric and kraft paper over 60 g/m², in rolls up to 800 mm wide.
3, 4 or 7-color (5+2) configurations; both-side printing via different threading (5+2, 4+3, 3+3).
Up to 120 m/min with ±0.5mm registering accuracy.
Yes. Different threading methods enable simultaneous double-side printing on 7-color models.
One operator runs the whole machine via remote control.
Rubber plates 4–5mm thick with a 1,271mm plate perimeter.
Vertical electric registering plus horizontal manual adjustment, accuracy within ±0.5mm.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
