High-speed block bottom valve sack machine for cement, chemical, fertilizer, mortar and building material packaging. Stable output of 120–130 bags/min with surgical-level servo precision, standard AI visual inspection and scrap rate below 0.1% — powered by patented, independently developed design.
Stable Speed
Dynamic Error

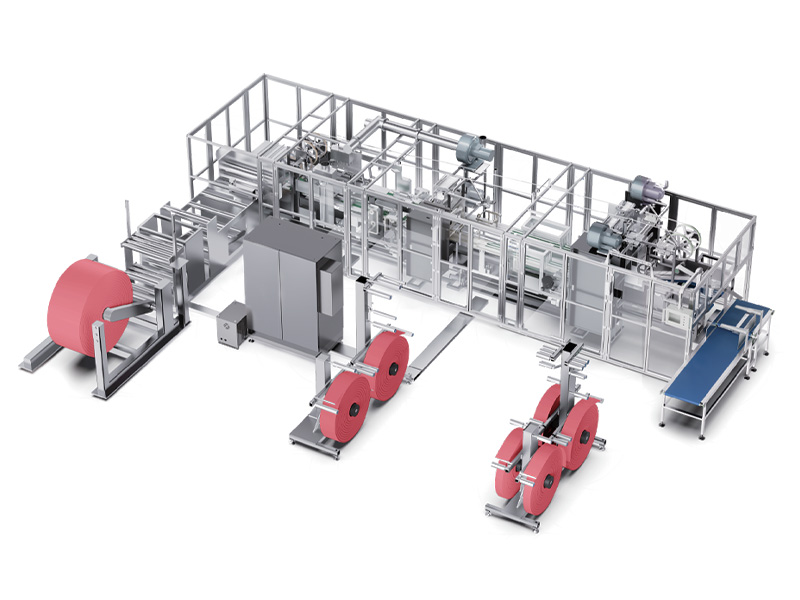

The HSFK-J1-FK008-VS is a high-speed precision block bottom valve sack system for cement, chemical, fertilizer, mortar and building material packaging. It runs stably at 120–130 bags/min, with millisecond-level control, surgical-grade servo precision (2kHz response, <0.01mm dynamic error) and intelligent energy saving of 10–30%.
Innovative bag opening technology combines adsorption with conveying for efficiency, stability and long life. The unique heat sealing system keeps air blowing uniform and temperature constant for higher weld quality — nozzle width adjustable in 1mm units without stopping, and single-sided lamination heat-sealed easily.
A standard AI visual inspection system detects fabric and bag-making defects and rejects defective bags online. Independently developed with 200+ national patents and avoiding 20+ foreign patents — completely independent IP with no infringement risk; control system free upgrades for 3 years.
Suitable Material：PP/PE tubular woven fabric (single or double-sided lamination), with valve sticker and bottom sticker.
| Basic Parameters | |
| Parameter | Specification |
| Model | HSFK-J1-FK008-VS |
| Bag Length (L) | 350–750 mm |
| Bag Width (W) | 300–600 mm |
| Bottom Width (W1) | 80–160 mm |
| Valve Length | 80–200 mm |
| Total Length (L+W1) | 430–910 mm |
| Max Roll Dia. | Φ1,500 mm |
| Max Sticker Roll Dia. | Φ1,100 mm |
| Stable Speed | 120–130 bags/min |
| Installed Power | ~150 kW |
| Weight | ~17,000 kg |
| Dimensions | 12,000×7,500×2,500 mm |
| Precision & Performance | |
| Parameter | Value |
| Servo Response | 2 kHz |
| Dynamic Error | <0.01 mm |
| Scrap Rate | <0.1% |
| Missed Detection | <0.05% |
| Rejection Rate | ≥96.5% |
| Bag Weight | 75g (±2g) for 25–50kg bags |
| Detection Standard | National standard |
| Environment & Energy | |
| Parameter | Value |
| Operating Temp | -20°C to 60°C |
| Failure Rate | <0.5% |
| Energy Saving | 10–30% |
| Air Source | ≥0.6 MPa, <1.5 m³/min |
| Coated Film | 18–20 g/㎡ |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Standard AI vision inspects every bag and rejects defects online.
Constant-temperature sealing; 1mm nozzle steps; single-side lamination easy.
Independent servos, one-click spec change on the touchscreen.
<0.01mm dynamic error; scrap rate below 0.1%.
200+ own patents; 20+ foreign patents avoided — litigation-free.
-20~60°C anti-interference; failure <0.5%; saves 10–30% energy.
Typical Products
Cement valve bags
Bag Type
Block bottom valve sack
Key Benefits
120–130 bags/min, <0.1% scrap rate, AI vision
Typical Products
Mortar, plaster, dry mix
Bag Type
Block bottom valve sack
Key Benefits
Wide temperature range, dust-proof, reliable 24/7 operatio
Typical Products
Chemical powder, fertilizer
Bag Type
Block bottom valve sack
Key Benefits
Single-sided lamination with heat-sealable properties
Typical Products
Flour, sugar, starch
Bag Type
Block bottom valve sack
Key Benefits
Clean, contamination-free welding
Typical Products
Seed, feed
Bag Type
Block bottom valve sack
Key Benefits
One-touch format change
Typical Products
Bentonite, sand, mineral powder
Bag Type
Block bottom valve sack
Key Benefits
Heavy-duty and durable, low maintenance

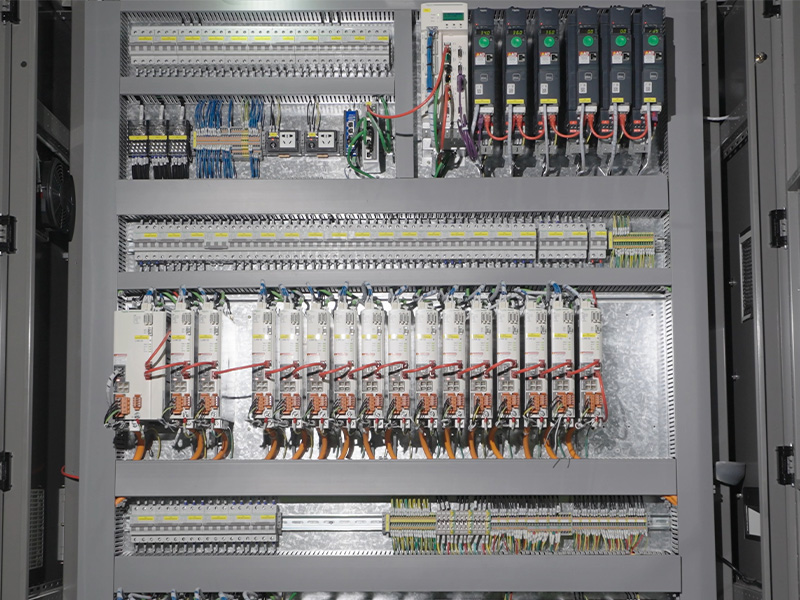

Super computing power with millisecond scanning and large-scale I/O expansion. Instantly processes massive signals and coordinates multiple motors — efficiency +30%.

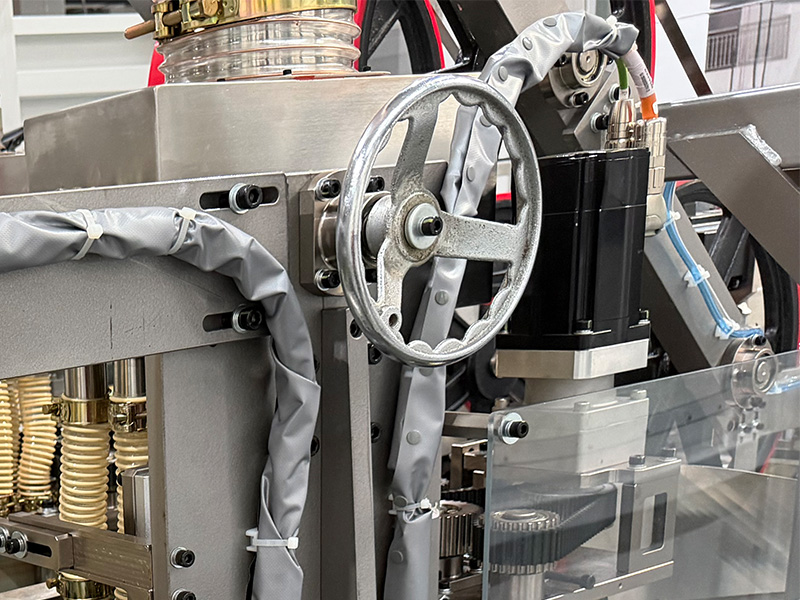

2kHz speed-loop response and <0.01mm dynamic error deliver needle-level positioning at 120–130 bags/min — skew-free sealing, burr-free cutting, scrap reduced 50%.

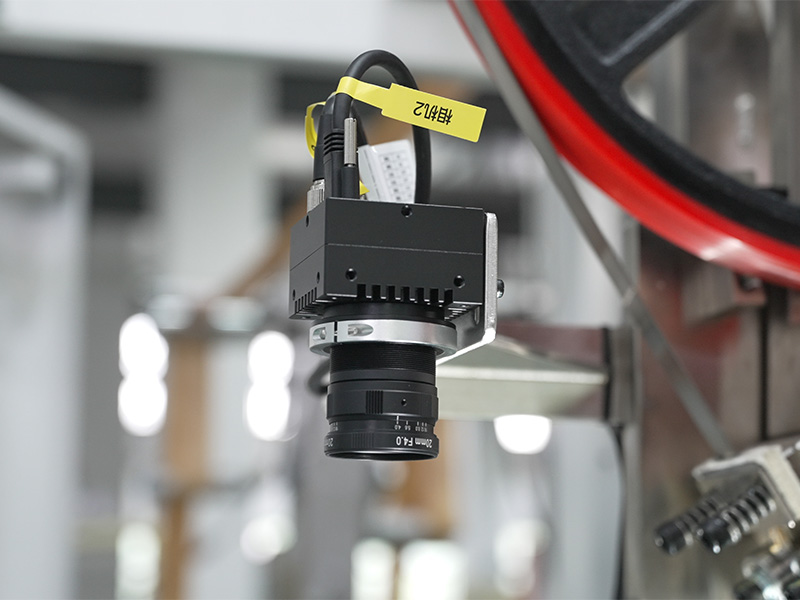

4K line-scan camera with AI adaptive recognition. Detects base fabric defects (holes, joints, running weft/warp, missing yarn, scratches) and bag defects (patch offset, patch fold, bottom not formed). Missed detection <0.05%.

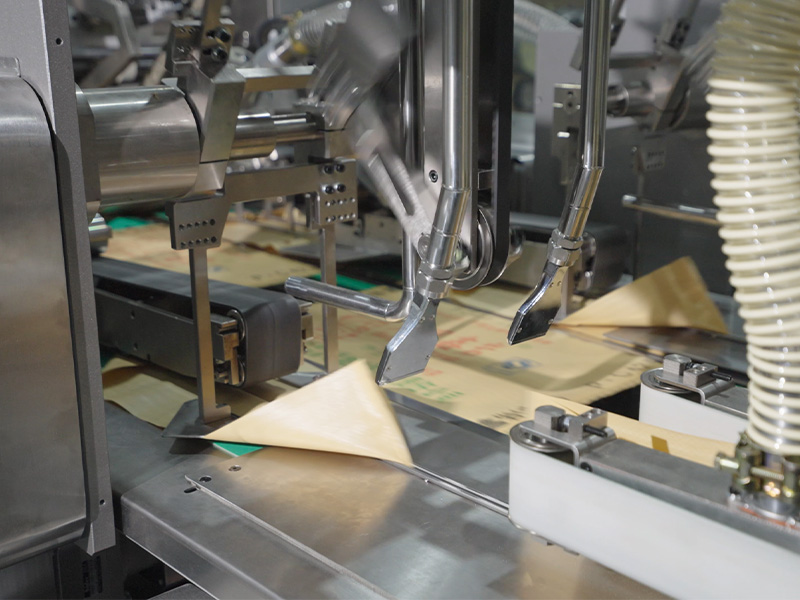

Combines adsorption with conveying system, dual-servo segmented control, opens both sides of the bag mouth at a fixed angle — high efficiency, stability, long life, easy maintenance.
Uniform air blowing and constant temperature. Nozzle width adjustable in 1mm units without stopping; single-sided lamination heat-sealed easily — higher, consistent weld quality.

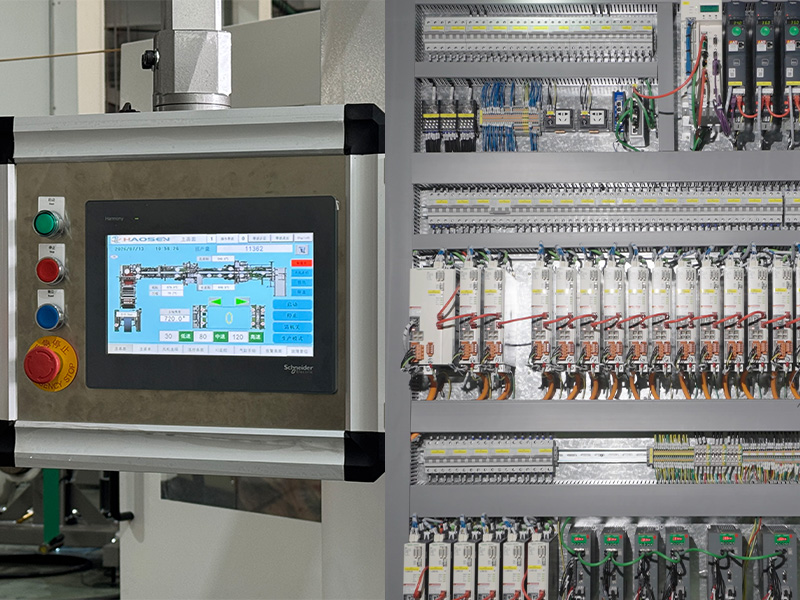

All functions driven by independent servos: bag width, valve position and bottom sticker position adjustable on the touchscreen — one-click spec change, no stopping, no sticker folding.

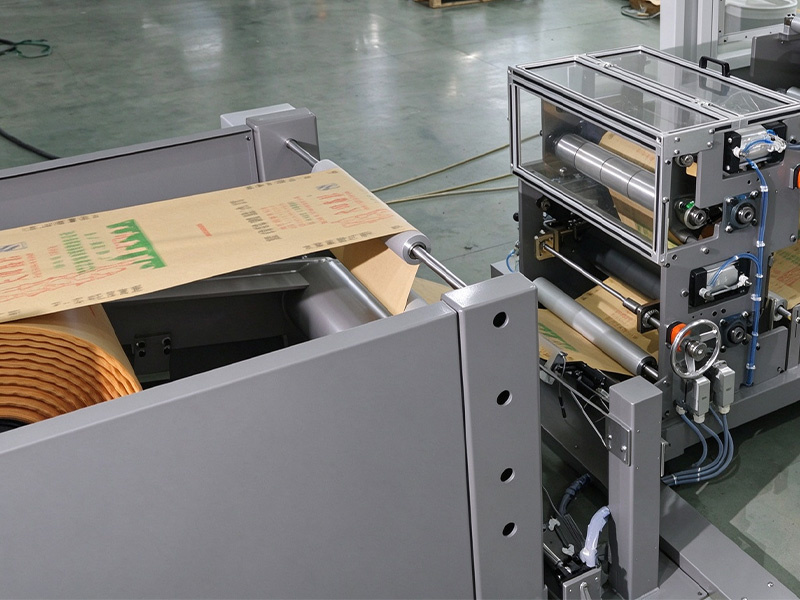

Passive unwinding with magnetic powder brake, imported edge corrector (deviation ≤±1mm), roll-end alarm, auto stop on material break while keeping tension.

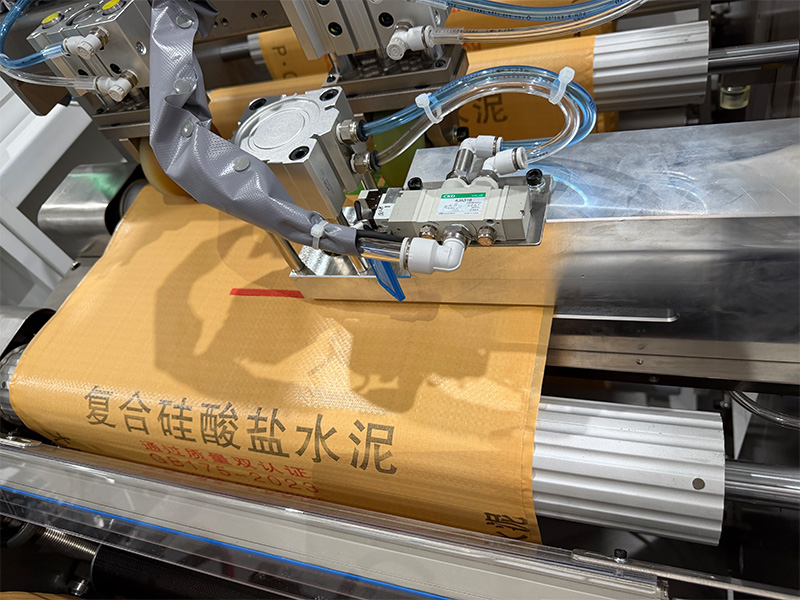

Independent servo cutter and transfer mechanism; front/back positions adjustable on the touchscreen without stopping the machine — accurate placement every time.

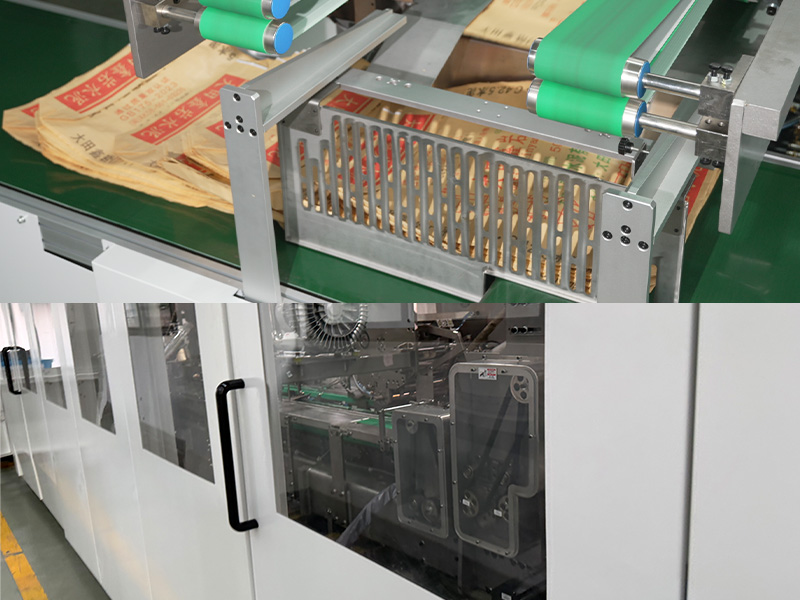

Servo-controlled conveying with counting and stacking, travel distance adjustable on the touchscreen; aluminium frame with stainless-steel mesh guards, auto stop when safety door opens.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Millisecond scanning coordinates every axis.
<0.01mm error at 130 bags/min.
Missed detection <0.05%; replaces 1–2 pickers.
No stopping, no mechanical adjustment.
Constant temperature; single-side lamination easy.
-20~60°C anti-interference, failure <0.5%.
Vector control saves 10–30% energy.
200+ patents, 20+ foreign patents avoided.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Length (L) | 350 mm | 750 mm |
| Bag Width (W) | 300 mm | 600 mm |
| Bottom Width (W1) | 80 mm | 160 mm |
| Valve Length | 80 mm | 200 mm |
| Stable Speed | 120 bags/min | 130 bags/min |
| Installed Power | ~150 kW | ~150 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
A high-speed automated machine that converts PP/PE woven fabric rolls into finished block bottom valve sacks for cement, mortar, chemical powder and fertilizer packaging.
Stable working speed is 120–130 bags/min; actual output depends on bag size, material and operating conditions.
Bag length 350–750mm, width 300–600mm, bottom width 80–160mm, valve length 80–200mm — covers standard 25kg and 50kg cement/chemical bags.
Yes, AI visual inspection is standard — 4K line-scan camera with AI defect recognition, missed detection <0.05%.
Yes. The unique heat sealing system handles single-sided lamination easily with consistent weld quality.
One click on the touchscreen — bag width, valve and sticker positions adjust automatically without stopping the machine.
No. Independently developed with 200+ national patents; 20+ foreign patents avoided including 3 key inventions — no litigation risk.
On-site installation and training, 30-minute remote response, Asia spare-parts warehouse, and free control system upgrades for 3 years.
