Four proven series cover every need—from sheet single-side lamination to twin-extruder double-side lamination with pre-printed film. Line speed 20–200 m/min, composite film force ≥3 N, with non-stop roll change and PLC gram-weight control.
Line Speed
Installed Power

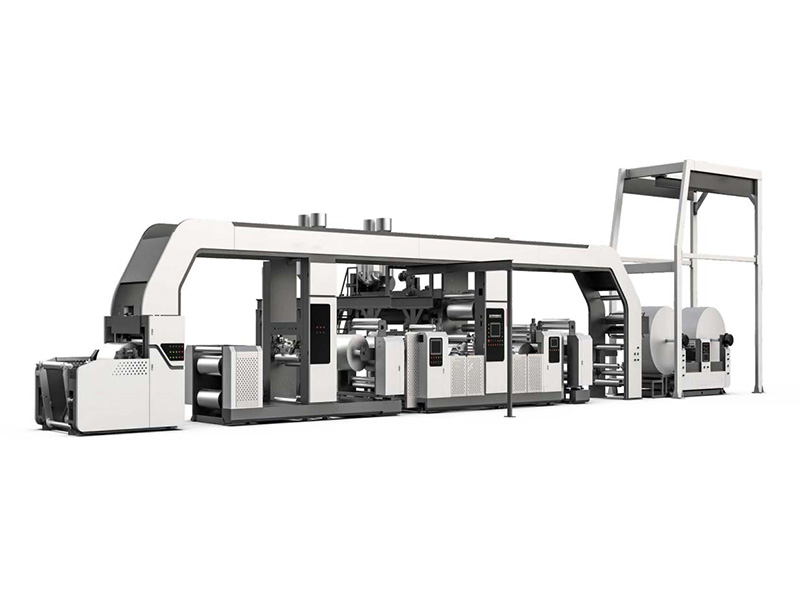

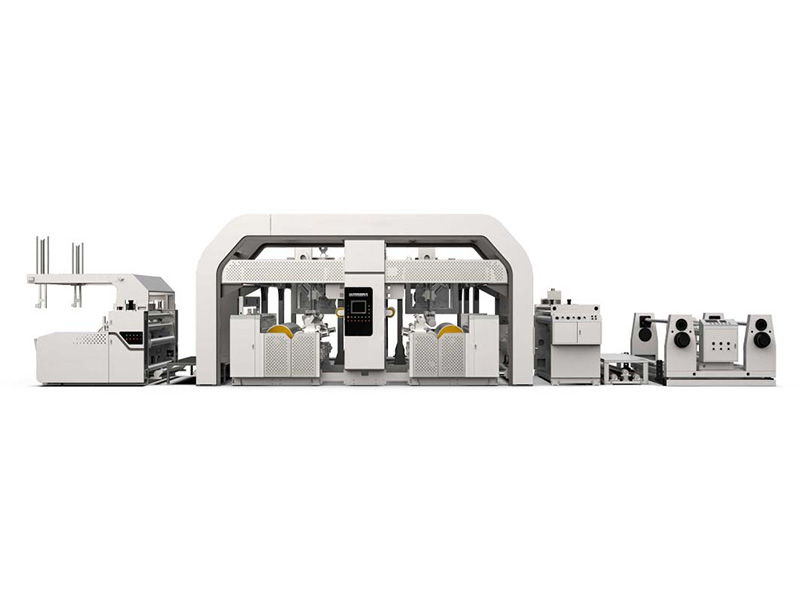

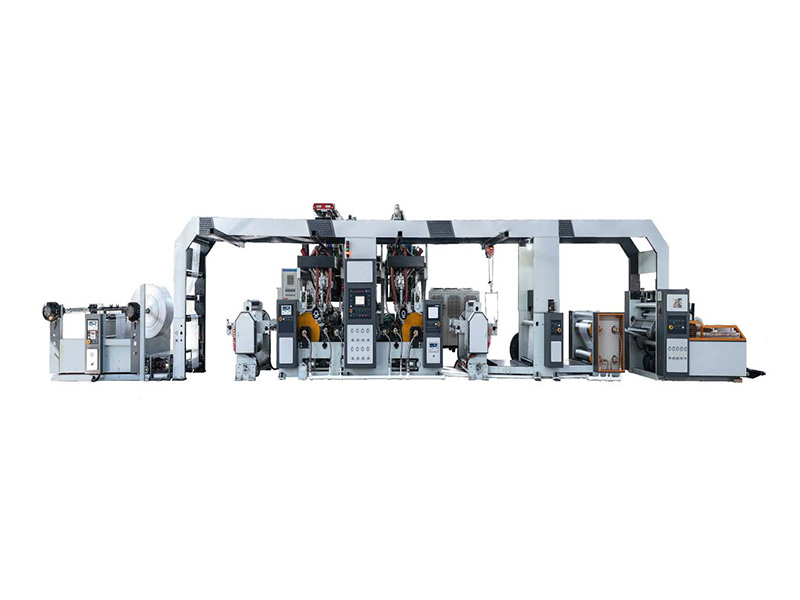

This machine melt-extrudes PE/PP resin through a flat T-die into a thin film, then laminates it onto PP woven fabric at high temperature to form a waterproof, dust-proof, reinforced surface. A complete line covers unwinding, corona treatment, extrusion, lamination, edge trimming, and rewinding—all synchronized by PLC.
Four series are available, so you pick the exact configuration for your products. The Sheet Single-Side series laminates one side of sheet material—ideal for picnic moisture-proof mats. The Single-Extruder Twin-Die series suits ordinary woven bags with moderate adhesion needs. The Twin-Extruder Twin-Die Double-Side series delivers strong adhesion on both sides—the choice for valve bags and bag-in-bag lamination. The Pre-Printed Film series applies colorful printed film for retail-grade packaging.
Quality is built in: double-side 6 kV corona treatment raises surface energy for firm adhesion, a preheating oven dries the base fabric to boost bonding strength, and 260°C lamination is followed by fast internal-cooled rollers to protect the fabric. Key electrical parts are global brands—Mitsubishi PLC, Schneider contactors, Omron relays.
Suitable Material ：PP woven fabric laminated with PE/PP resin film, or pre-printed OPP film; film thickness 0.01–0.1 mm.
| Basic Information | ||||
| Parameter | Single-Side | Single-Extruder Twin-Die | Twin-Extruder Twin-Die | Pre-Printed Film |
| Extruders | 1 | 1 | 2 | 2 |
| Dies | 1 | 2 | 2 | 2 |
| Laminated Sides | 1 | 1 | 2 | 2 |
| Typical Use | Sheets, picnic mats | Standard Woven Bags | Valve Bags, Bagging Machines | Color-Printed Retail Packaging |
| Adhesion Requirement | low | Medium | High | High |
| Performance & Quality / Key Components | ||||
| Parameter | Value | Component | Specification | |
| Line Speed | 20 – 200 m/min | Screw | 38CrMoAlA nitrided, double-mixing type | |
| Installed Power | 85 kW | Screw | P20 flat die, 6-zone heating | |
| Composite Film Force | ≥ 3 N | Extruder Heating | 28 kW ceramic heater | |
| Finished Film Width | 800 mm | Main Motor | 15 kW inverter-controlled | |
| Compound Width | 200 – 800 mm（adjustable） | Corona Treatment | Double-side 6 kV | |
| Finished Film Thickness | 0.01 – 0.1 mm | Traction Rolls | Φ320 hard-chrome steel + rubber, internal spray cooling | |
| Screw Diameter | Φ95 mm | PLC | Mitsubishi | |
| Screw L/D Ratio | 30:1 | Touch Screen | Kunlun Tongtai | |
| Screw Hardness | HV ≥ 970 | Contactors | Schneider | |
| Relays | Omron | |||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Double-side 6 kV corona + preheating dry lift composite force to ≥3N.
Double-station unwinding with automatic splicing—no stop, no waste.
PLC synchronized control manages gram weight and thickness automatically.
260°C bonding plus fast internal-cooled rollers protect the fabric.
Auto trimming with crusher and feeder recycles edge waste.
Auto tension control and oscillating winding give tight, even rolls.
Typical Bags
Standard Woven Bags with Double-Sided Laminating
Recommended Series
Single/Twin-Extruder
Key Benefits
Moisture-proof and leak-proof, with moderate adhesion
Typical Bags

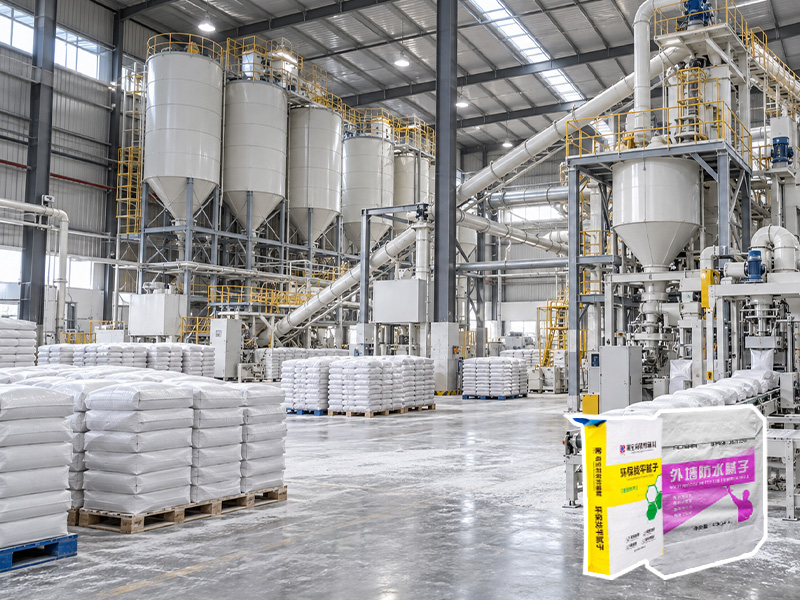

Laminating Valve Bags After Production
Recommended Series
Twin-Extruder
Key Benefits
Strong adhesion on both sides; crisp, structured bag body
Typical Bags

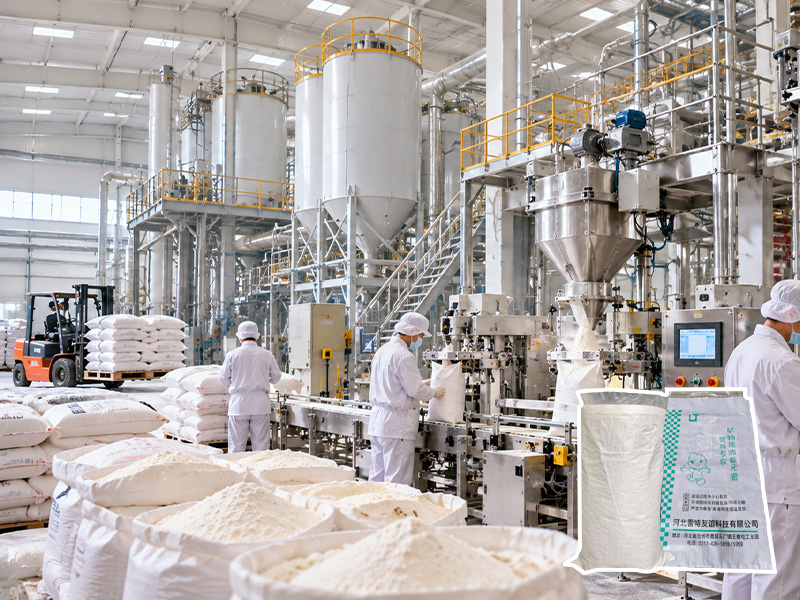

Laminated Liner for Bags
Recommended Series
Twin-Extruder
Key Benefits
High adhesion, good composite strength
Typical Bags
Picnic Waterproof Mat
Recommended Series
Sheet Single-Side
Key Benefits
Single-sided lamination, low cost
Typical Bags

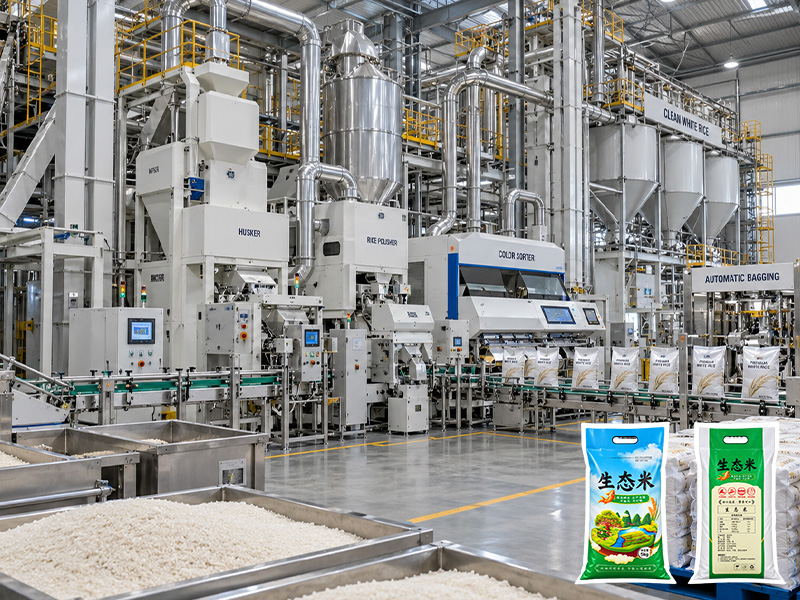

Color-Printed Laminated Bags
Recommended Series
Pre-Printed Film
Key Benefits
Beautifully designed and visually appealing

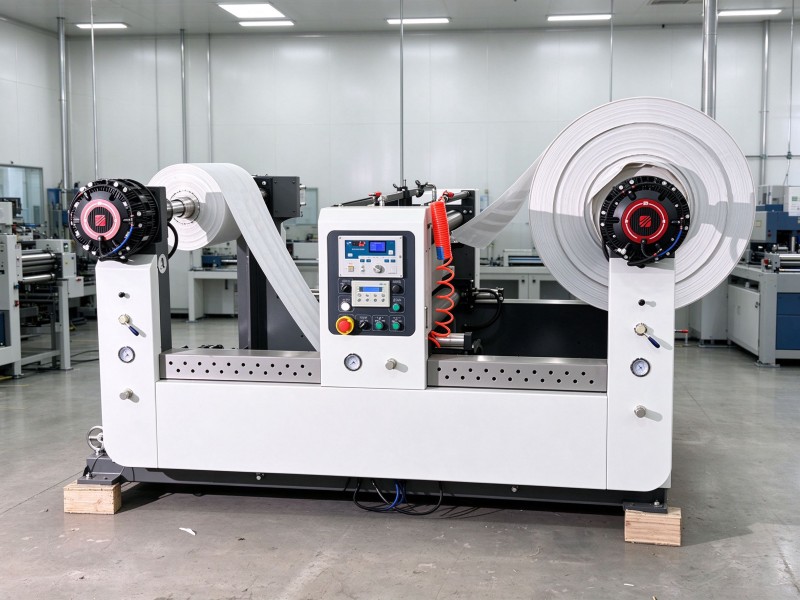

Dual unwinding stands with air shafts, pneumatic brakes and servo EPC correction. Automatic splicing joins the new roll without stopping the line.

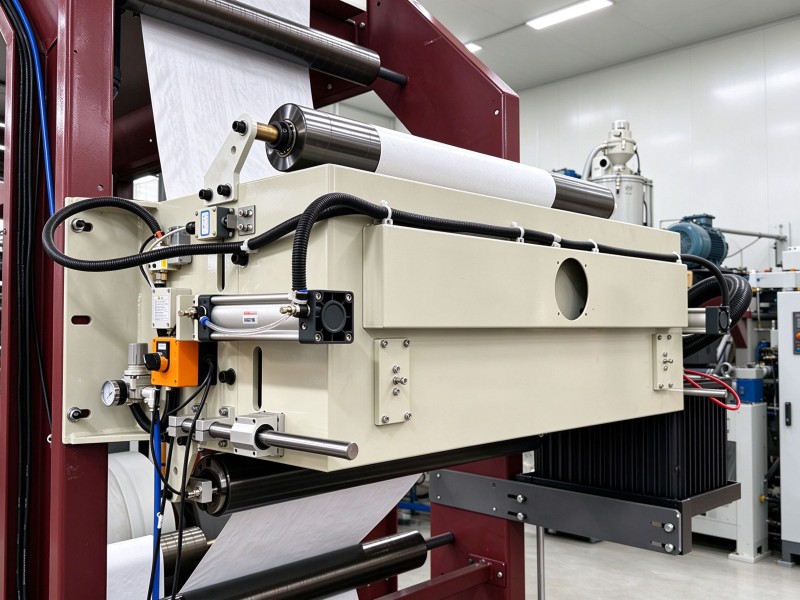

6kV high-voltage discharge roughens both surfaces, increasing contact area and raising adhesion without damaging the bag.

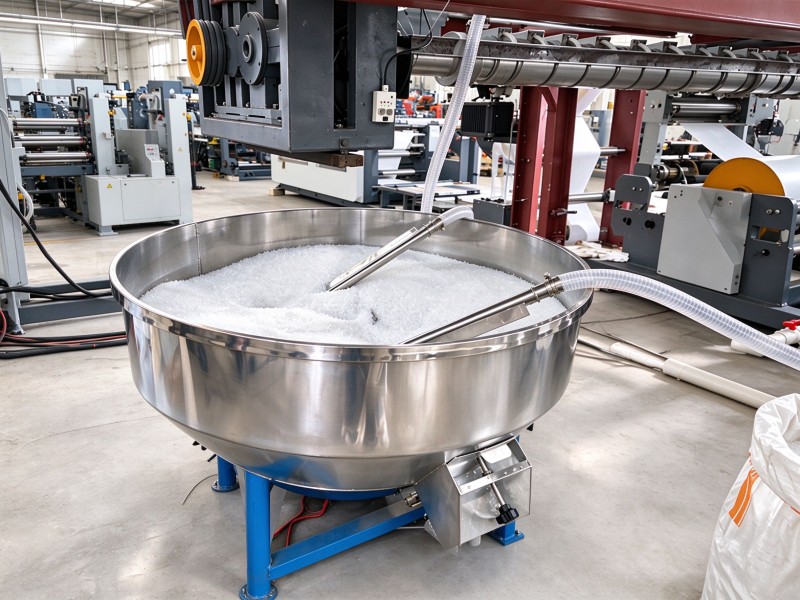

38CrMoAlA nitrided double-mixing screw, 30:1 L/D, ceramic heater, quick screen changer, and auto hopper with drying—stable melting and even film output.

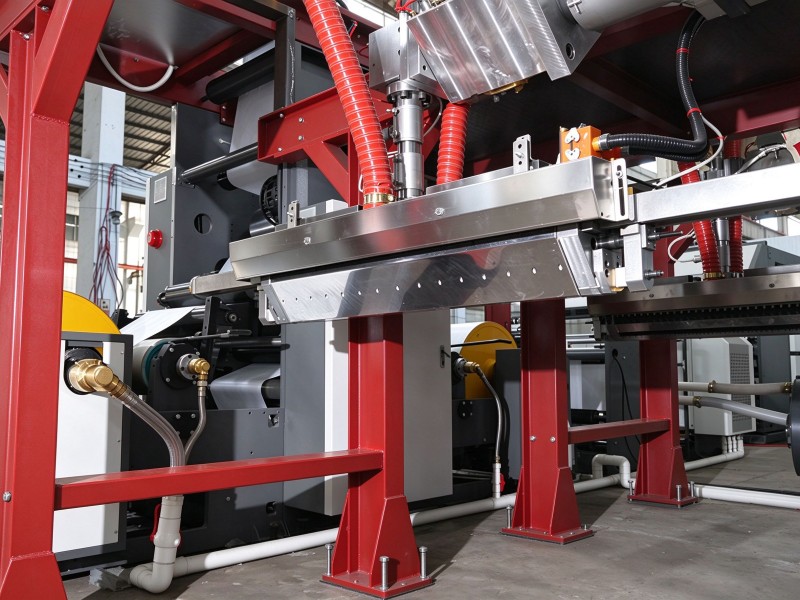

P20 flat die with 6-zone temperature control and movable deckles; film width and thickness are precisely controlled for even gram weight.

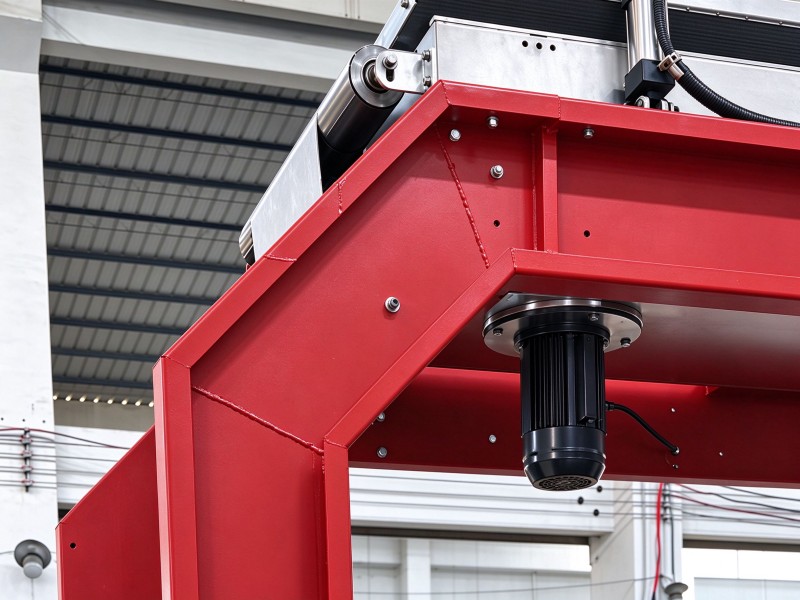

Preheat rollers dry the base fabric surface before lamination, greatly improving composite bonding strength.

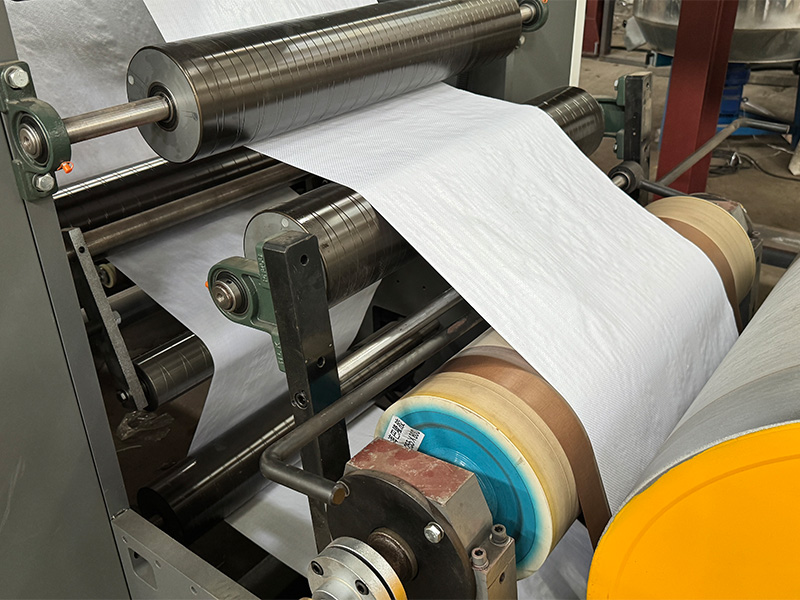

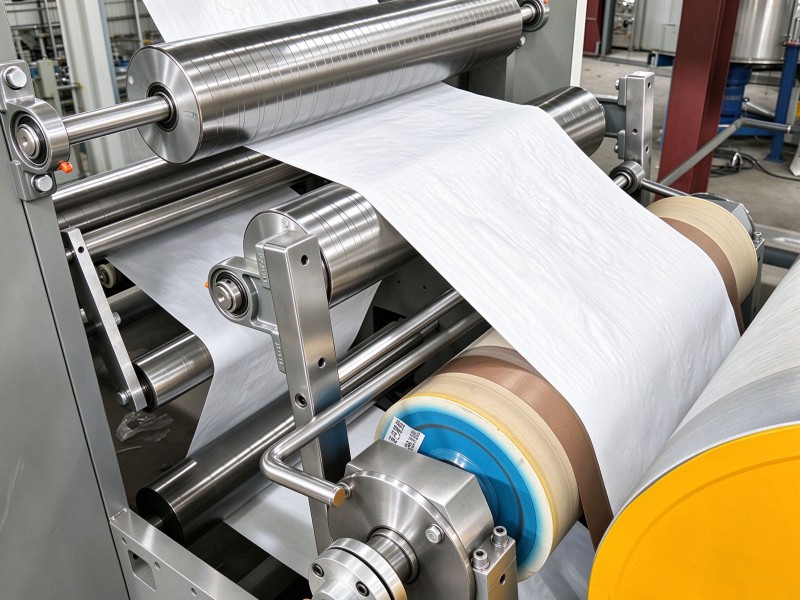

Four-roll group with Φ320 hard-chrome steel and rubber rolls, internal spray cooling, pneumatic pressure with visual gauge; 260°C bonding then fast cooling protects the fabric.

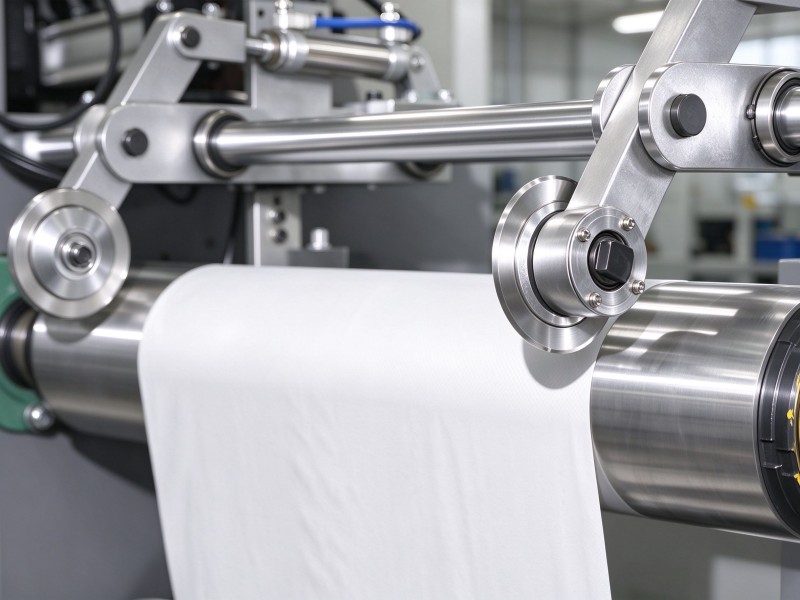

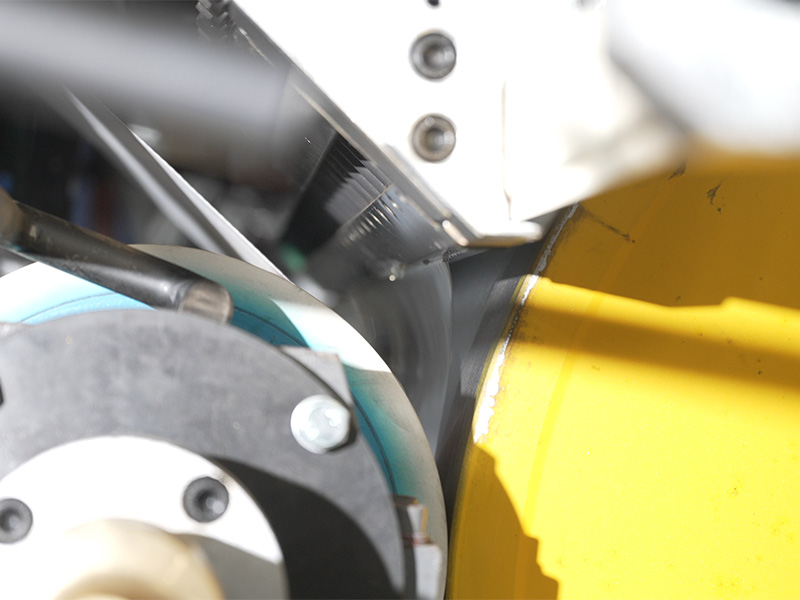

Servo edge guide, hardened circular cutters, trim crusher and feeder recycle edge waste back into production.

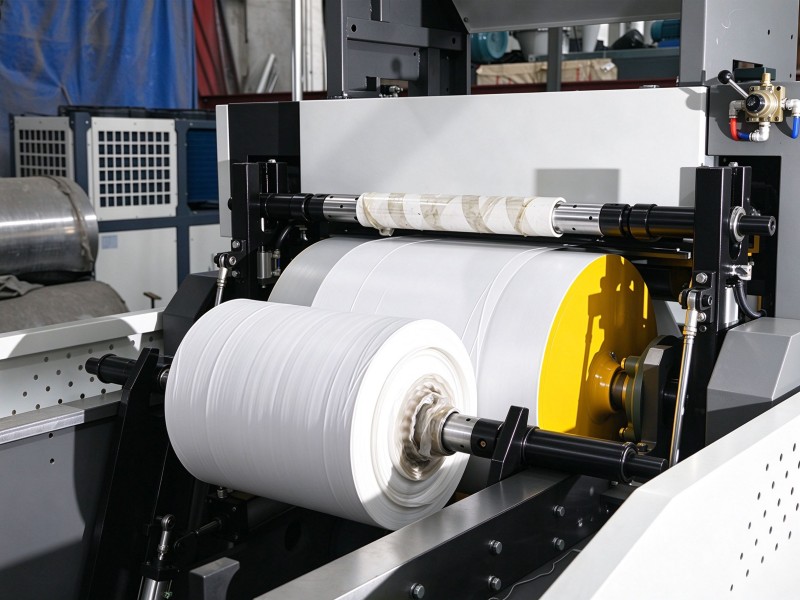

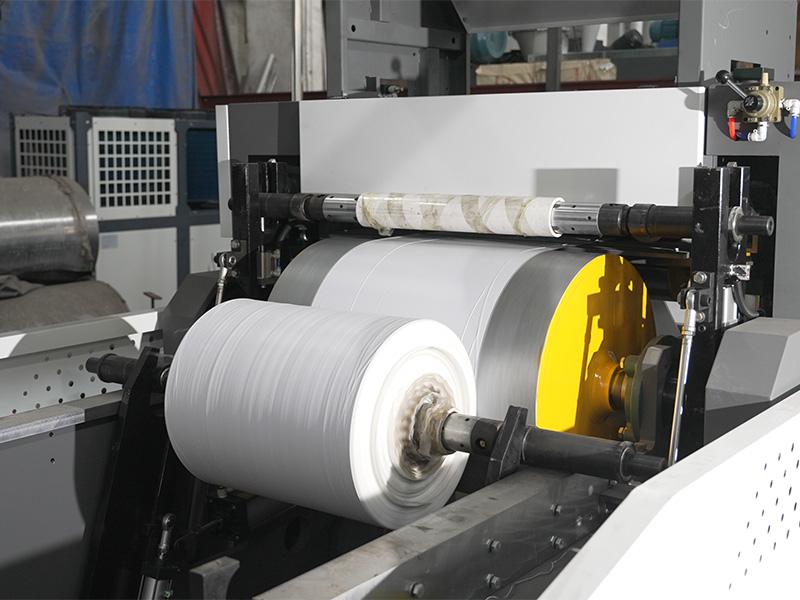

Back-to-back friction winding with automatic cross-cut and non-stop roll change; auto tension and oscillating lay-on roller produce tight, even rolls.

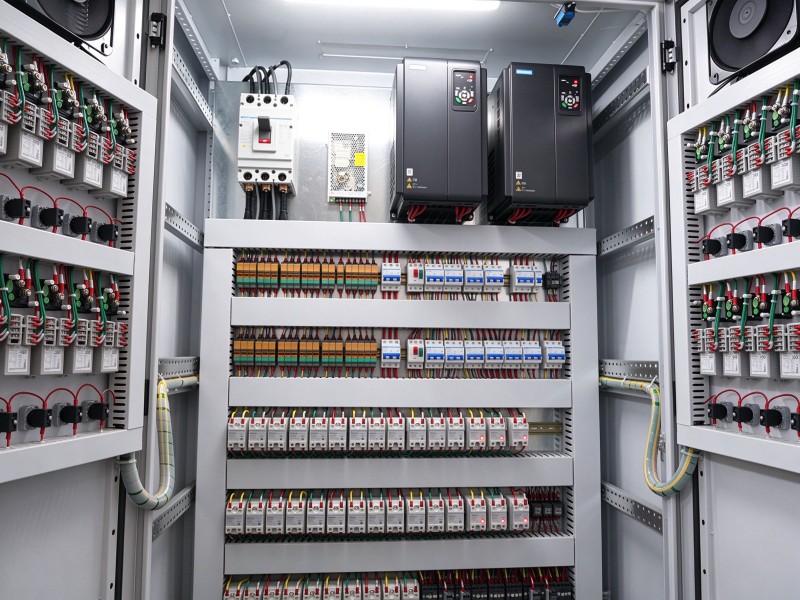

Mitsubishi PLC with touchscreen synchronizes speed, gram weight and thickness; global-brand electrical parts (Schneider, Omron) ensure reliability.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
From sheet single-side to twin-extruder double-side and printed film.
Double-side 6kV corona + preheating: composite force ≥3N.
Automatic splicing and roll change keep the line running.
PLC synchronized control manages thickness automatically.
260°C bonding then fast internal-cooled rollers.
Mitsubishi PLC, Schneider, Omron — stable and reliable.
Trim crusher recycles edge waste into production.
Extruder, dies, traction, winder — one team, one order.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Line Speed | 20 m/min | 200 m/min |
| Film Thickness | 0.01 mm | 0.01 mm |
| Compound Width | 200 mm | 800 mm |
| Screw Diameter | Φ95 mm | Φ95 mm |
| Installed Power | 85 kW | 85 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
It melt-extrudes PE/PP resin into film and bonds it onto PP woven fabric at high temperature for a waterproof, reinforced surface.
Single-side suits sheets and picnic mats; twin-extruder double-side suits valve bags and high-adhesion bags; printed-film suits retail packaging. Tell us your bag type and we recommend.
Double-side 6kV corona treatment, preheating drying and precise temperature control deliver ≥3N composite force.
No. Double-station unwinding with automatic splicing and back-to-back winder keep production running.
PP woven fabric laminated with PE/PP film, or pre-printed OPP film, 0.01–0.1mm film thickness.
Finished film 0.01–0.1 mm, compound width 200–800 mm adjustable.
Line speed 20–200 m/min with PLC synchronized control.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
