Cut, insert the PE inner bag, sew the bottom and print front & back in one continuous line. Patented smokeless cutting leaves smooth, food-grade edges; automatic inserting and sewing run with one operator; integrated roll-to-roll printing (up to 6 colors) eliminates a separate printing process.
Production Speed
Printing Colors
The cutting-sewing-inserting-printing machine integrates bag cutting, PE inner-bag inserting, bottom sewing and front & back printing in one continuous line. It processes ordinary PP woven bags, film-laminated bags and OPP color-printed bags — eliminating a separate printing process and cutting floor space by more than half.
Patented smokeless cutting with cold & hot knife options produces smooth, burr-free, food-grade edges; the inner bag is automatically inserted and sealed, and the bottom can be sewn together with the outer bag or sealed separately. EPC automatic correction and electric photo tracking hold cutting accuracy to ±1mm.
Integrated roll-to-roll printing prints the front and back in one pass with a solid shaft and drying device. PLC central control with a 10-inch touchscreen sets, records and stores parameters; the machine can also run independently as a cutting & sewing machine.
Suitable Material: Ordinary PP woven bags, film-laminated woven bags, OPP color-printed bags — with PE inner bag.
| Models | |||
| Parameter | HS-CSI-P-800A | HS-CSI-P-800B | |
| Fabric Roll Outer Dia. | ≤1,400 mm | ≤1,400 mm | |
| Bag Cutting Width | 400–750 mm | 400–750 mm | |
| Bag Cutting Length | 700–1,280 mm | 700–1,280 mm | |
| PE Tube Cutting Width | ≤680 mm | ≤680 mm | |
| Cutting Accuracy | ±1 mm | ±1 mm | |
| Edge Folding Width | 15–30 mm | 15–30 mm | |
| Sewing Stitch | 7–12 mm | 7–12 mm | |
| Production Speed | 28–40 pcs/min | 28–40 pcs/min | |
| Printing Colors | 6 (front 5 + back 1 / front 6 + back 0) | 3 (front 2 + back 1 / front 3 + back 0) | |
| Total Power | 25 kW | 25 kW | |
| Weight | 6.8 T | 6.8 T | |
| Dimensions | 17,000×7,000×1,500 mm | 17,000×7,000×1,500 mm | |
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Bottom Sewing | Inner + outer sewn together, or sealed separately | Cutting Knife | Patented smokeless knife, cold & hot |
| Printing Shaft | Solid shaft with drying device | Frame | 10mm carbon steel, CNC laser cut + No.8 channel steel base |
| Control | PLC + 10-inch touchscreen | Correction | EPC auto correction, servo motor |
| Standalone Mode | Cutting & sewing machine alone | Conveyor Belt | PU belt, 5× PVC life |
| Output | Auto output, counting, transfer, stacking | Guide Rails | Linear guide rails |
| Optional Baling | Hydraulic baling machine | Sewing Head | Famous Chinese brand, auto alarm on thread break |
| Roll Lifting | Motor + chain drive | ||
| Transmission | Servo-synchronized upper & lower manipulators | ||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Roll-to-roll printing built in, front & back in one pass.
Patented smokeless cutting: smooth, food-grade edges.
Auto inserting & sealing; inner bag never shifts.
Sewn together or sealed separately, auto counting.
One line, half the floor space, 25 kW total.
PLC + 10-inch touchscreen, one operator runs it.
Typical Bags

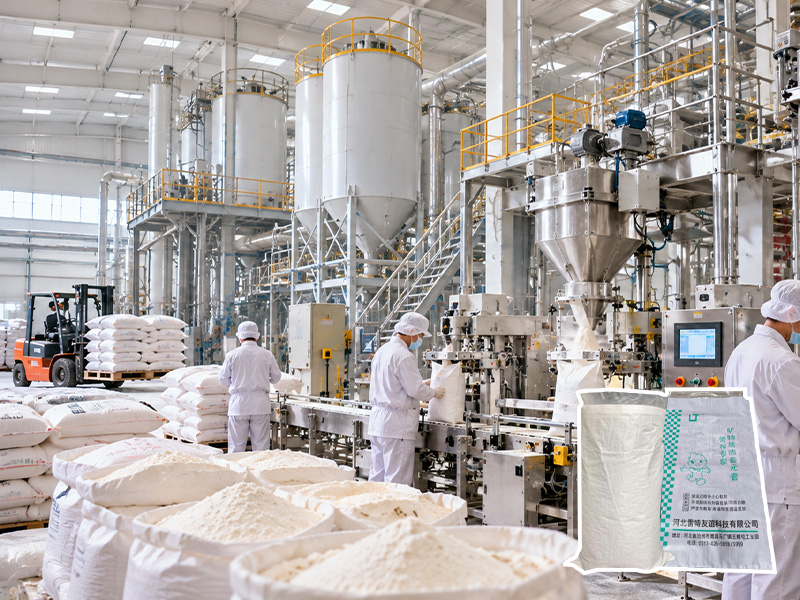

Flour, rice, sugar bags
Key Benefits
Food-grade cutouts, attractive full-color printing
Typical Bags

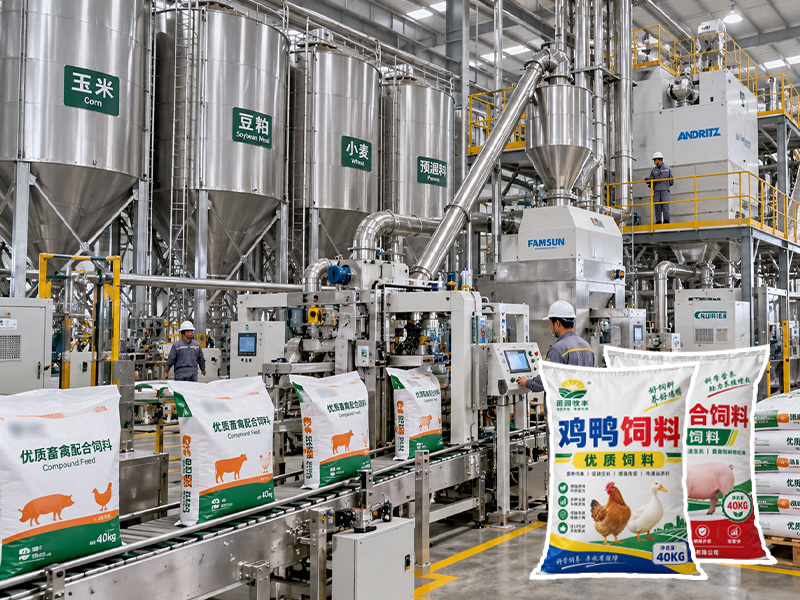

Feed bags
Key Benefits
Moisture-proof inner bag, secure fit
Typical Bags

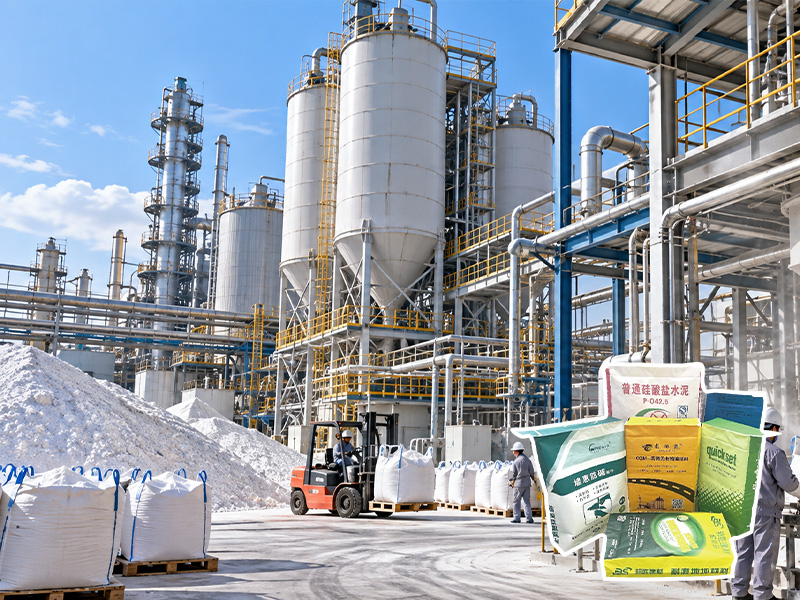

Fertilizer & chemical bags
Key Benefits
Clear printing, automatic counting
Typical Bags

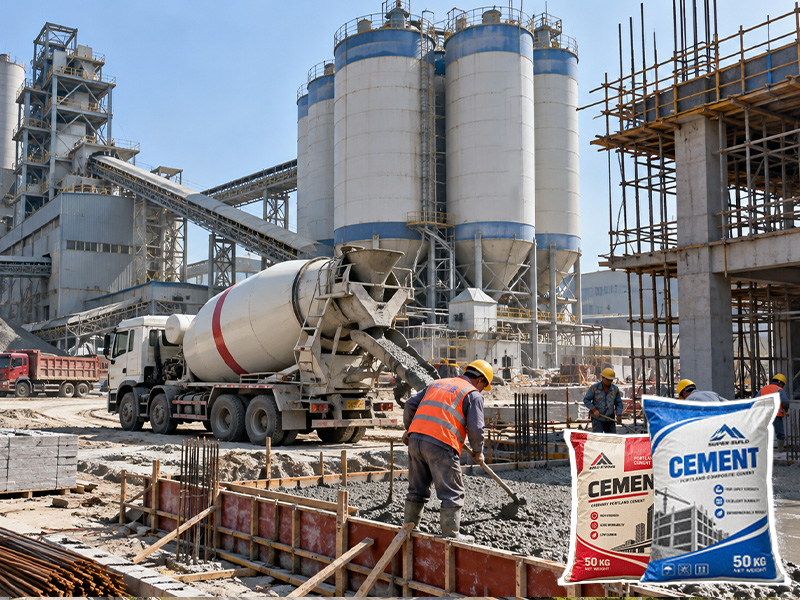

Cement sacks
Key Benefits
High-speed cutting, secure bottom stitching
Typical Bags

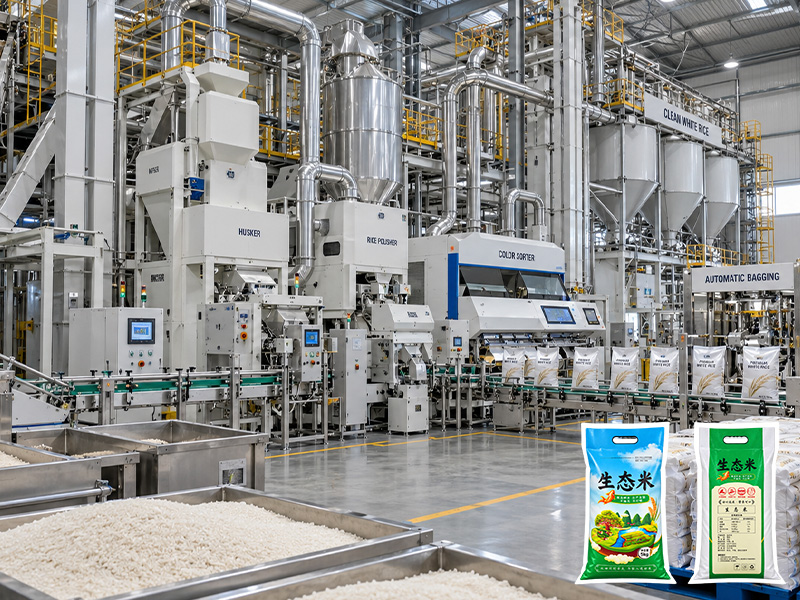

Seed & grain bags
Key Benefits
Freshness-preserving inner bag, double-sided printing
Typical Bags
OPP color-printed bags
Key Benefits
Printing on both sides, attractive finished product

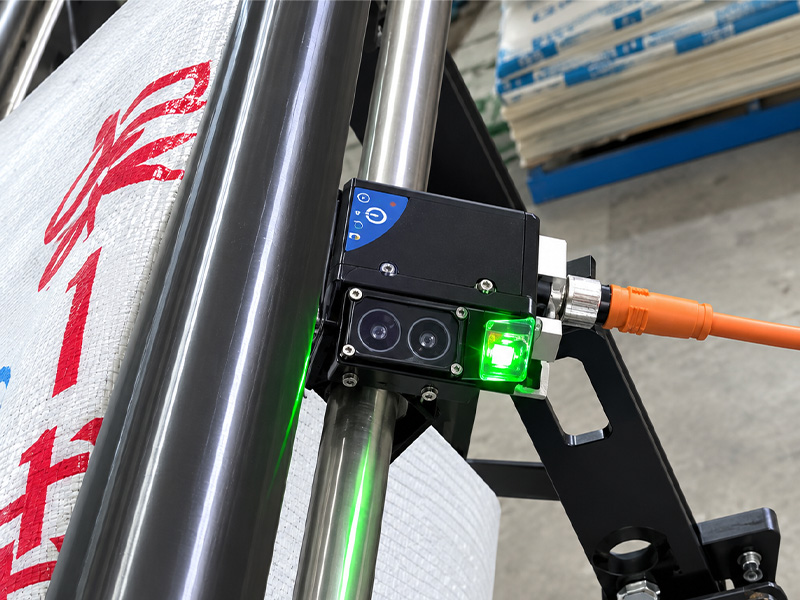

EPC automatic correction with servo motor keeps feeding straight; electric photo tracking controls bag length precisely; motor + chain roll lifting cuts consumables and maintenance.

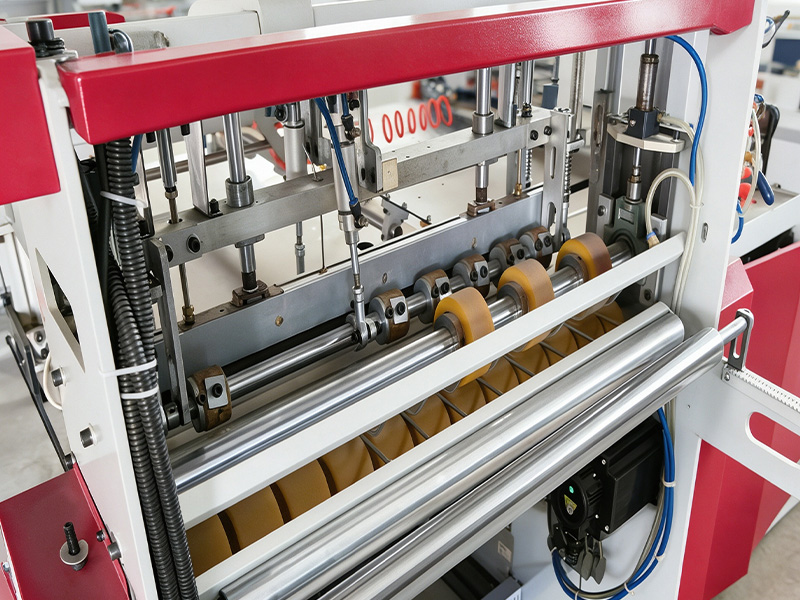

CNC laser-cut 10mm carbon steel frame stays rigid at high speed; patented smokeless knife with cold & hot options leaves smooth, food-grade edges.

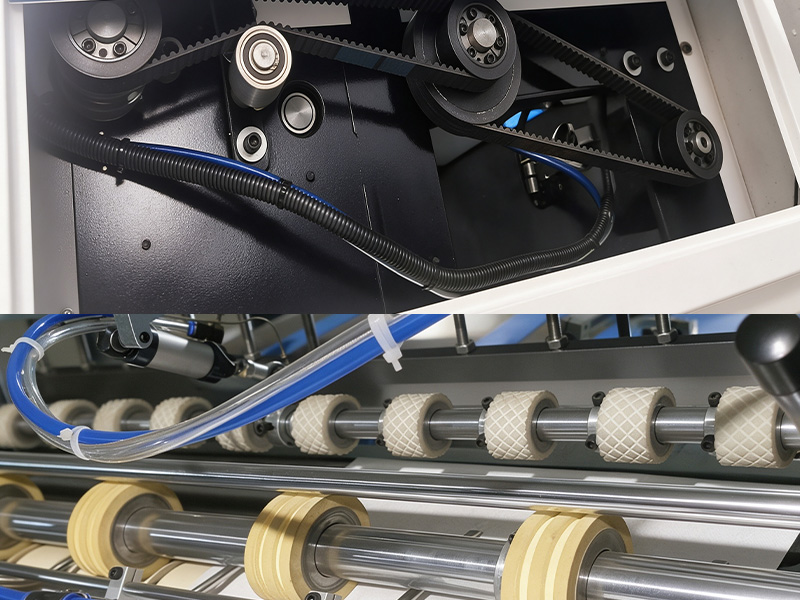

Separated silicon rollers open the bag mouth — long service life, easy replacement; upper & lower manipulators feed both thin and thick bags.

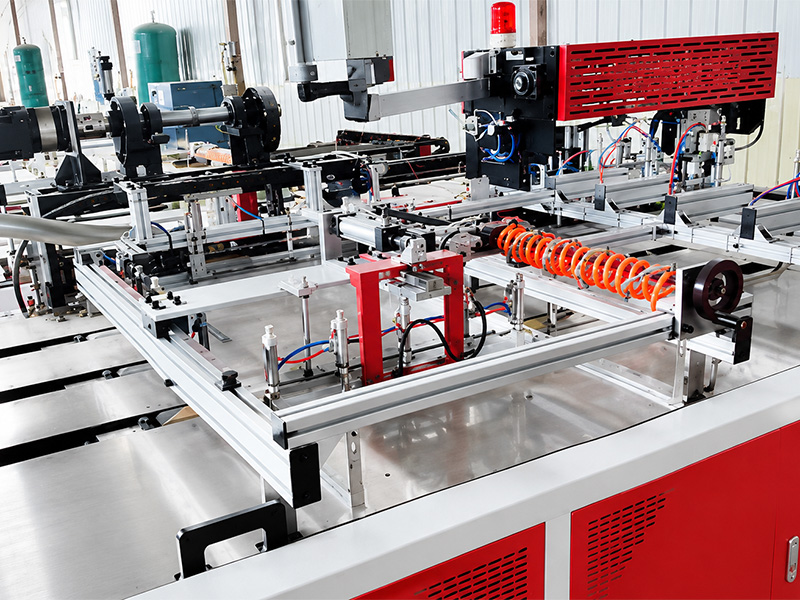

PE film roll, cutting and inserting run automatically; the inner bag is placed into the PP fabric with no manual work.

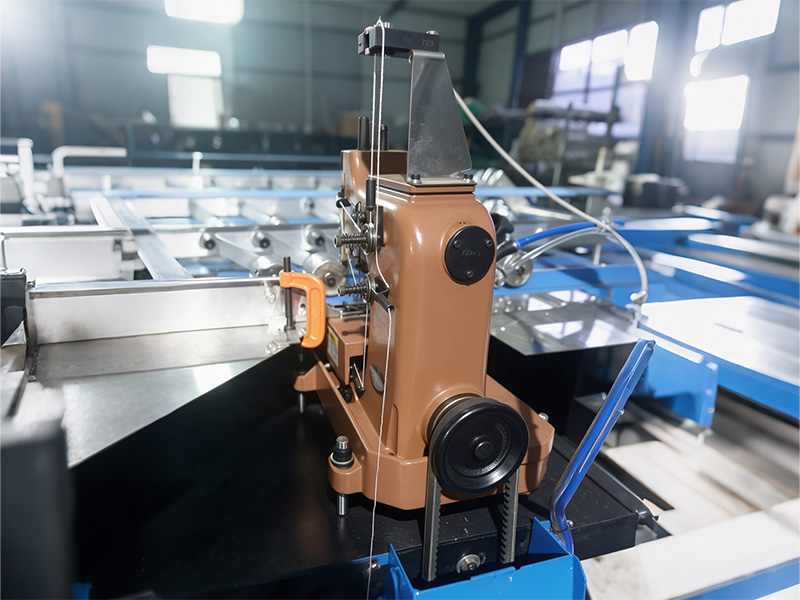

Famous Chinese sewing head with auto alarm and stop on thread break; bottom can be sewn with inner + outer together or sealed separately.

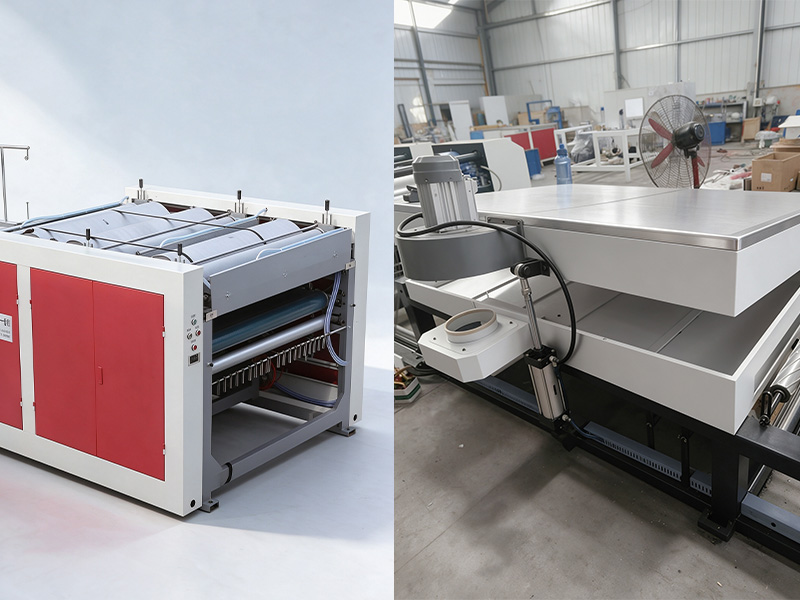

Roll-to-roll printing with solid shaft and drying device prints front and back in one pass; up to 6 colors with 5+1 / 6+0 layouts.

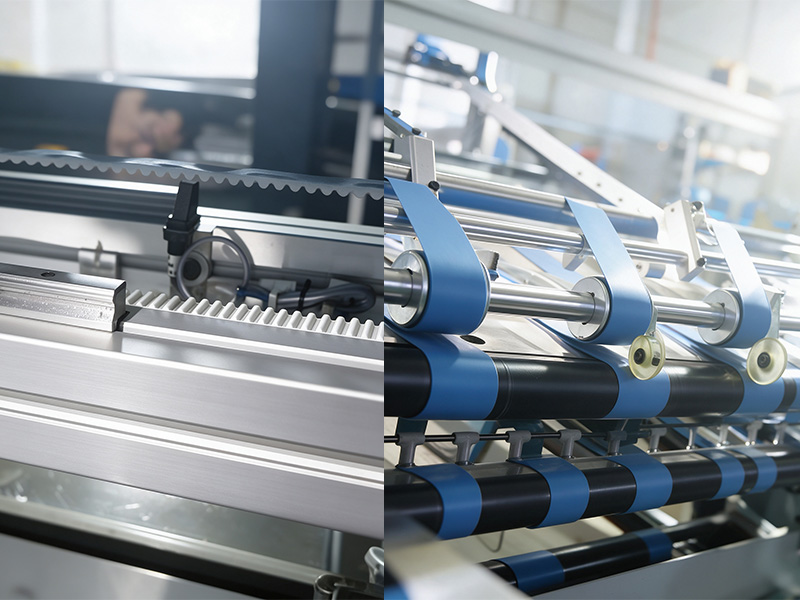

PU conveyor belt outlasts PVC 5×; linear guide rails keep the transmission precise and stable.

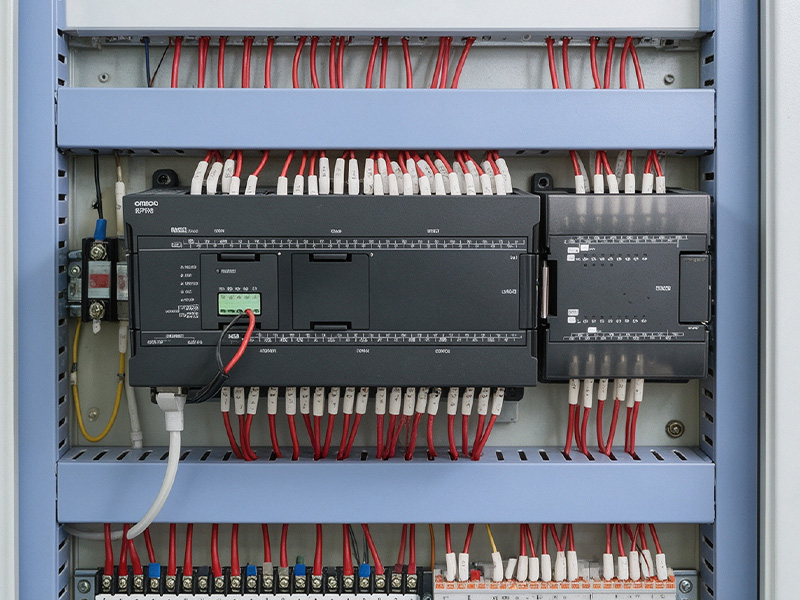

PLC micro-computer control with a humanized 10-inch touchscreen: data setting, display, recording and storage; parameters switch quickly by bag type.

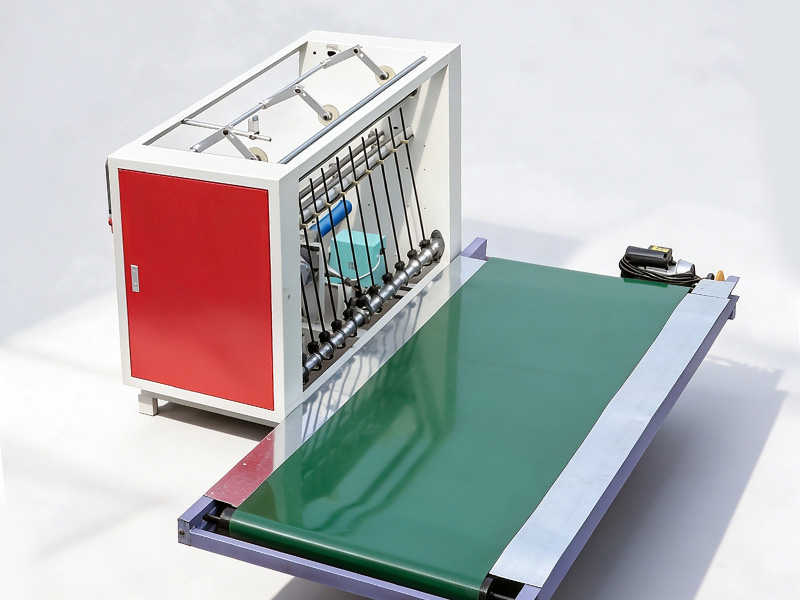

Auto output, counting, transferring and stacking keep the line tidy; optional hydraulic baling machine compresses bags for shipment.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Front & back in one pass, up to 6 colors.
Smooth, food-grade edges, cold & hot options.
PE bag fed, cut and inserted automatically.
Inner+outer sewn together or sealed separately.
EPC correction + photo tracking.
Runs alone as a cutting & sewing machine.
PLC + 10-inch touchscreen control.
Hydraulic baler completes the line.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Width | 400 mm | 750 mm |
| Bag Length | 700 mm | 1280 mm |
| Cutting Accuracy | ±1 mm | ±1 mm |
| Production Speed | 28 pcs/min | 40 pcs/min |
| Printing Colors | 3 | 6 |
| Power | 25 kW | 25 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
It cuts PP woven fabric, inserts a PE inner bag, sews the bottom and prints front & back in one continuous line.
Front & back in one pass — up to 6 colors (5+1 or 6+0) on the 800A, up to 3 colors (2+1 or 3+0) on the 800B.
Ordinary PP woven bags, film-laminated bags and OPP color-printed bags, with or without PE inner bag.
The patented smokeless knife with cold & hot options leaves smooth, burr-free edges.
The PE film is unrolled, cut and inserted automatically into the woven fabric.
Yes — inner and outer bags can be sewn together or sealed separately, with automatic counting.
One operator runs the machine; a second can handle the optional baler.
On-site installation and training, remote assistance via internet, 30-minute remote response, spare parts warehouse in Asia.
