Prints logos and text directly onto finished PP woven bags—flour, chemical, grain, fertilizer, and cement sacks. Pneumatic pressing with auto clutch, roller ink transfer, automatic counting, and a stacking machine complete the labor-saving line.
Printing Speed
Max Bag Size

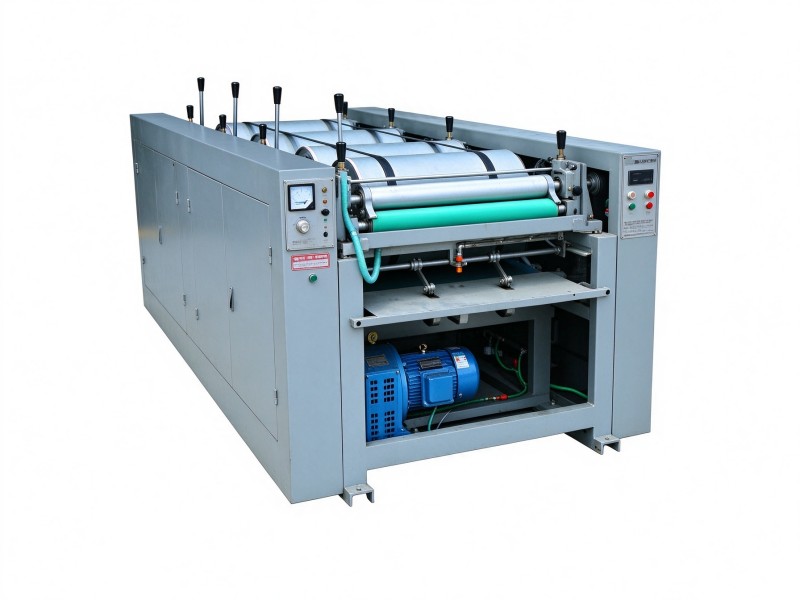

This machine prints directly onto finished PP woven bags one by one, making it the ideal choice for bag factories that need logos, brand names, and product text on sacks. The bag is fed in, printed by pneumatic-pressed plate rollers, then automatically counted and delivered to the stacking machine.
Two series cover your printing needs: the 4-Color series (max bag 1,400×850mm, 1.5kW) for standard one-side printing, and the 5+1-Color series (max bag 1,300×800mm, 6kW) for richer, multi-color designs with an extra coating unit. Both run at 1,500–3,000 bags per hour.
Pneumatic pressing with automatic clutch keeps operation quiet and reliable; roller ink transfer raises print finish and 3D effect while saving ink; automatic counting alarms when the set quantity is reached. The matching counting & stacking machine saves labor with automatic counting, outputting, and stacking.
Suitable Material: Finished PP woven bags, 500–1,400 mm length, 400–850 mm width.
| Basic Information | ||
| Parameter | 4-Color | 5+1-Color |
| Colors | 4 | 5+1 |
| Max Bag Size | 1,400 × 850 mm | 1,300 × 800 mm |
| Max Printing Size | 1,300 × 690 mm | 1,200 × 650 mm |
| Printing Plate Thickness | 4 – 5 mm | 4 – 5 mm |
| Printing Speed | 1,500–3,000 pcs/h | 1,500–3,000 pcs/h |
| Power | 1.5 kW | |
| Performance & Quality | ||
| Parameter | Value | |
| Printing Method | Pneumatic pressing, roller ink transfer | |
| Clutch | Automatic clutch, low noise | |
| Counting | Automatic, alarm at set quantity | |
| Print Finish | High finish, 3D effect | |
| Customization | Special sizes available | |
| Stacking Machine | ||
| Parameter | Value | |
| Bag Length | 500 – 1,400 mm | |
| Bag Width | 400 – 850 mm | |
| Working Speed | 30 – 60 pcs/min | |
| Power | 750 W | |
| Function | Auto counting, outputting, stacking | |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Pneumatic pressing at 1,500–3,000 bags per hour, steady and consistent.
Roller ink transfer saves ink with high finish and 3D effect.
Automatic counting with alarm at the set quantity.
Matching stacking machine counts, outputs and stacks automatically.
Automatic clutch design runs quietly in the workshop.
Special sizes customized to your bag dimensions.
Typical Bags

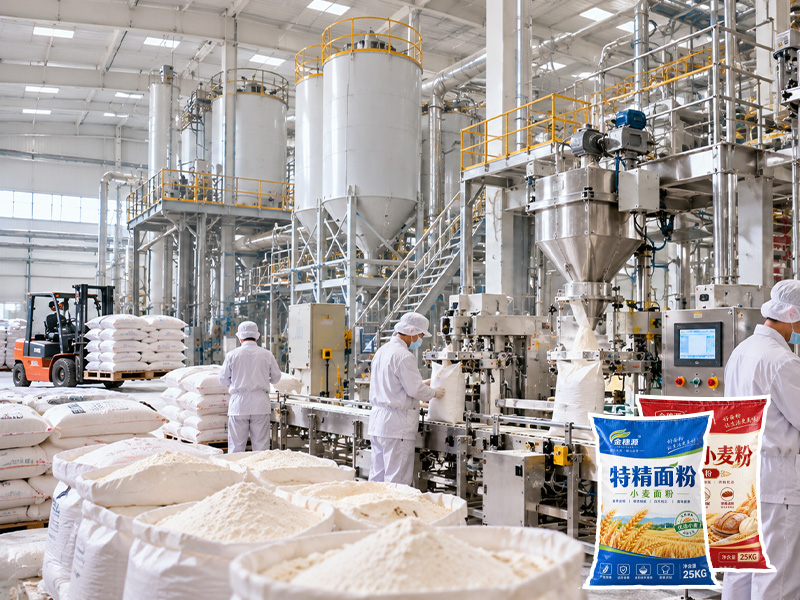

Flour bags
Recommended Series
4-Color
Key Benefits
Clear print quality, high speed
Typical Bags
Chemical powder bags
Recommended Series
4-Color
Key Benefits
Ink-efficient, durable prints
Typical Bags
Rice, grain sacks
Recommended Series
4-Color
Key Benefits
Accurate counting, high efficiency
Typical Bags

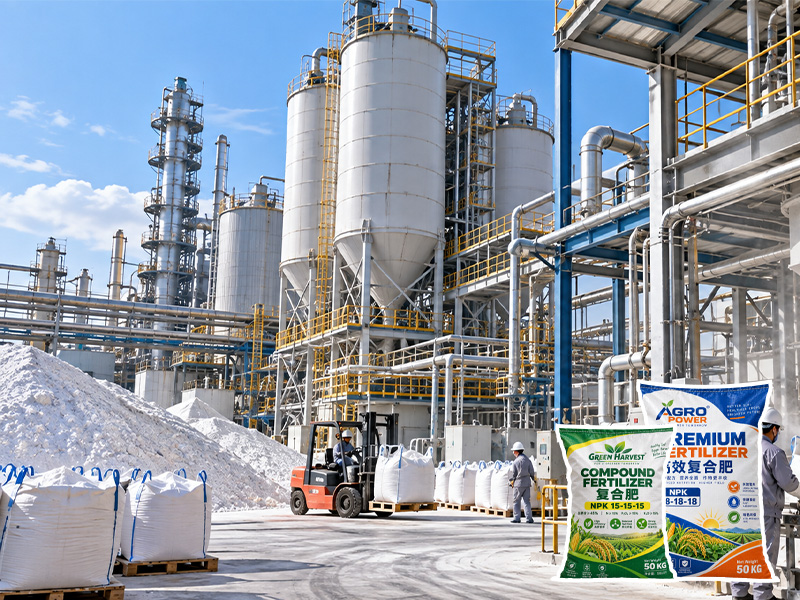

Fertilizer bags
Recommended Series
5+1-Color
Key Benefits
Available in multiple colors, attractive appearance
Typical Bags

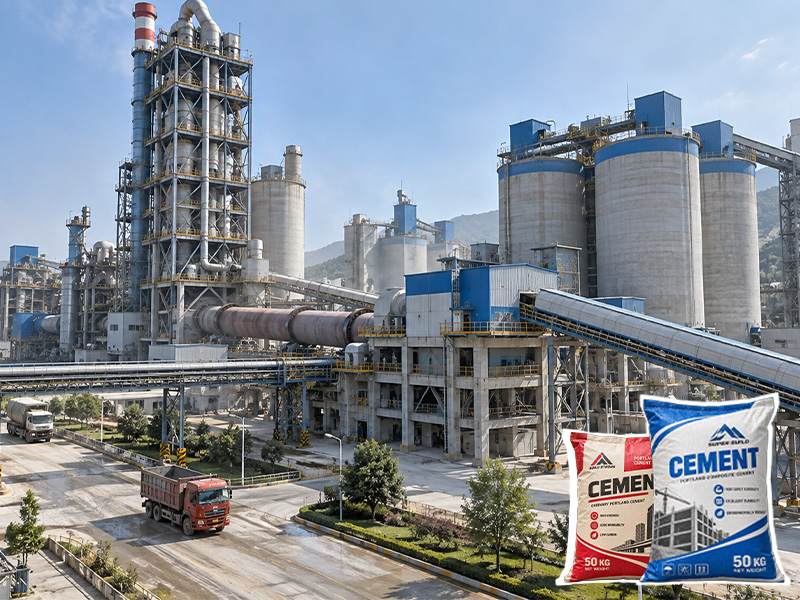

Cement sacks
Recommended Series
5+1-Color
Key Benefits
Good adhesion, compatible with a wide range of bag types

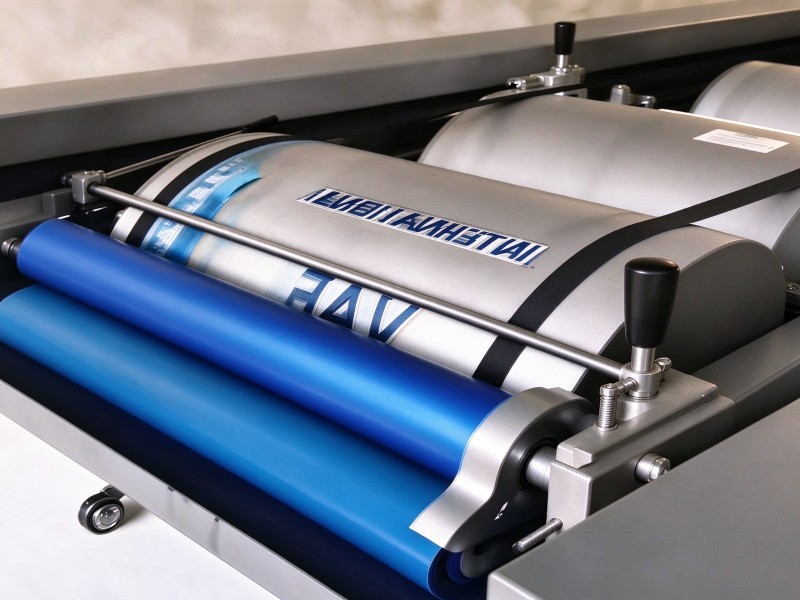

Rollers transfer ink evenly onto the plate, raising print finish and 3D effect while saving ink.

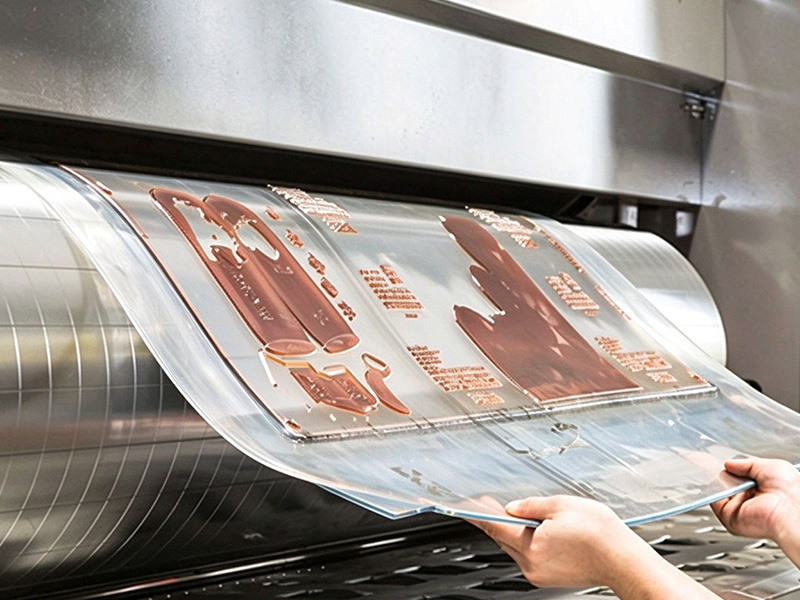

Accepts 4-5mm printing plates; plate change is quick and simple for different designs.

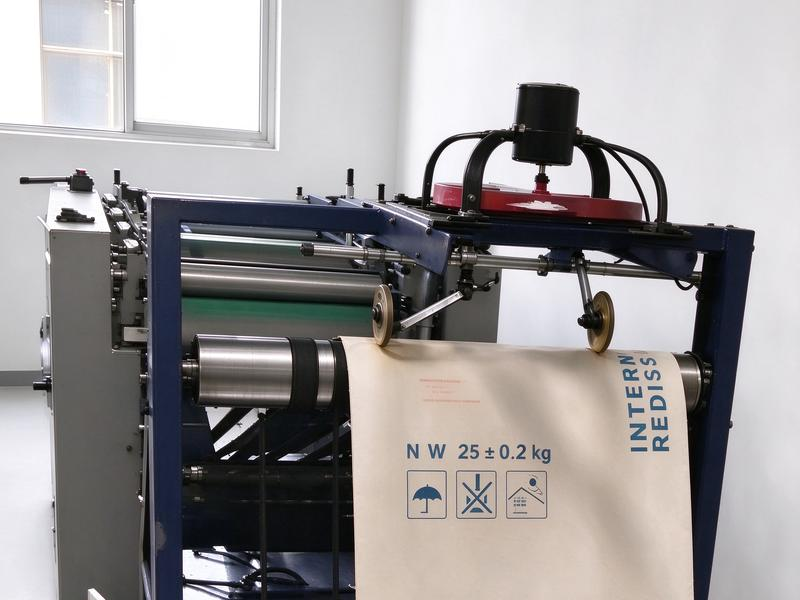

Photoelectric and proximity switches count every bag; the alarm rings when the set quantity is reached.

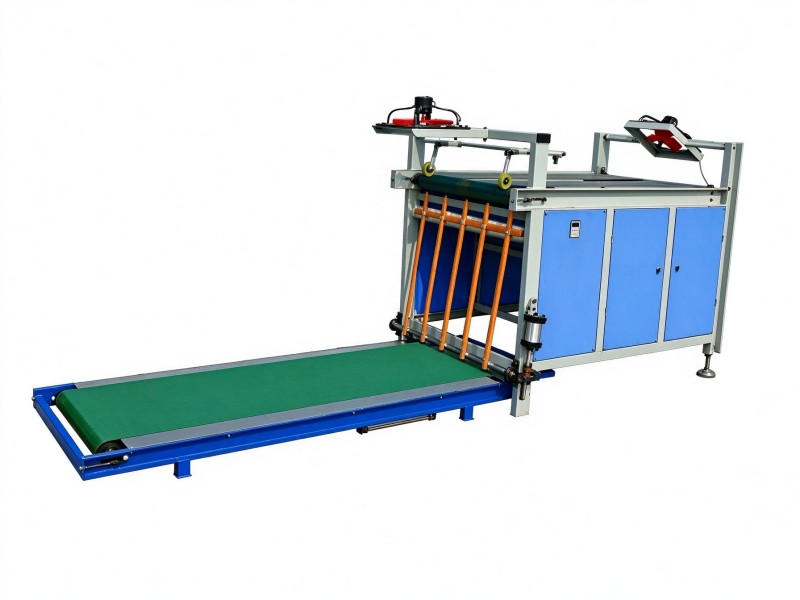

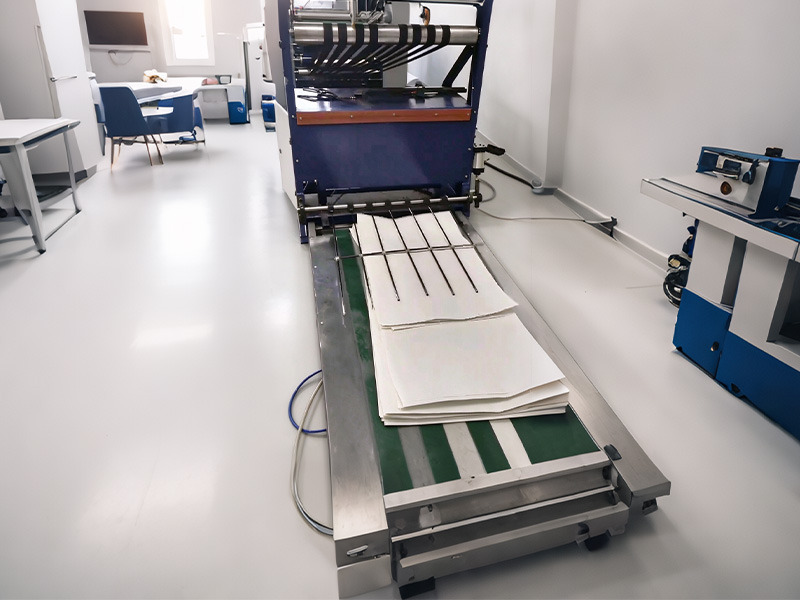

Counts, outputs and stacks printed bags automatically—saves labor and keeps the line tidy.

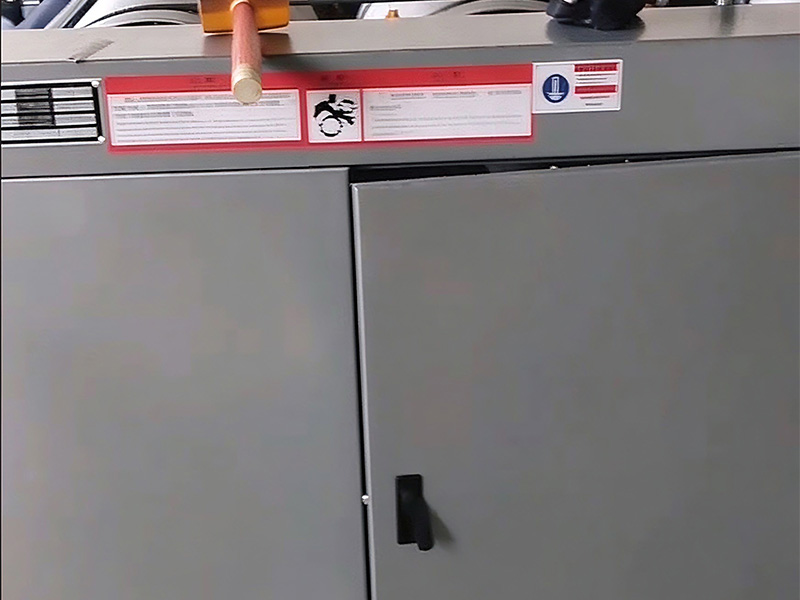

Contactor, photoelectric switch and proximity switch wiring keeps operation safe and stable.

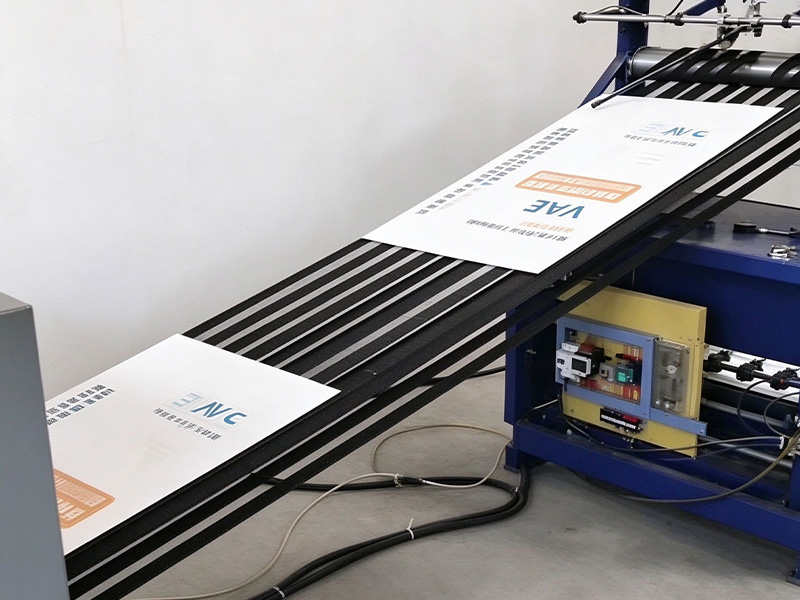

Feeding table and bag guides align every bag for accurate, consistent printing position.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
1,500–3,000 bags per hour with stable quality.
Roller ink transfer cuts ink use while raising finish.
Pneumatic auto clutch design lowers noise.
Alarm at the set quantity — no more manual counting.
Matching stacking machine counts, outputs and stacks.
Choose standard printing or rich multi-color designs.
Fits bags 500–1,400 mm long and 400–850 mm wide.
Special sizes and line connection available.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Size | 1,300 × 800 mm | 1,400 × 850 mm |
| Printing Size | 1,200 × 650 mm | 1,300 × 690 mm |
| Printing Speed | 1,500 pcs/h | 3,000 pcs/h |
| Plate Thickness | 4 mm | 5 mm |
| Power | 1.5 kW | 6 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
Finished PP woven bags — flour, chemical, grain, fertilizer and cement sacks.
4-color suits standard single-side printing; 5+1-color adds richer colors plus a coating unit for premium branding.
1,500 to 3,000 bags per hour, depending on bag size and print area.
Yes. Photoelectric counting with an alarm at the set quantity.
Yes. Roller ink transfer delivers high finish and 3D effect with less ink.
Yes. The matching counting & stacking machine counts, outputs and stacks automatically.
Yes. Special sizes can be customized to your bag dimensions.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
