Cuts PP woven fabric, auto-inserts a sealed PE inner bag and sews the bottom in one pass — one operator runs the whole line. One-button hot/cold cutter switch for clean cuts on laminated or plain fabric; inner-bag insertion depth 100–200mm adjustable; cutting accuracy within ±1.5mm.
Production Speed
Inner Bag

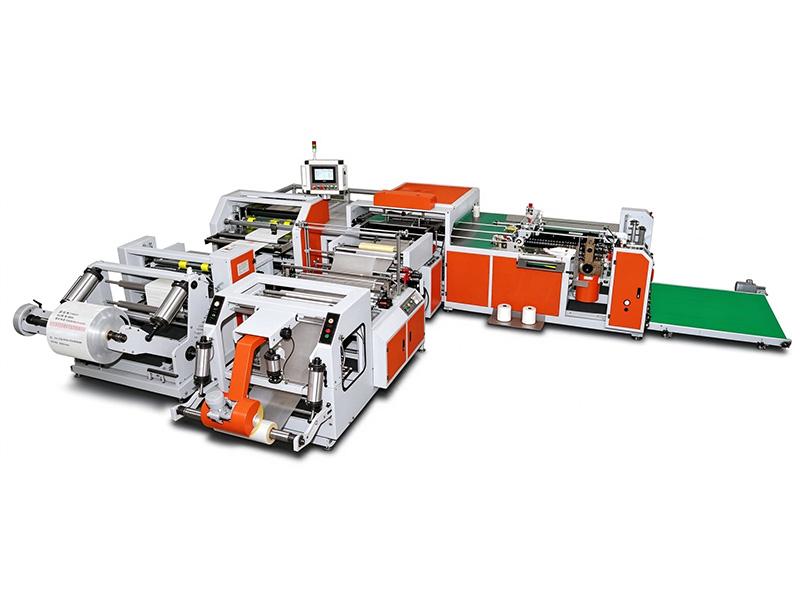

The cutting-sewing-inserting machine combines bag cutting, PE inner-bag inserting and bottom sewing in one continuous process. It handles ordinary PP woven bags, film-laminated bags, OPP color-printed bags and M-type side-gusset bags — with just one operator.
A one-button switch selects the hot or cold cutter: the cold cutter trims laminated fabric neatly, while the hot cutter seals unlaminated fabric so weft yarns never shed. The inserting unit opens the bag mouth with a negative-pressure suction disc, blows the cut and sealed PE inner bag in through multiple air pipes, captures it with an imported Italian photoelectric switch and drags it 100–200mm as your order requires.
Five servo motors — four of them Japanese Panasonic — drive accurate feeding, supported by a German SICK photoelectric tracking system. PLC with 10-inch touchscreen records, stores and recalls parameters; the machine can also run as a standalone cutting & sewing machine.
Suitable Material：Ordinary PP woven bags, film-laminated woven bags, OPP color-printed bags, M-type side-gusset bags.
| Main Parameters | |
| Parameter | HS-CS-800P |
| Outer Fabric Width | 350–750 mm (inner bag fits 350–700) |
| Bag Cutting Length | 600–1,150 mm |
| Cutting Accuracy | ±1.5 mm |
| PE Film Width | Outer bag width +20mm |
| PE Film Thickness | ≥0.01 mm |
| Needle Pitch | 7–12 mm |
| Production Speed | 26–36 pcs/min |
| Total Power | 22.8 kW |
| Air Pressure | ≥0.8 MPa |
| Weight | ~5.2 T |
| Dimensions | 5,240×2,000×1,400 mm |
| Key Components | |
| Component | Specification |
| Cutting | Hot/cold cutter, one-button switch; auto pinching |
| Servo Feeding | 5 sets servo (4× Panasonic Japan) |
| Photoelectric Tracking | German SICK |
| Inner-Bag Sensor | Imported (Italy) photoelectric switch |
| Frame | Steel plate, CNC-cut |
| Control | PLC + 10" touchscreen |
| Sewing | Single/double line optional |
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Auto inserting unit — depth 100–200mm, adjustable to your order.
Cold cutter for laminated, hot cutter for plain — one-button switch.
Sew together in one pass, or seal the inner bag separately.
Active unwinding + floating storage: near zero tension.
Panasonic servo feeding keeps cutting within ±1.5mm.
One integrated machine, one operator, PLC touchscreen.
Typical Bags
Cement sacks
Key Benefits
Inner bag moisture protection, high-speed cutting and sealing
Typical Bags

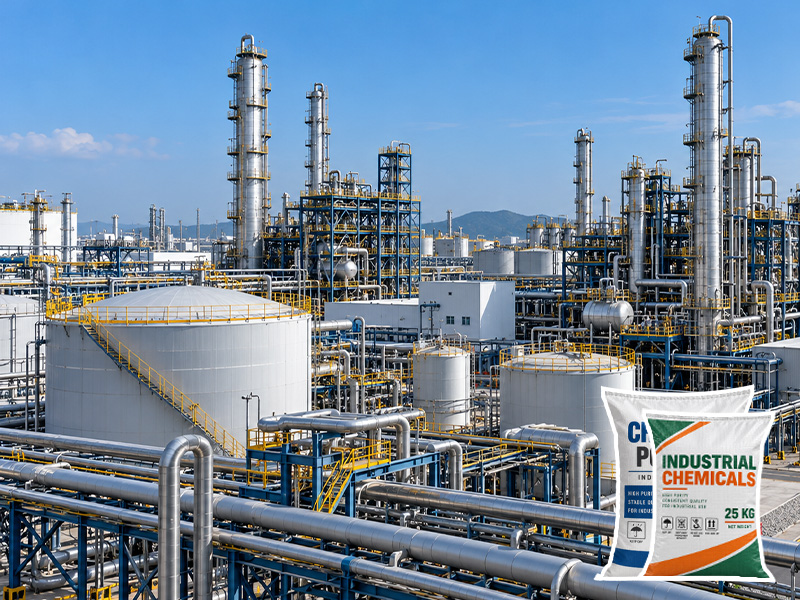

Fertilizer, chemical powder
Key Benefits
Sealed inner bag for moisture protection and leak prevention
Typical Bags

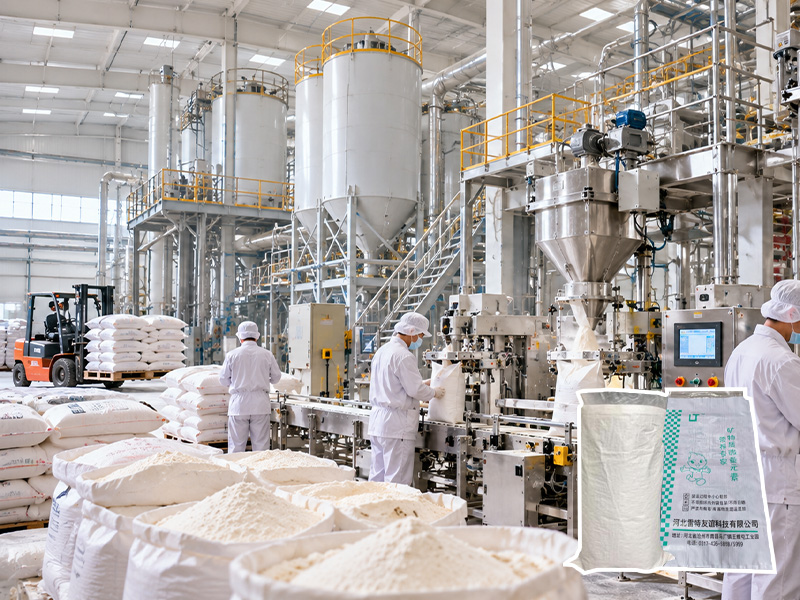

Flour, sugar, rice
Key Benefits
Clean inner bag with neat cut edges
Typical Bags

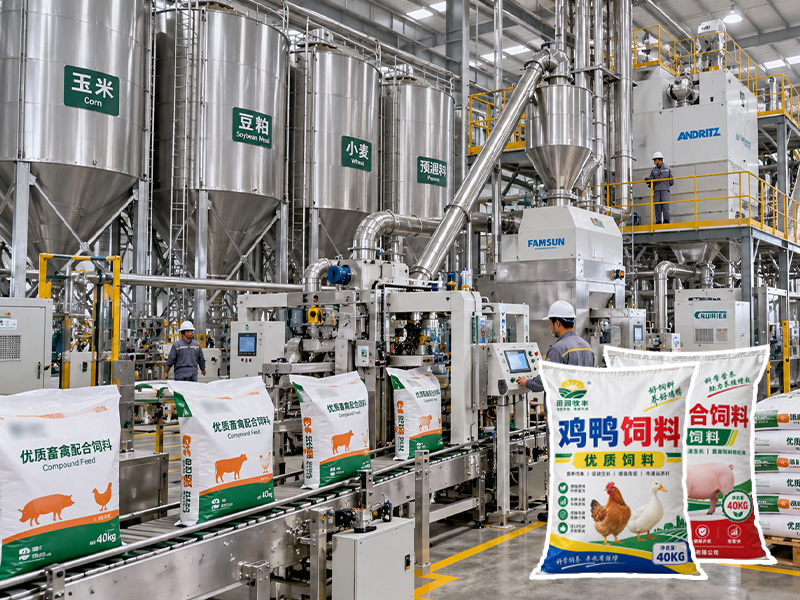

Feed, seed
Key Benefits
Secure bagging with automatic countin
Typical Bags

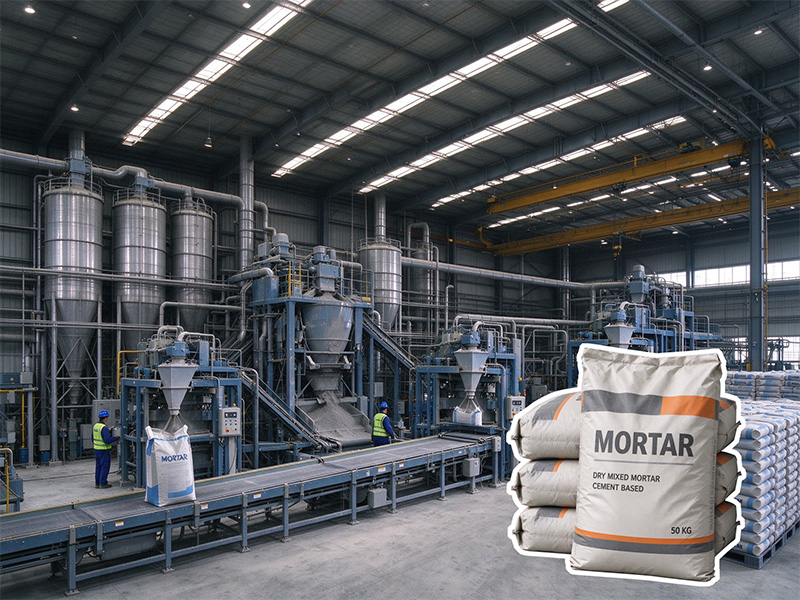

Mortar, putty
Key Benefits
Aesthetic cold-knife cutting of laminated bags
Typical Bags

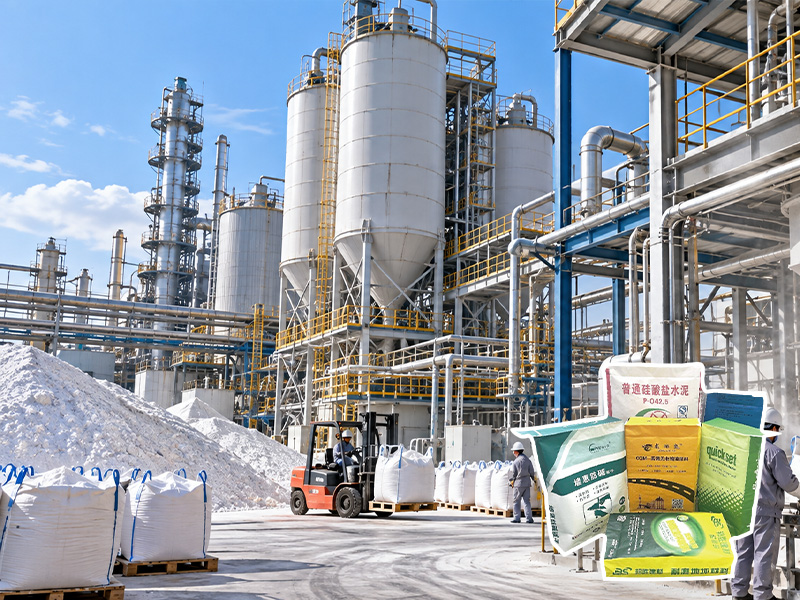

Salt, mineral powder
Key Benefits
Single-operator operation of the entire line

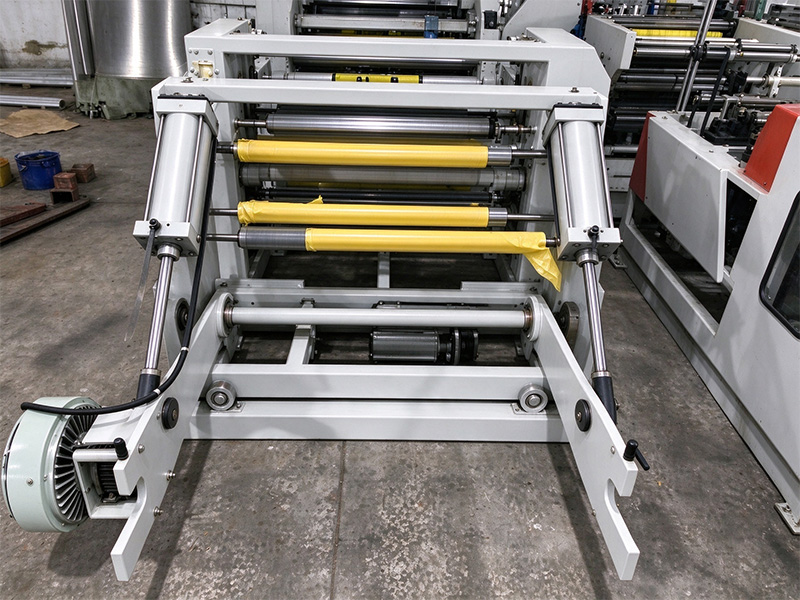

Max roll dia. 1200mm, width 750mm; double-cylinder auto feeding and lifting with air-expansion shaft; EPC auto correction + magnetic powder brake keep fabric straight and wrinkle-free.

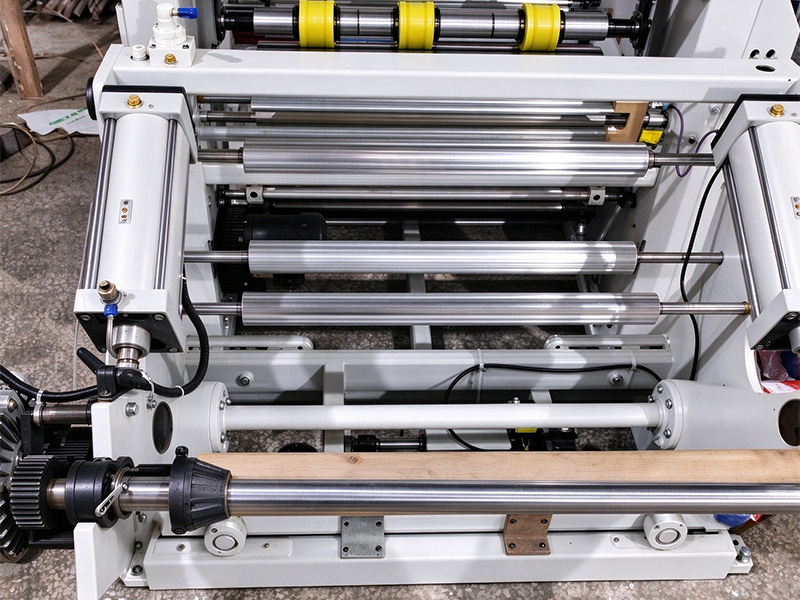

Panasonic servo motor with original drive ensures accurate feeding; floating storage device keeps tension uniform for non-stop rhythmic cutting.
Cold cutter trims laminated fabric neatly; hot cutter seals plain fabric so weft never sheds; auto pinching keeps the cut clear.

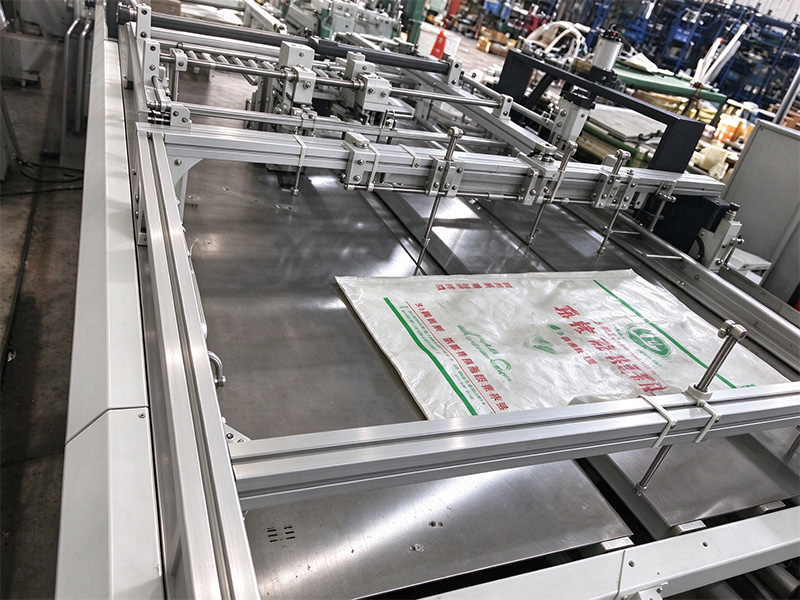

Servo motor + negative-pressure suction disc feed the cut sheet accurately and synchronously — no crooked or slipped feeding.

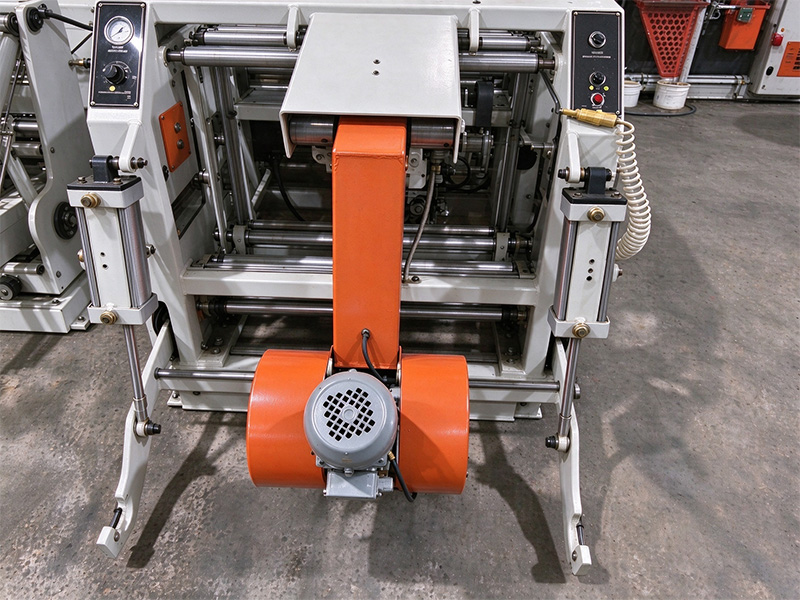

Frequency-converted motor + pressure roller drive the film actively — no passive traction, no stretch, near zero tension, super-long feeding.

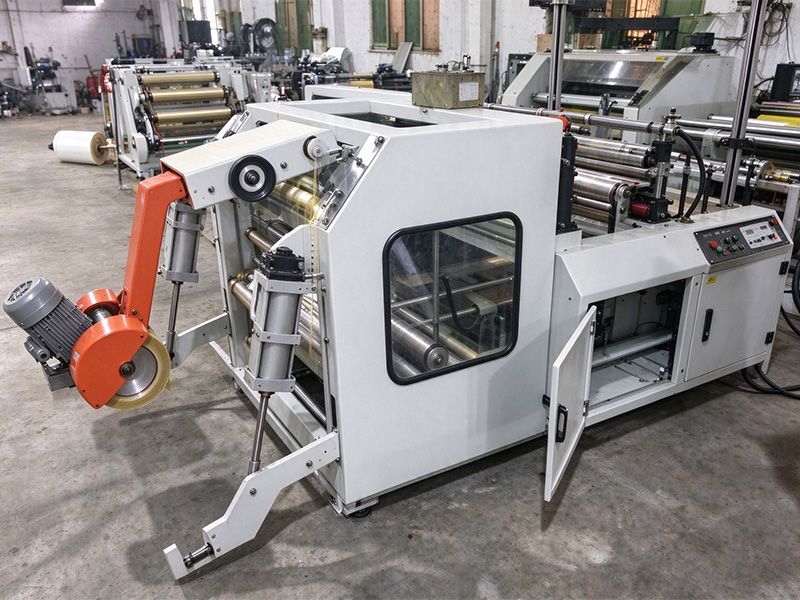

Servo traction for accurate feeding; floating roller storage keeps film flat during sealing and cutting — no blocking, no wrinkles.

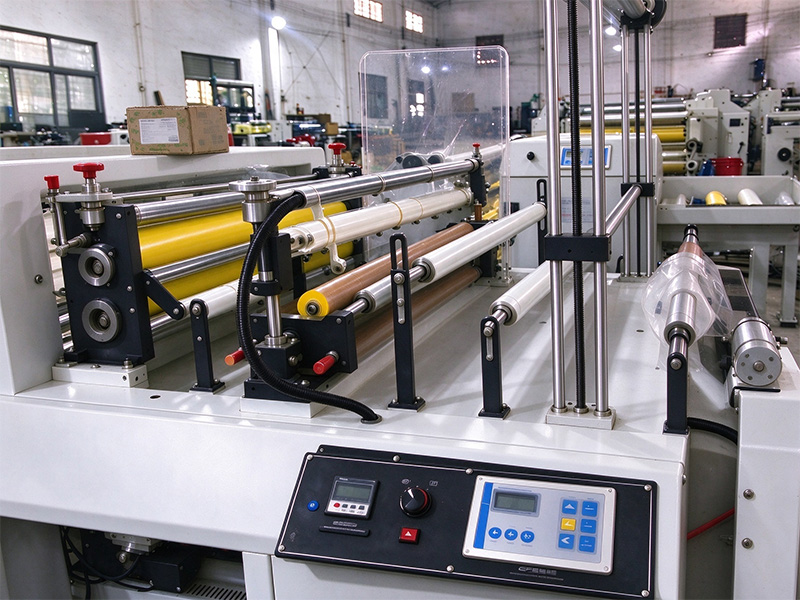

Heat-seal and cut positions manually adjustable; servo-driven traction before cutting prevents stretch, deformation or damage.

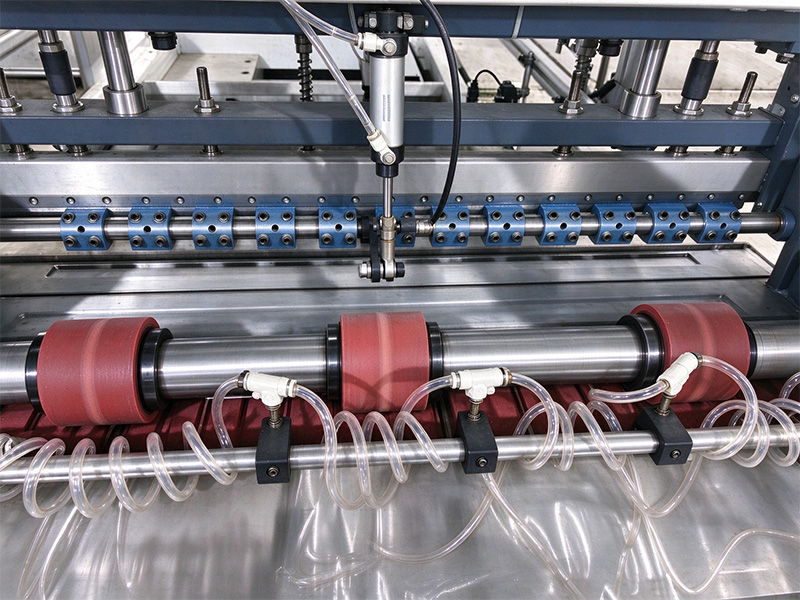

Negative-pressure suction opens the bag mouth; air pipes blow the sealed inner bag in; imported Italian photoelectric switch positions it; pneumatic clamp drags 100–200mm per your spec.

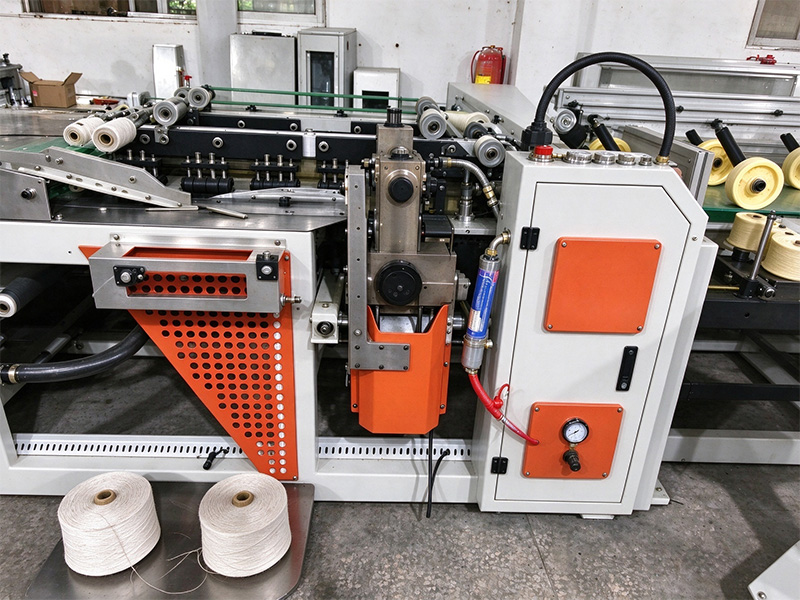

Bags fold through the edge-folding mold, then sew — single or double line optional (standard single); auto output, counting and stacking complete the line.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Suction, blow-in and position, depth 100–200mm, fully automatic.
Clean cuts on laminated or plain fabric.
Inner bag sewn with outer bag, or sealed independently.
Panasonic servo feeding keeps lengths consistent.
Panasonic servo, German SICK tracking, Italian sensor.
Plain, laminated, OPP-printed and M-gusset bags.
CNC-cut steel frame, stable at high speed, no loosening.
Integrated process, PLC touchscreen, minimal labor.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Width | 350 mm | 750 mm |
| Bag Length | 600 mm | 1,150 mm |
| Speed | 26 pcs/min | 36 pcs/min |
| Needle Pitc | 7 mm | 12 mm |
| Cutting Accuracy | ±1.5 mm | ±1.5 mm |
| Power | 22.8 kW | 22.8 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
It cuts PP woven fabric, auto-inserts a PE inner bag and sews the bottom in one continuous process.
Ordinary, film-laminated, OPP color-printed and M-type side-gusset woven bags.
Suction opens the mouth, air pipes blow the inner bag in, an Italian sensor positions it, then a clamp drags it 100–200mm as required.
Cold cutter for laminated fabric — neat and clean; hot cutter for plain fabric — weft yarns stay in place. One-button switch.
Yes — sew together in one pass, or seal the inner bag bottom separately.
One operator runs the integrated machine.
Yes — it works independently as a cutting & sewing machine when no inner bag is required.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
