Two-in-one cutting and sewing machine for woven sacks—up to 60 pcs/min, ±1 mm color-tracking length control, and smokeless cutting for bag mouths that open easily with no adhesion.
Bag Length Range
Cutting/Sewing Speed

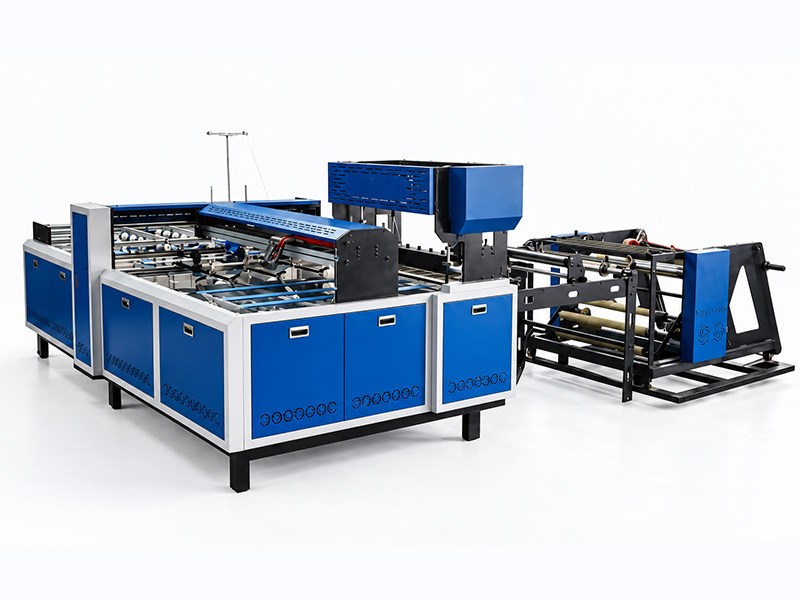

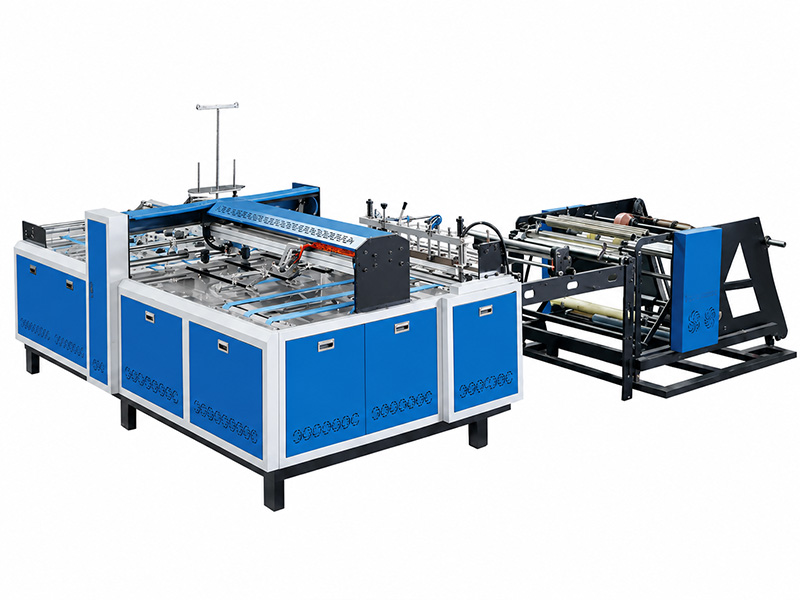

This cutting-sewing machine combines bag cutting and sewing into one efficient line, replacing separate cutting and sewing machines. It handles woven bags, laminated woven bags, and paper-plastic laminated bags at up to 60 pcs/min, with a 400–1,350 mm length range.
Three cutting options cover every requirement: the smokeless knife (HS-CS-800A) cuts bag mouths clean and easy to open; the smokeless hot knife (HS-CS-800H) adds heat sealing with no smoke and no adhesion; the cold knife (HS-CS-800C) is ideal for heat-sensitive laminated materials—no smoke, no smell, no melting.
Precision comes from color-tracking servo control (±1mm), while frequency-conversion speed adjustment keeps cutting and sewing perfectly synchronized. The PLC touchscreen stores and recalls all parameters—one-button setup for repeat orders. Automatic counting, bag folding, and electric feeding reduce labor to a minimum.
Suitable Material: Woven bags, laminated woven bags, paper-plastic laminated bags; cold knife suits heat-sensitive materials.
| Models | |||
| Parameter | HS-CS-800A | HS-CS-800H | HS-CS-800C |
| Cutting Type | Smokeless knife | Smokeless hot knife | Cold knife |
| Max Bag Width | 850 mm | 800 mm | 800 mm |
| Bag Length | 400–1,350 mm | 400–1,350 mm | 400–1,350 mm |
| Cutting/Sewing Speed | 30–60 pcs/min | 30–60 pcs/min | 30–60 pcs/min |
| Auto Deviation Correction | Manual std. / auto opt. | Standard | Standard |
| Robot Arm Stabilizer | — | Standard | Standard |
| Power | 5 kW | 10 kW | 10 kW |
| Weight | 2.0 T | 2.2 T | 2.2 T |
| Dimensions | 5000×7000×1500 mm | 5000×7000×1500 mm | 5000×7000×1500 mm |
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Cylinder Cloth Diameter | ≤ Φ1,400 mm | Control System | PLC + Touchscreen |
| Sewing Stitch | 5 – 14 mm | Cutting Unit | Smokeless / smokeless hot / cold knife |
| Hem Width | 15 – 30 mm | Label Conversion | Front/back free conversion |
| Bag Length Control | Color-mark tracking + servo | Speed Control | Frequency conversion |
| Cutting Accuracy | ± 1 mm | Frame | Welded steel frame |
| Feeding | Electric auto feeding | Stabilizer (H/C) | Robot arm, up/down simultaneous translation |
| Thread Break Alarm | Auto alarm & shutdown | ||
| Stacking | Auto counting, folding, fixed displacement | ||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Smokeless cutting keeps mouths clean, open, no adhesion.
Frequency conversion syncs both speeds automatically.
Color-tracking servo holds length within ±1 mm.
Auto thread-break alarm stops the machine instantly.
Free front/back conversion—no tools, no downtime.
Auto counting, folding and electric feeding cut labor.
Typical Bags
Cement & valve bags
Key Benefits
Smoke-free cutting with easy-to-open bag openings and precise bag length
Typical Bags
Fertilizer & chemical bags
Key Benefits
Zero-defect thread break alarm and free switching between front and back sides
Typical Bags
Feed & pet food bags
Key Benefits
High speed of 60 bags per minute with a compact footprint
Typical Bags
Rice, flour & sugar bags
Key Benefits
Clean cutting and easy-to-open bag openings
Typical Bags
Mortar & plaster bags
Key Benefits
Sturdy stitching with a stitch length of 5–14 mm
Typical Bags
Seed & grain bags
Key Benefits
Automatic bag-folding counting for easy packaging

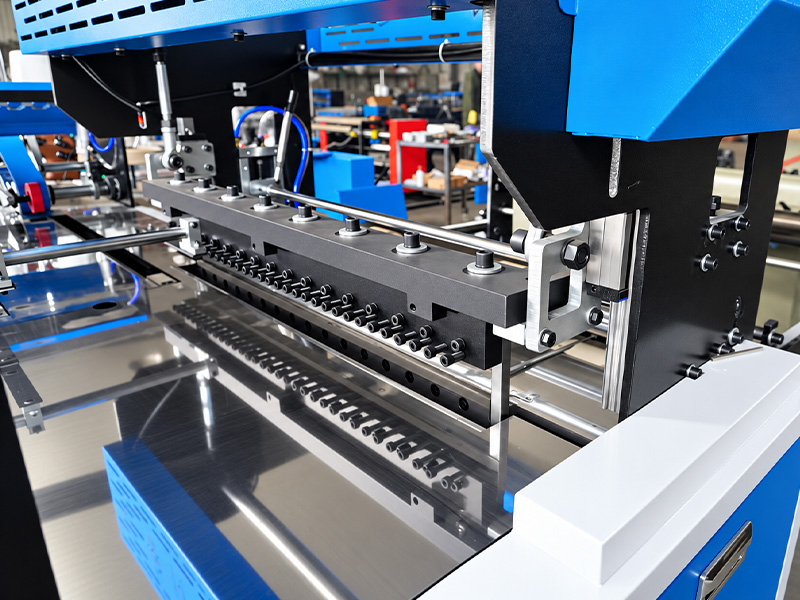

A. Clean-cut smokeless knife; H. hot knife with no smoke and no adhesion; C. cold knife for heat-sensitive materials — bag mouths open easily, no manual opening step.

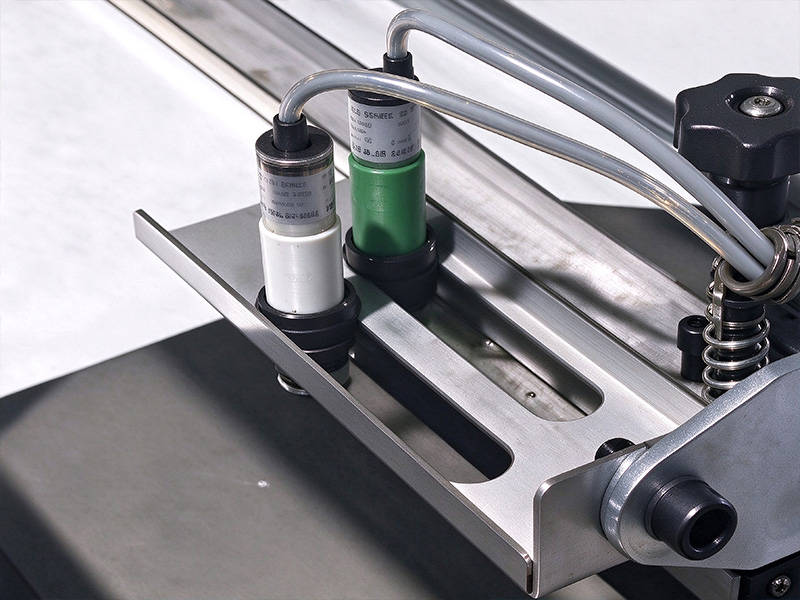

Color-mark sensor plus servo motor precisely controls bag length and feeding — consistent sizes, ±1mm accuracy, less waste.

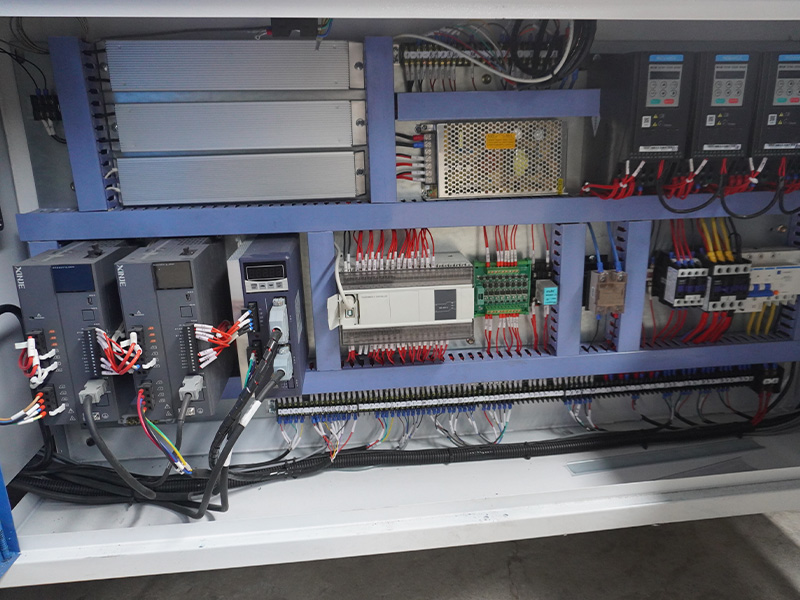

Centralized PLC control sets, displays, records, stores and recalls parameters — one-button recall cuts setup time by about 50%.

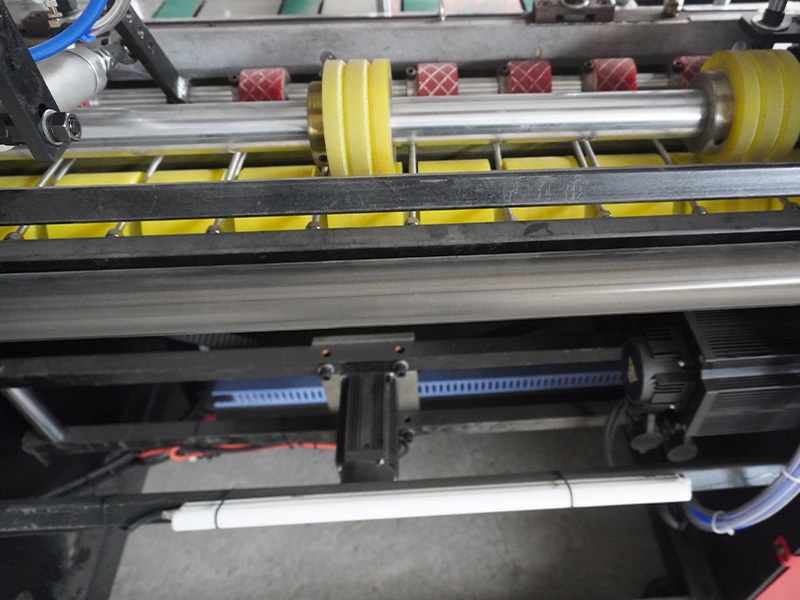

Cutting and sewing speeds adjust automatically in sync — no mismatched speeds causing jams or quality issues, smooth continuous production.

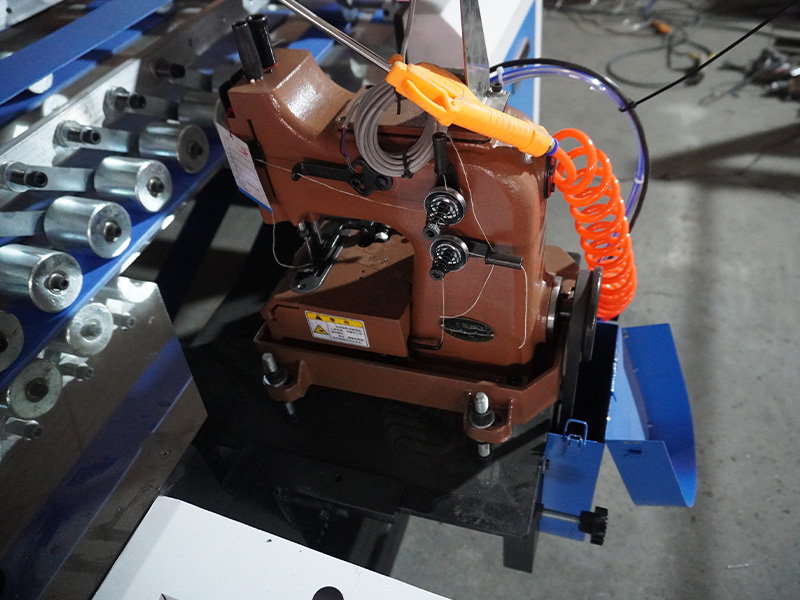

Detects sewing thread breaks instantly and shuts down — prevents bags without bottom stitching, zero defective output.

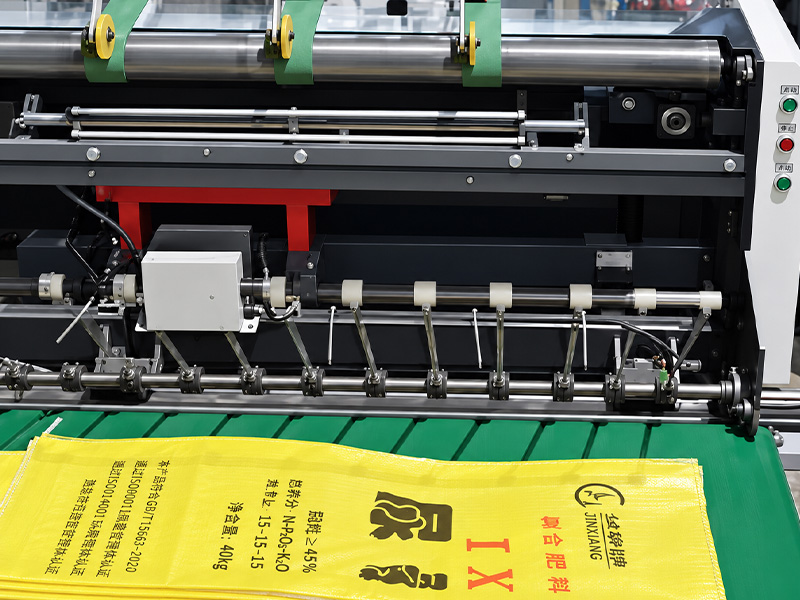

Counts, folds and displaces bags to set positions automatically — 100% accurate count, bags neatly stacked for packaging.

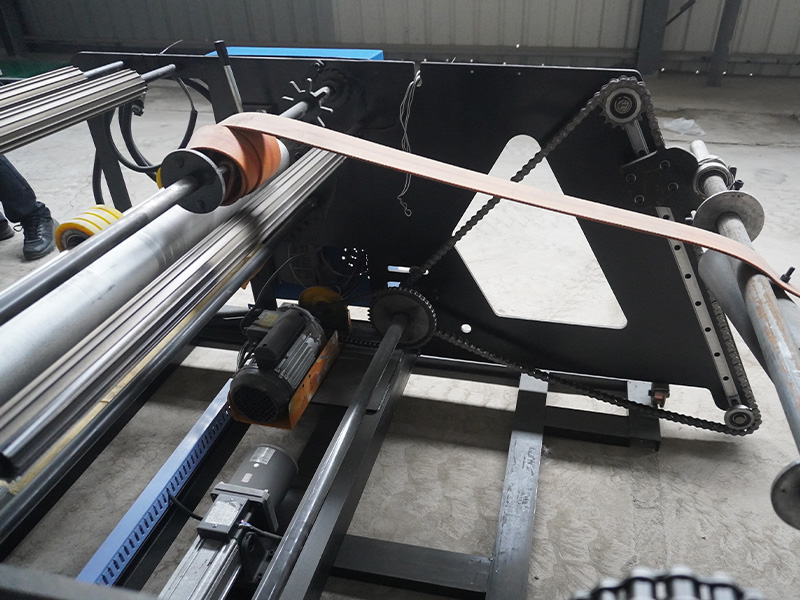

Automatic roll loading removes manual handling — reduces operator fatigue, increases uptime.

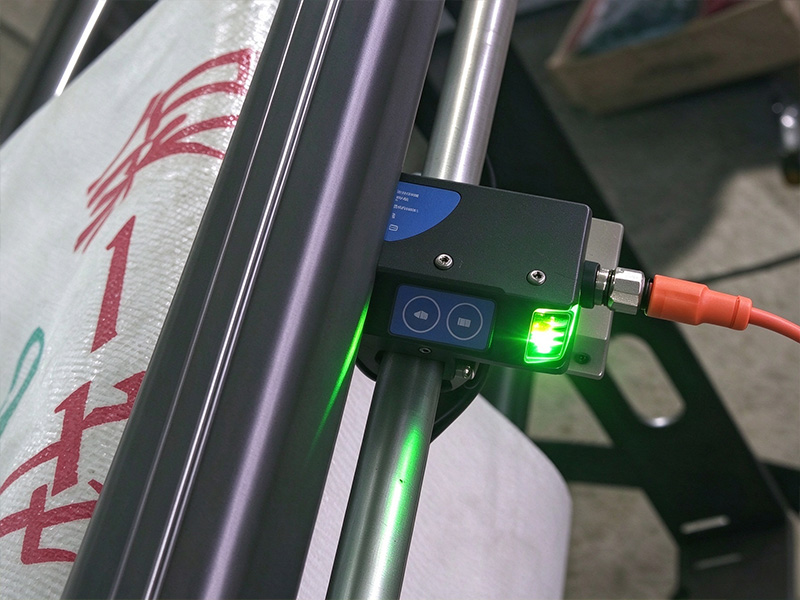

Model A: EPC manual standard, auto optional; Models H/C: auto deviation correction standard — straight web, straight cuts, less waste.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Cutting and sewing in one pass, fully synchronized.
Smokeless cutting — no adhesion, faster filling.
Color-tracking servo, consistent bag sizes.
Front/back switch without tools or downtime.
PLC stores parameters — 50% less setup time.
Auto thread-break alarm stops instantly.
Auto counting and folding, neat stacks.
All-electric control, low failure rate design.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | 4-Shuttle | 6-Shuttle |
|---|---|---|
| Bag Width | — | 850 mm |
| Bag Length | 400 mm | 1,350 mm |
| Cutting/Sewing Speed | 30 pcs/min | 60 pcs/min |
| Sewing Stitch | 5 mm | 14 mm |
| Hem Width | 15 mm | 30 mm |
| Power | 5 kW | 10 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
Woven bags, laminated woven bags and paper-plastic laminated bags; the cold knife model also suits heat-sensitive materials.
Model A (smokeless knife) for standard cutting up to 850mm; Model H (smokeless hot knife) adds auto correction and robot-arm stability; Model C (cold knife) suits heat-sensitive materials. Tell us your bag type and material and we recommend.
30 to 60 pcs/min, cutting and sewing fully synchronized.
Smokeless cutting leaves clean edges with no adhesion, eliminating manual opening.
Color-tracking servo control holds length within ±1mm.
The machine detects it instantly and stops, preventing bags without stitching.
Yes — free conversion without tools or downtime.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
