Four-in-one machine cuts, sews, prints and stacks woven sacks at up to 60 pcs/min—smokeless cutting for easy-opening bag mouths, color-tracking servo for ±1 mm length, and free front/back label conversion.
Bag Length Range
Max Speed

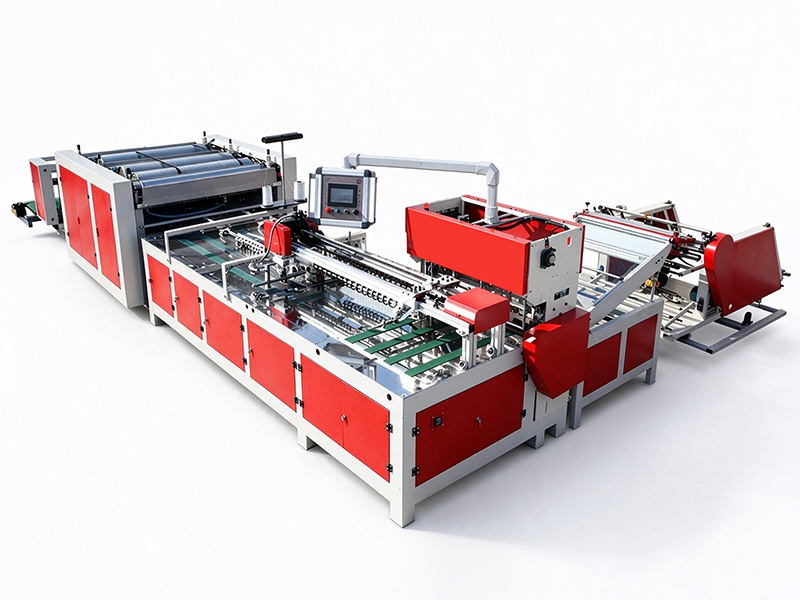

Cutting, sewing, printing, and stacking—four bag-making processes in one line. This machine replaces separate cutting, sewing, and printing machines, producing finished, printed, stacked woven bags from one roll in a single pass, at up to 60 pcs/min with a 400–1,350 mm bag length range.
Its smokeless knife cuts bag mouths clean and easy to open with no adhesion; color-tracking servo control holds bag length within ±1 mm; and front/back label conversion switches instantly without tools. The optional 1-5 color printing unit and auto ink system print logos and barcodes in the same pass, while the PLC touchscreen stores and recalls all parameters.
Frequency-conversion speed adjustment keeps cutting, sewing, and printing synchronized; automatic thread-break alarm prevents defective bags; and auto counting, folding, and electric feeding cut labor to a minimum.
Suitable Material: Woven bags, laminated woven bags, paper-plastic laminated bags.
| Models | |||
| Parameter | HS-CS-800P | ||
| Machine Functions | Cut + Sew + Print + Stack | ||
| Cylinder Cloth Diameter | ≤ Φ1,400 mm | ||
| Max Bag Width | 850 mm | ||
| Bag Length | 400 – 1,350 mm | ||
| Cutting/Sewing/Printing Speed | 30 – 60 pcs/min | ||
| Sewing Stitch | 5 – 14 mm | ||

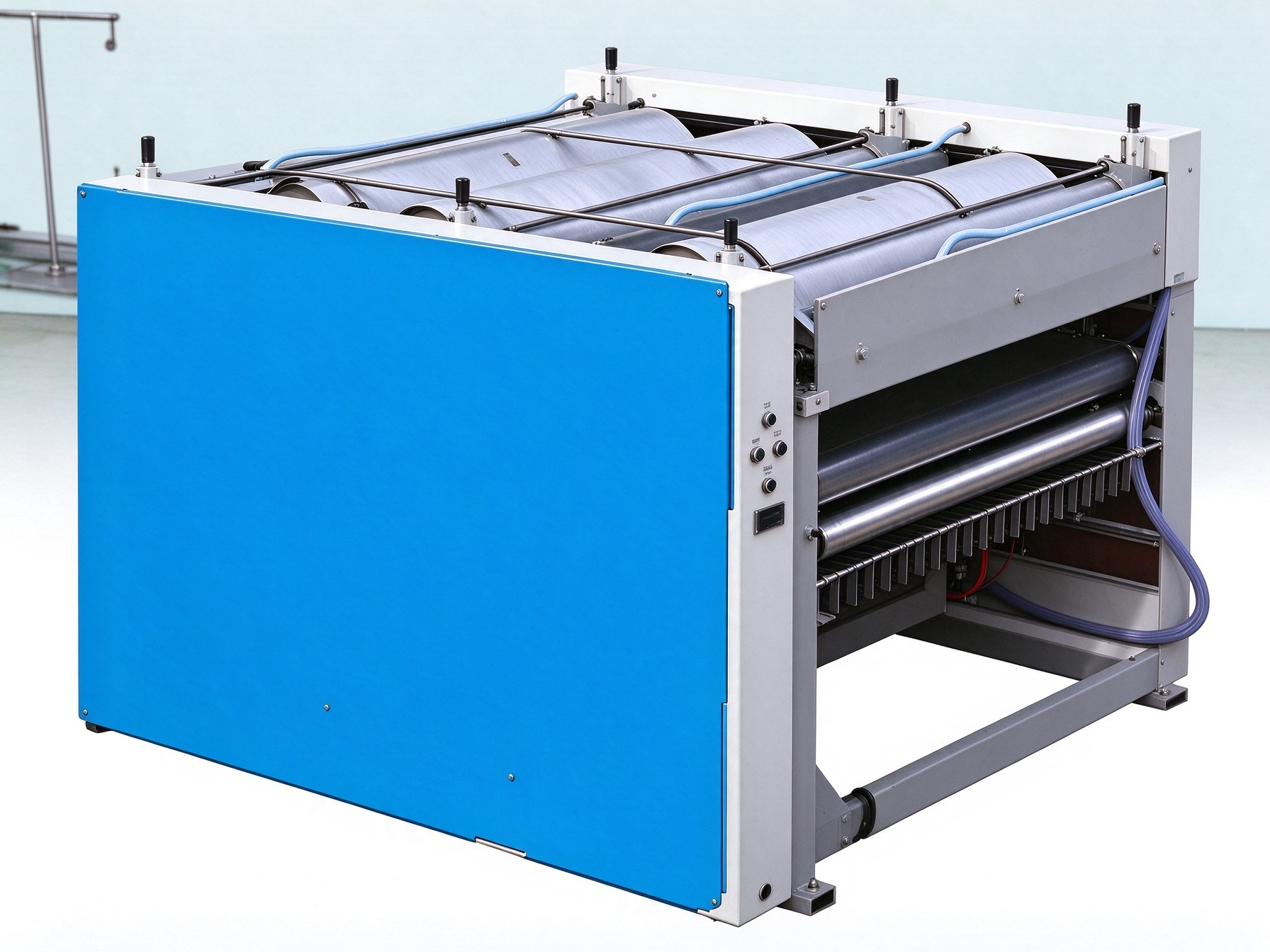

| Printing Colors | 1 – 5 colors (optional) | ||
| Control System | PLC + Touchscreen | ||
| Power | 6 kW | ||
| Weight | 6.8 T | ||
| Dimensions | 11,000 × 7,000 × 1,500 mm | ||
| Performance & Quality / Key Components | |||
| Parameter | Value | Component | Specification |
| Bag Length Control | Color-mark tracking + servo | Cutting Unit | Smokeless knife |
| Cutting Accuracy | ± 1 mm | Servo System | Color tracking + servo motor |
| Cutting Type | Smokeless knife | Printing Unit | 1 – 5 colors, optional |
| Label Conversion | Front/back free conversion | Control | PLC + touchscreen, data storage & recall |
| Feeding | Electric auto feeding | Speed Control | Frequency conversion |
| Edge Control | Manual EPC std. / auto opt. | Frame | Welded steel frame, 6.8T |
| Ink System | Auto ink system (optional) | ||
| Thread Break Alarm | Auto alarm & shutdown | ||
| Stacking | Auto counting, folding, displacement | ||
HAOSEN helps manufacturers solve the real problems behind unstable output, difficult operation, high waste and inconsistent bag quality.
Smokeless cutting keeps mouths clean, open, no adhesion.
One machine finishes cut-sew-print-stack in a single pass.
Frequency conversion syncs all speeds automatically.
Color-tracking servo holds length within ±1mm.
Auto thread-break alarm stops the machine instantly.
Free front/back conversion — no tools, no downtime.
Typical Bags
Cement & valve bags
Key Benefits
Smoke-free cutting with easy-open bag openings and printed brand logos
Typical Bags
Fertilizer & chemical bags
Key Benefits
Flexible front-to-back orientation switching, with zero-defect thread breakage alerts
Typical Bags
Feed & pet food bags
Key Benefits
High speed of 60 bags per minute, single-pass formin
Typical Bags

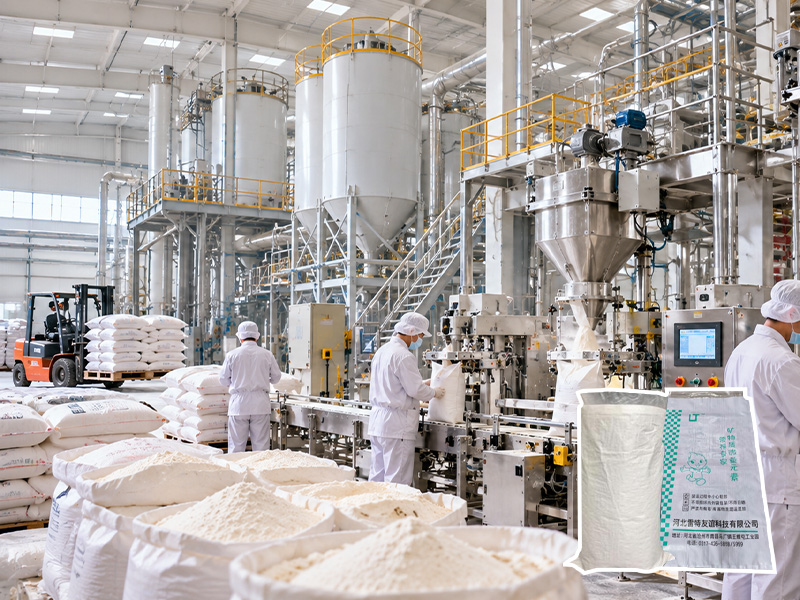

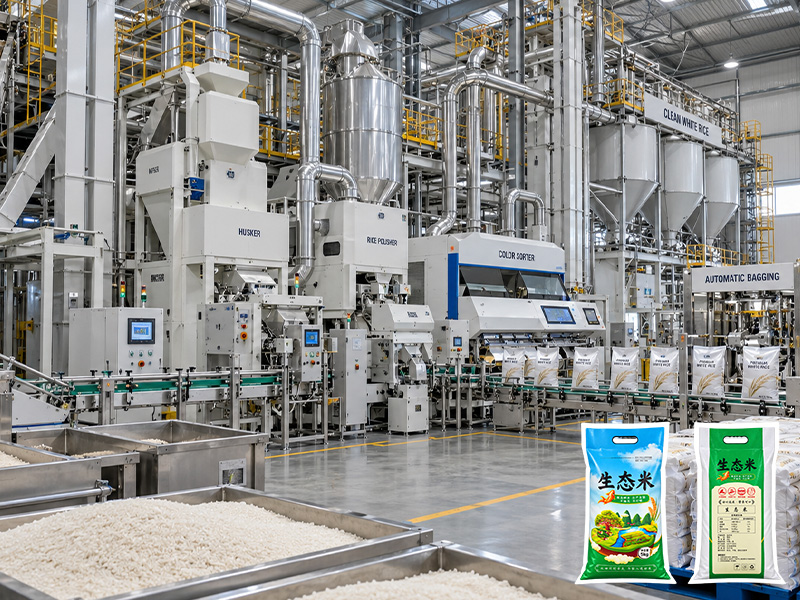

Rice, flour & sugar bags
Key Benefits
Clean cutting and 1–5-color printing for attractive packaging
Typical Bags
Rice, flour & sugar bags
Key Benefits
Sturdy stitching with a 5–14 mm stitch spacing
Typical Bags
Rice, flour & sugar bags
Key Benefits
Automatic bag counting and folding for easy palletizing

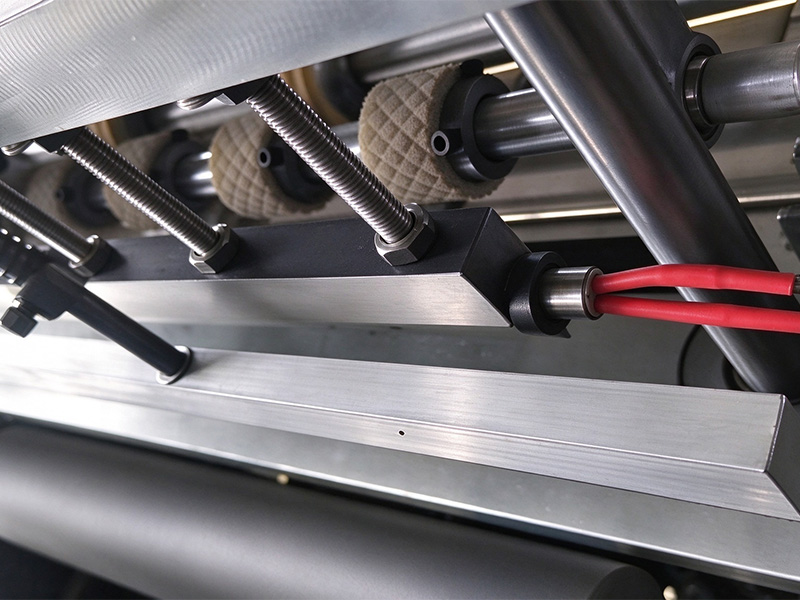

Clean-cut smokeless knife — bag mouths open easily, no adhesion, no manual opening step.

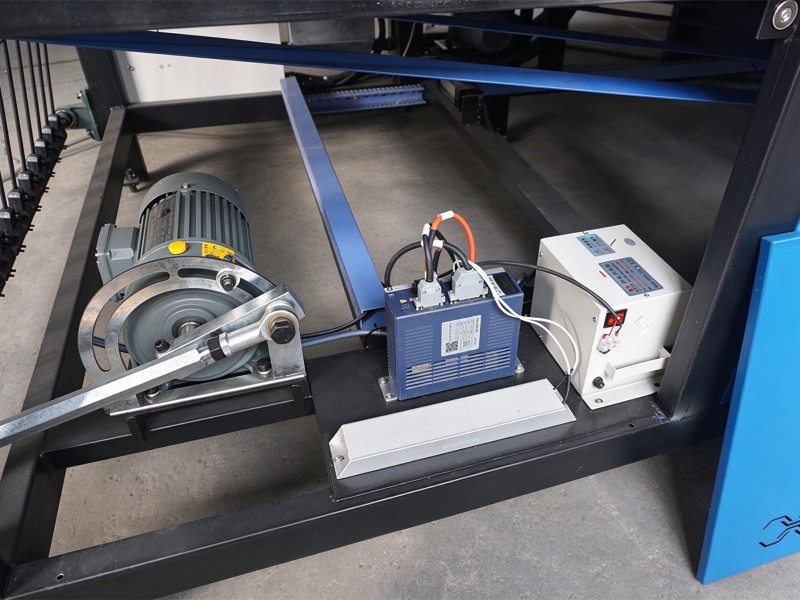

Color-mark sensor plus servo motor precisely controls bag length and feeding — consistent sizes, ±1mm accuracy, less waste.

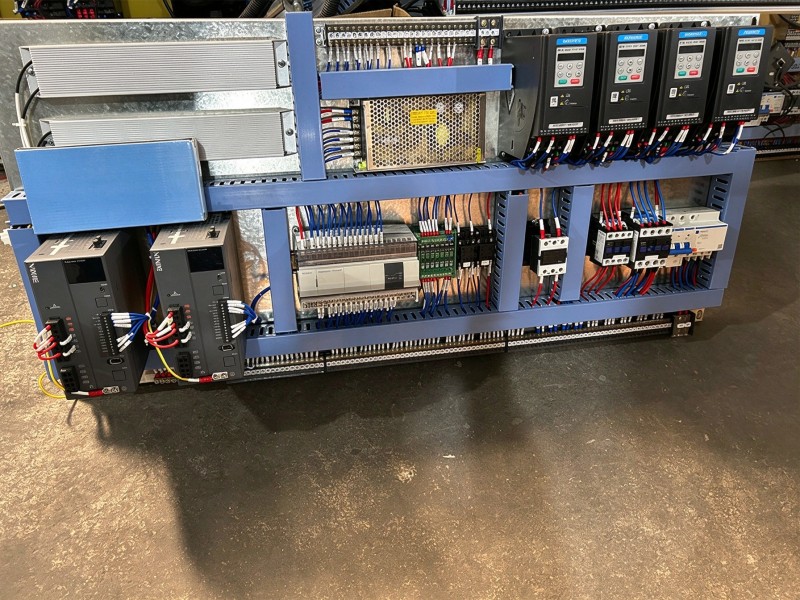

Centralized PLC control sets, displays, records, stores and recalls parameters — one-button recall cuts setup time by about 50%.

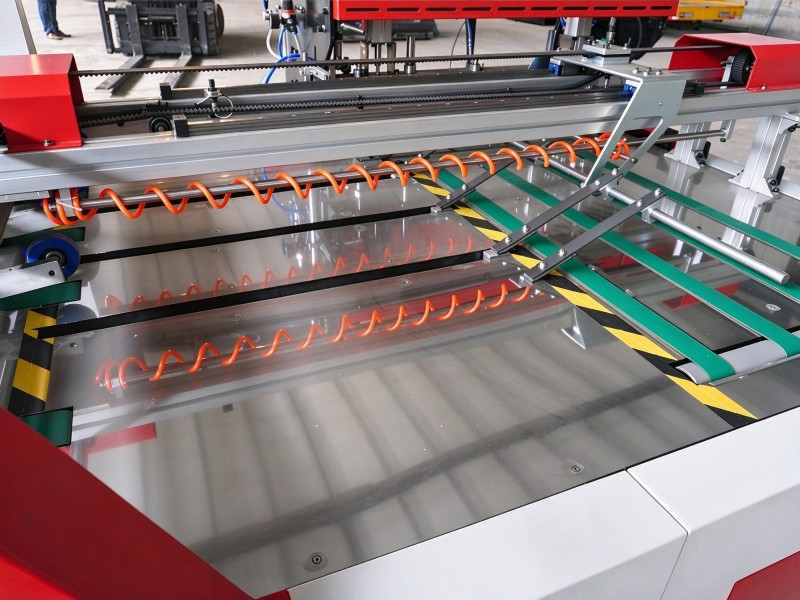

Cutting, sewing and printing speeds adjust automatically in sync — no mismatched speeds causing jams or quality issues.

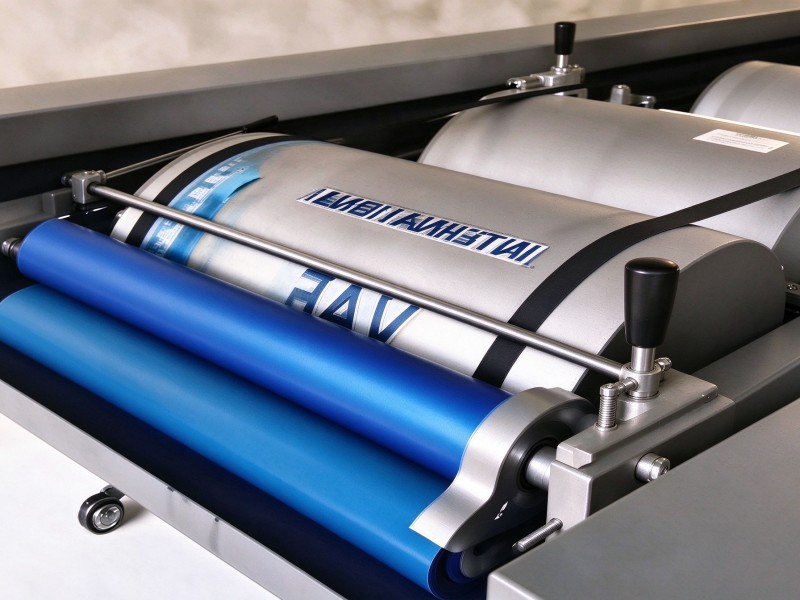

Prints logos, text and barcodes in the same pass — one continuous process from roll to printed, sewn, stacked bag.

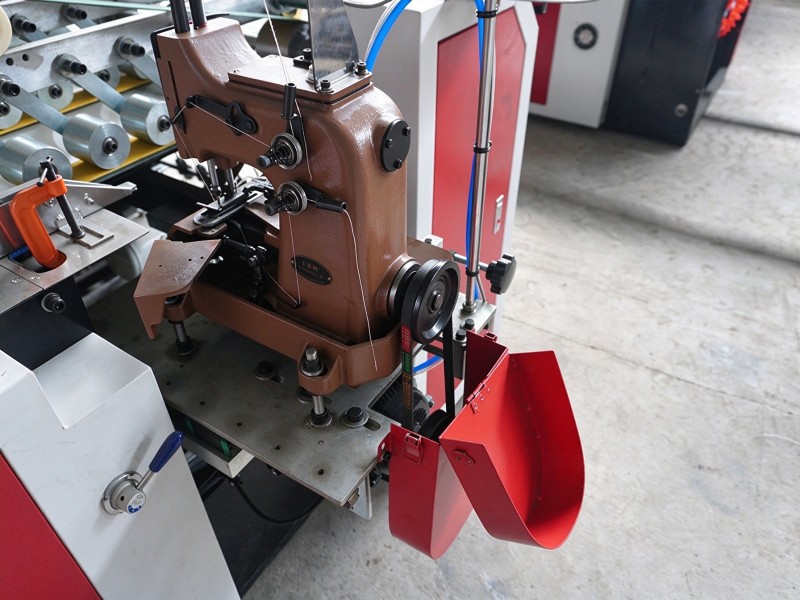

Detects sewing thread breaks instantly and shuts down — prevents bags without bottom stitching, zero defective output.

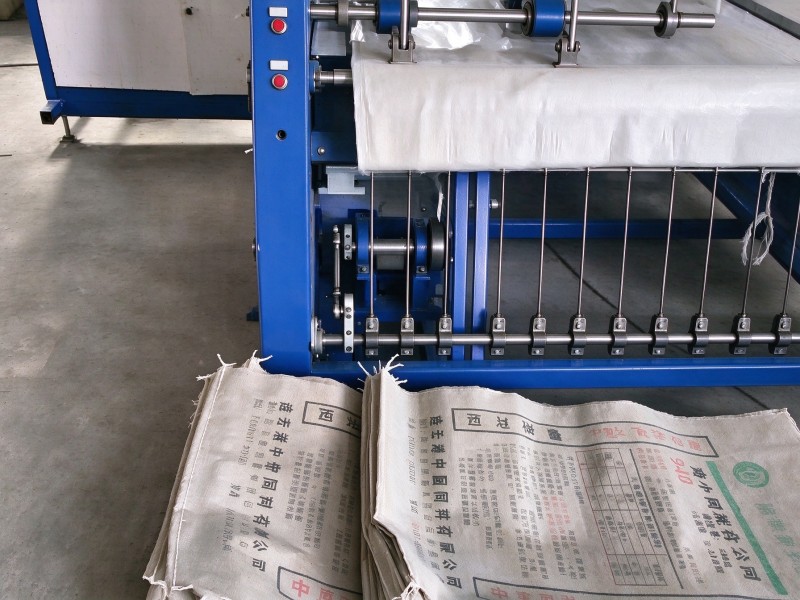

Counts, folds and displaces bags to set positions automatically — 100% accurate count, bags neatly stacked ready for palletizing.

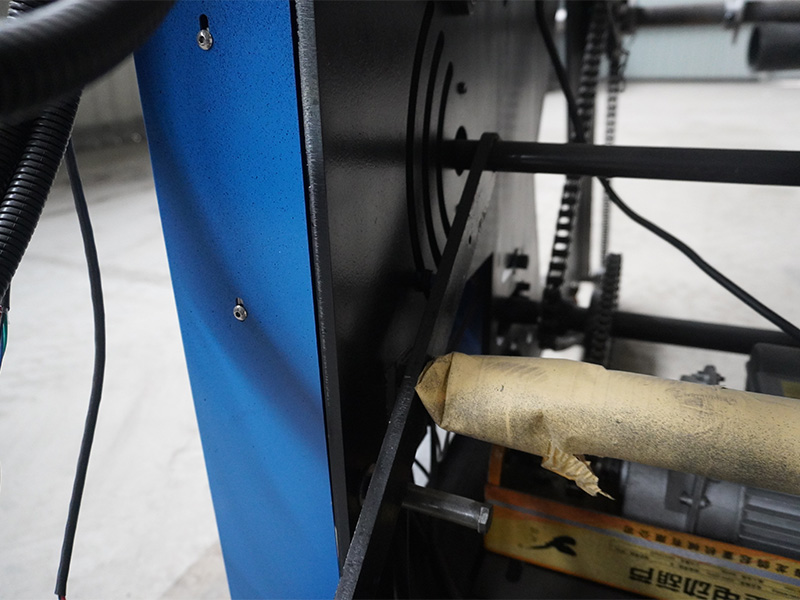

Automatic roll loading removes manual handling — reduces operator fatigue, increases uptime.
Built for real production demands - higher output, lower cost and dependable yarn quality, day after day.
Cut, sew, print and stack in one machine.
Fully synchronized, maximized output.
Smokeless cutting, faster filling.
Color-tracking servo, consistent sizes.
Switch without tools or downtime.
Optional 1-5 color printing and auto ink.
Auto thread-break alarm stops instantly.
Auto counting and folding, neat stacks.
Beyond individual machines, HAOSEN delivers a reliable, integrated packaging production capability for your entire factory. Our engineering team works with you from equipment selection to stable production startup.
This HS008-Ⅲ — >200 patents, 10+ years R&D, annual R&D investment >10% of revenue.
Independent invention, avoided >20 foreign patents, especially 3 important invention patents. No litigation risk for you. Safe to buy, safe to use.
You deal only with HAOSEN — we coordinate extruder, circular loom, laminating, printing, bag making, valve bag making. One interface, 5-6 factories managed.
Complete line delivered together — one inspection, one shipment, one customs clearance. Guarantee 100% success.
| Parameter | Min | Max |
|---|---|---|
| Bag Width | — | 850 mm |
| Bag Length | 400 mm | 1,350 mm |
| Speed | 30 pcs/min | 60 pcs/min |
| Sewing Stitch | 5 mm | 14 mm |
| Printing Colors | 1 color | 5 colors |
| Power | 6 kW | 6 kW |
Equipment is only half the project. HAOSEN provides after-sales support to keep your line running at peak performance.
Our Chinese engineers commission the line on site and train your team before they leave.
5-6 suppliers → different standards → unclear responsibility
One contract → synchronized equipment → one responsible team
Woven bags, laminated woven bags and paper-plastic laminated bags.
Yes — optional 1-5 color printing unit with auto ink system for logos, text and barcodes.
30 to 60 pcs/min, with cutting, sewing and printing fully synchronized.
Smokeless cutting leaves clean edges with no adhesion, eliminating manual opening.
Color-tracking servo control holds length within ±1mm.
Yes — free conversion without tools or downtime.
The machine detects it instantly and stops, preventing bags without stitching.
On-site installation and training, 30-minute remote response, spare parts warehouse in Asia.
