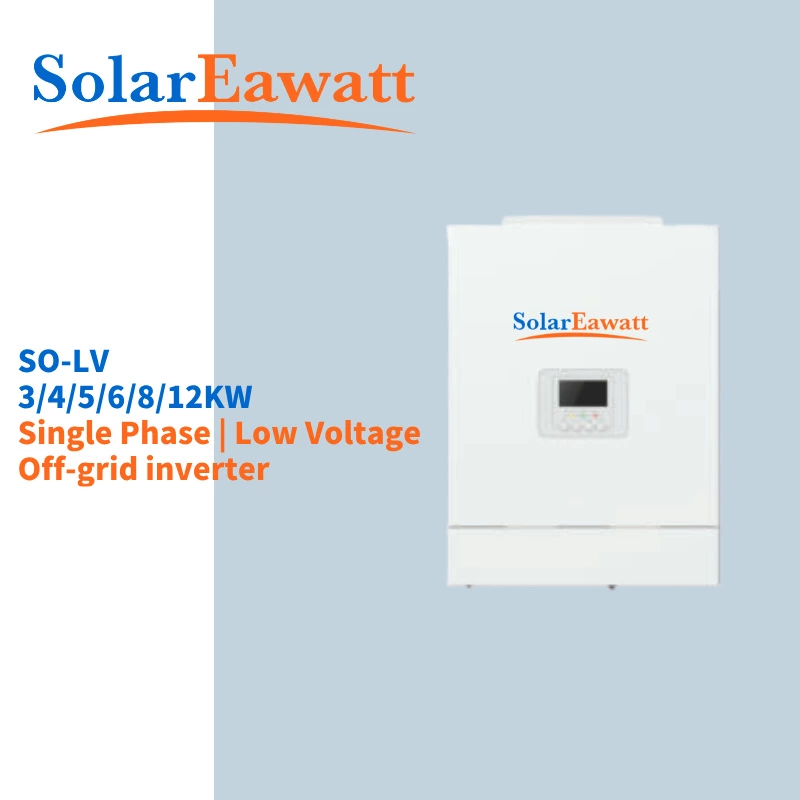

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

SolarEawatt Single Phase Offgrid inverter 3-12KW

  • Silicon carbide technology 98% efficiency.
  •  Dual MPPT, maximum 600V, 18A.
  • <10ms on/off grid switching.
  • 6 units in parallel.
  • IP65. Noise <25dB.
  • ATS supports GEN.
  • Support APP/WIFI/4G/Bluetooth.
  • Dual independent battery branches, support new and old battery connection.
  • 5/10 years warranty optional.
  • Complete certificates.
Enquiry Download
SolarEawatt Single Phase Offgrid inverter 3-12KW LV
SolarEawatt Single Phase Offgrid inverter 3-12KW LV
SolarEawatt Single Phase Offgrid inverter 3-12KW LV
SolarEawatt Single Phase Offgrid inverter 3-12KW LV
SolarEawatt Single Phase Offgrid inverter 3-12KW LV
SolarEawatt Single Phase Offgrid inverter 3-12KW LV

Product Introduction

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

Self-owned cloud platform & Self-developed App

High efficiency in after-sale service

OTA upgrade and remote monitoring

Support PC+ phone control

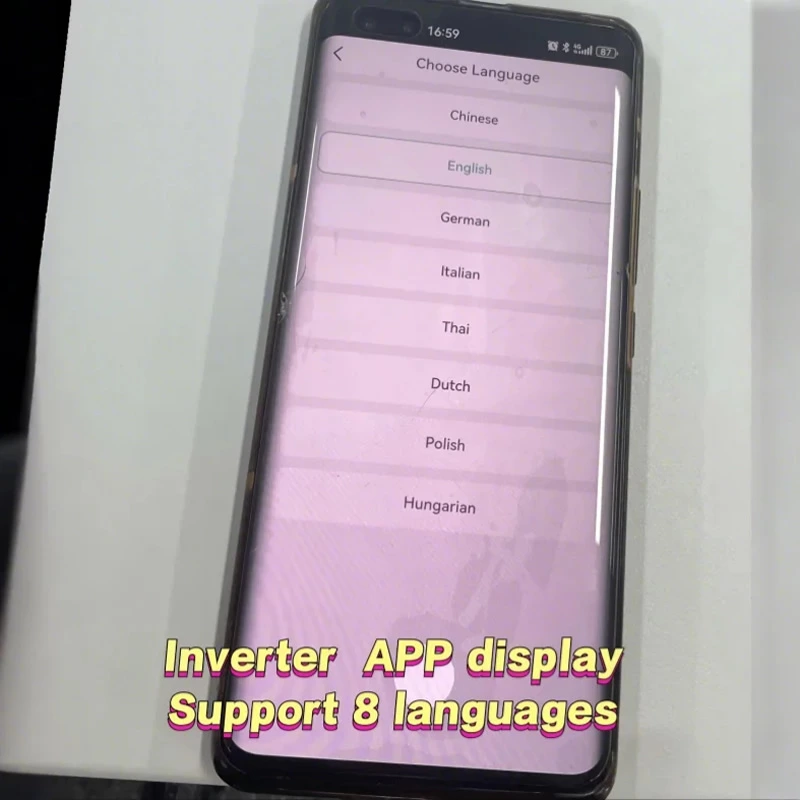

Support 8 languages, can be more!

Chinese
English
German
Italian
Thai
Polish
hungarian
Dutch



SolarEawatt Single Phase Offgrid inverter 3-12KW LV

Silicon Carbide Technology

Higher efficiency 0.5-1%
Smaller in size & weight
Better heat dissipation
Longer lifespan
Derating more than 3000 meters latitude

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

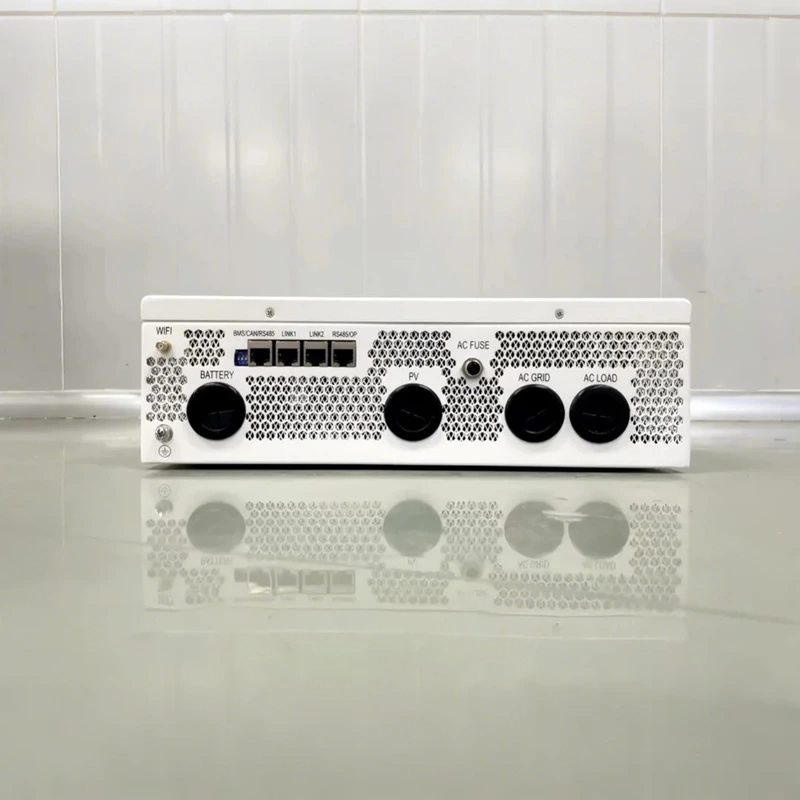

2 independent battery ports

Easier in battery capacity expansion:

Support mixture usage of new battery and old battery of different voltage/current/BMS protocols

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

Inverter power expansion via software upgrade

Reduce the overall cost of system upgrades.
Save system upgrade time.
Improve system upgrade performance and flexibility.

SolarEawatt Single Phase Offgrid inverter 3-12KW LV

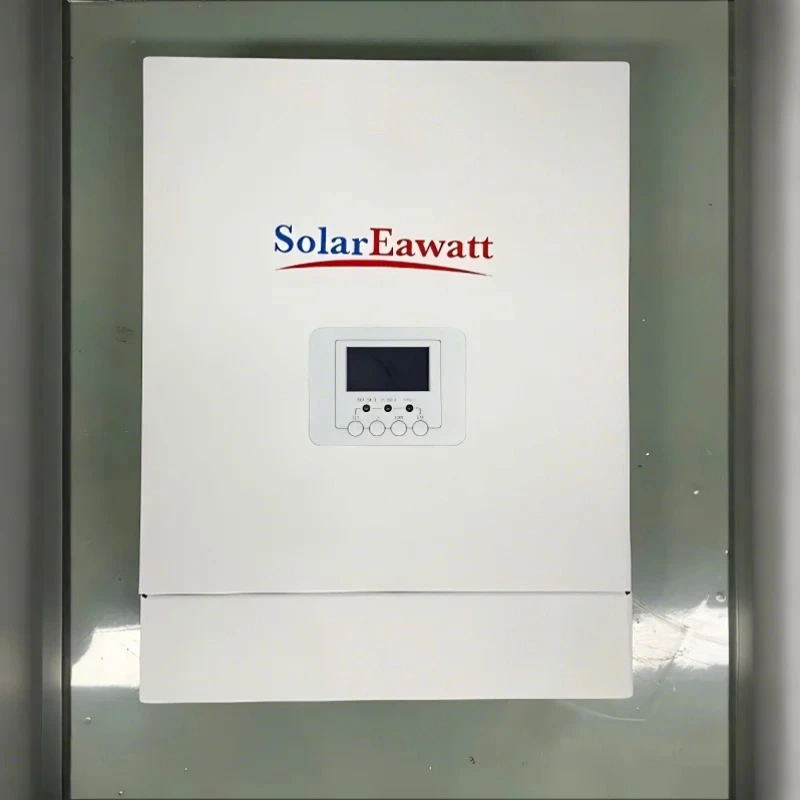

No LCD/LED display designfor Longer inverter lifespanand lower after-sale cost

warranty 5/10year option

Our solution for visible display

Standard solution: APP

monitoringOptional solution: Paid

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.



Model name SolarEawatt 3000SO SolarEawatt 4000SO SolarEawatt 5000SO SolarEawatt 6000SO SolarEawatt 8000SO SolarEawatt 10000SO SolarEawatt 12000SO
Off-grid Output
Max. Output Power 3kVA 4kVA 5kVA 6kVA 8kVA 10kVA 12kVA
Nominal Output Voltage 220Vac
Output Voltage Range 220Vac±10%
Nominal Output Current 13.6A 18.2A 22.7A 27.2A 36.4A 45.4A 54.4A
Peak Power & Duration 4.5kVA(10s) 6kVA(10s) 8kVA(10s) 8kVA(10s) 12kVA(10s) 16kVA(10s) 16kVA(10s)
Grid Parameter
Max. AC Input Current 60A 100A
Norminal AC Voltage 220Vac
AC Voitage Range 176-264V
Nominal AC Frequency 50/60Hz
THDi <3%
Battery Parameter
Battery Type                                                    Lithium-ion/Lead-Acid
Nominal Battery Voltage 48V/51.2V
Battery Voltage Range 42-58V
Max.Charging Voltage 58V
Charging Curve 3 stages
Max. Charging Current 60A 80A 100A 200A
Max. Discharging Current 60A 80A 100A 120A 200A
PV Input
Max. DC Input Power 6600W 7000W 8000W 9000W 14000W 16000W 18000W
Starting Voltage 120V
Input Voltage Range 100-500V
MPPT Voltage Range 100-500V
Full Load MPPT
Voltage Range		 350-450V 320-500V
Numbers of MPPT 2  4
Max. Input String Per MPPT 1
Nominal Input Voltage 360V
Max. DC Input Current 13A/13A 14A/14A
Max. Short-circuit Current 18A/18A
Efficiency
European Efficiency 97.2% 97.3% 97.2%    97.3%
Max.Efficiency 97.4% 97.5% 97.4%    97.5%
Max. Battery Charging/
Discharging Efficiency		 94.00%
General Data
Size(W*H*D) 360mm*470mm*114mm 480mm*500mm*200mm
Weight 14kg 28kg
Noise ＜45dB(A) ＜45dB(A)
Operating
Temperature Range		 -25℃~60℃(> 45℃ power-down）
Cooling Method Air cooling
Parallel Units 6  1
Warranty 5 years
Ingress Protection Grade IP20
Monitoring LCD/LED/APP/WIFI/Bluetooth
Communication Port CAN+RS485
Protection Reverse Polarity Protection;Over Current/Voltage Protection;
AC Short-circuit Protection;PV Ground Fault Monitoring;Over Temperature Protection
Certification
CE_LVD EN 62109-2:2011  EN 62109-1:2010
CE_EMC EN61000-6-1, EN61000-6-2
