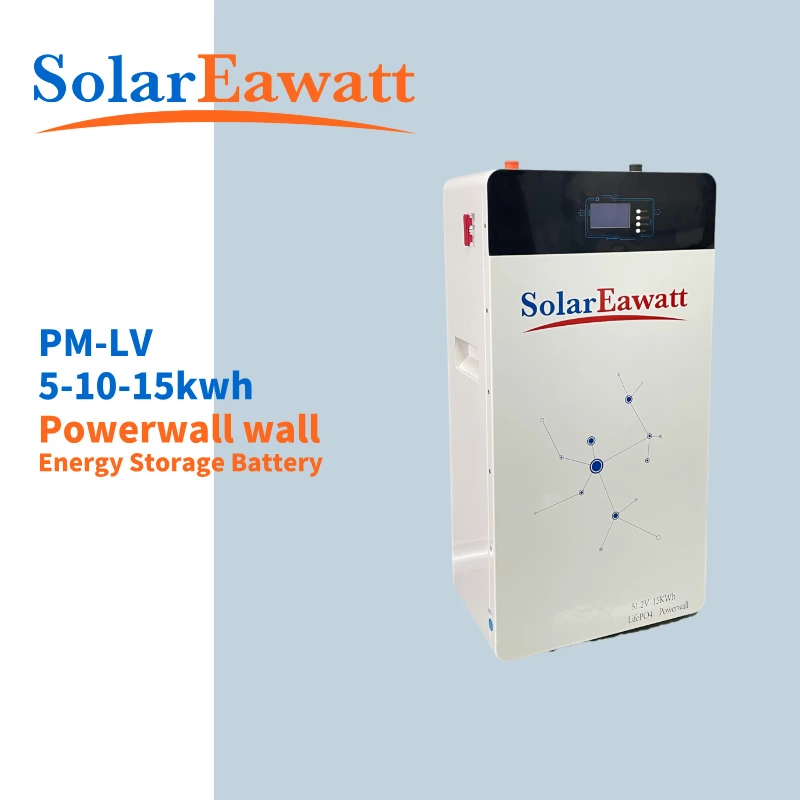

SolarEawatt 5/10/15KWh PowerWall
|
|||
|---|---|---|---|
| Model Capacity | PM5ESS-LV | PM10ESS-LV | PM15ESS-LV |
| Battery type | LiFePo4 | ||
| Capacity Energy | 5KWh | 10KWh | 15KWh |
| Capacity(Ah) | 100Ah | 200Ah | 295Ah |
| Battery pack type | 16SIP | 16S1P | 16S1P |
| Suggested soC | 10-100% | ||
| Nominal Voltage | 51.2V | ||
| Operation Voltage | 44.8-57.6V | ||
| Max Charging/DischargingCurrent | 50A | 100A | 150A |
| BMS | Robust multi point monitoring BMS pre installed |
||
| Scalable(Parallel function) | Yes, maximum 16 packs | ||
| Life Cycling(0.5C&25℃) | 6000 cycles@ 0.5C;80% DOD | ||
| Operation Temperature | Chrage: 0~60°C, Dischrage: -30~60°C | ||
| Warranty | 5 years Standard | ||
| Storage Temperature | -30-60℃ | ||
| Net Weight | 50kg | 90kg | 123kg |
| Gross Weight | 62kg | 102kg | 135kg |
| Dimensions | 645*385*165mm | 715*415*290mm | 813*415*290mm |
| Packing Size | 725*460*360mm | 790*490*450mm | 890*510*455mm |
| Certifications | MSDS,UN38.3,CE,IEC62619(Cell),UL(Cell) | ||
| IP Grade | P21 | ||
| Communication | RS232,RS485,CAN | ||
